FOR SALE 1970 340 with six pack

coloradohill

Member
Joined
Feb 21, 2022
Messages
15
Reaction score
2
Location
Northern CO.
Rating - 0%
0   0   0
Contact seller
I have a 1970 340 engine with 680 miles on it since being rebuilt. This was professionally built by a well-known stock/super stock NHRA builder.
It is a solid roller cam with Harland Sharp rockers. The one and ONLY issue with this engine is we made the decision (which I regret now) to not bush the lifter bores.
At idle, the oil pressure leaks down which is typical from some solid rollers from what I read. I ran this for 680 miles in the last two years. I would keep it off idle because of this issue.

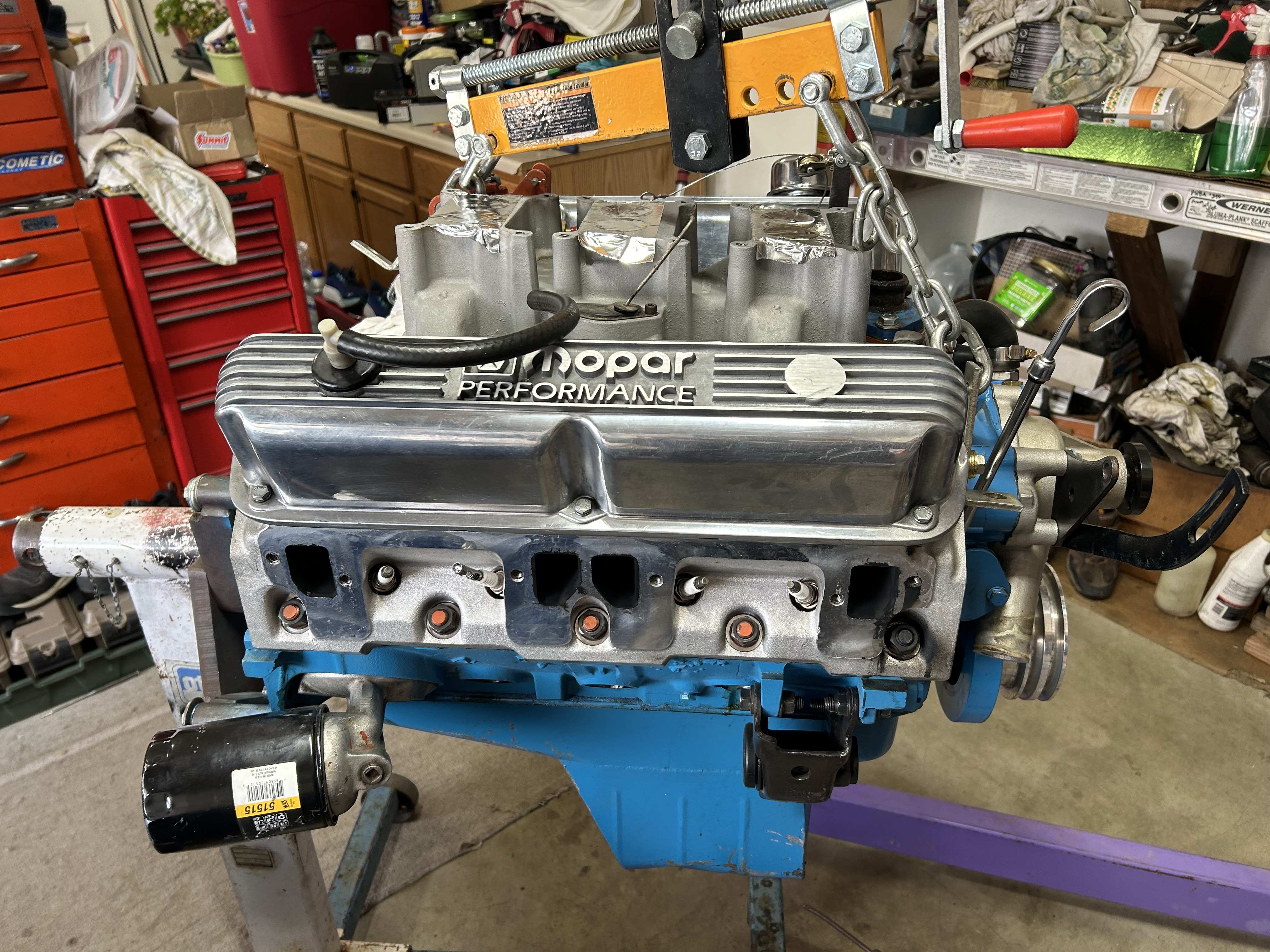

I removed this engine a couple of weeks ago and have a few videos of it running. Again, zero issues above idle.

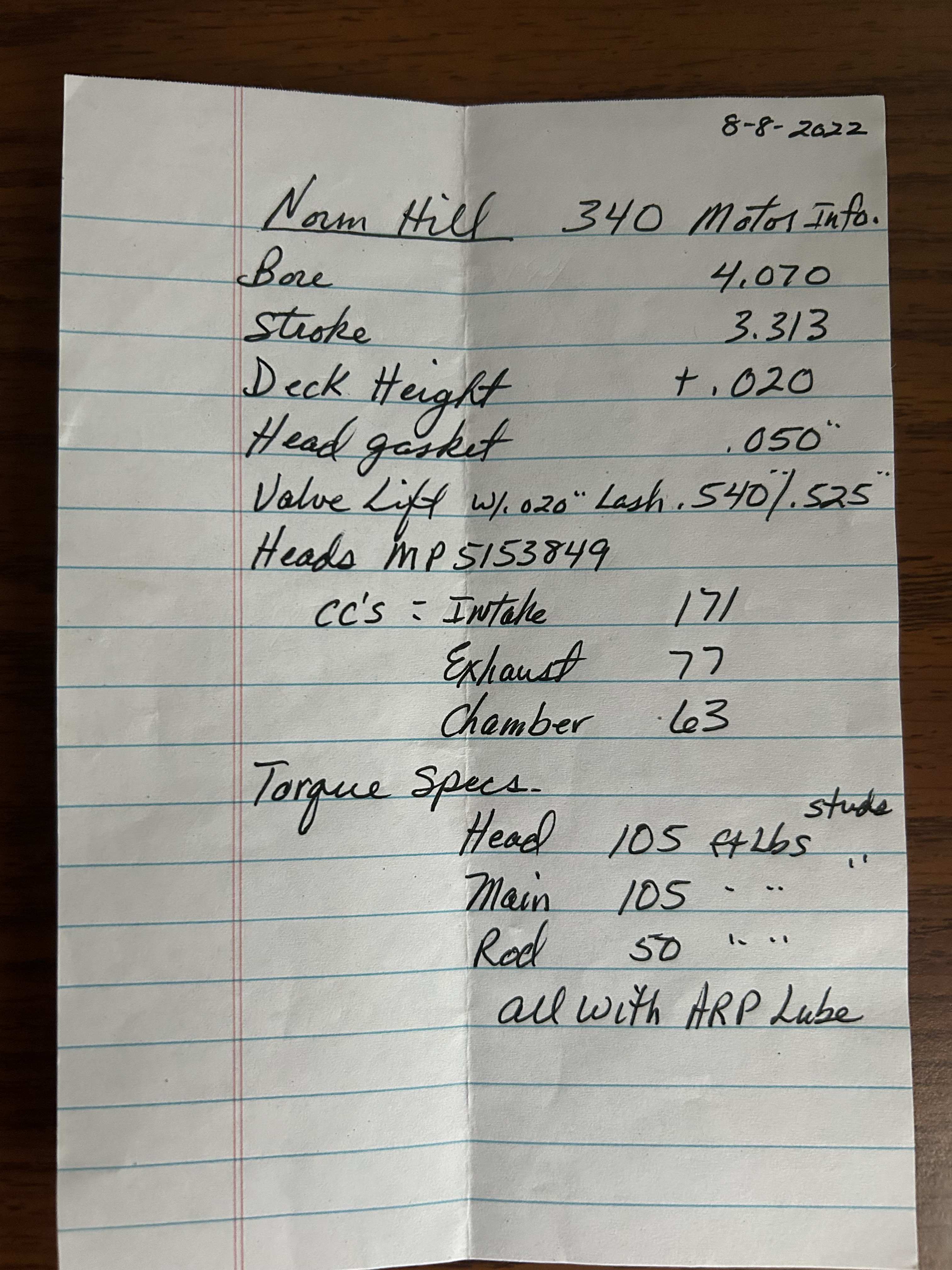

Engine specs.
1970 340 bore is .030 over. stock forged crank .010 mains .020 rods rotating assembly was balanced Approximately 11.3:1 CR.
here is the link of the short block sale [SOLD] - new 340 short block

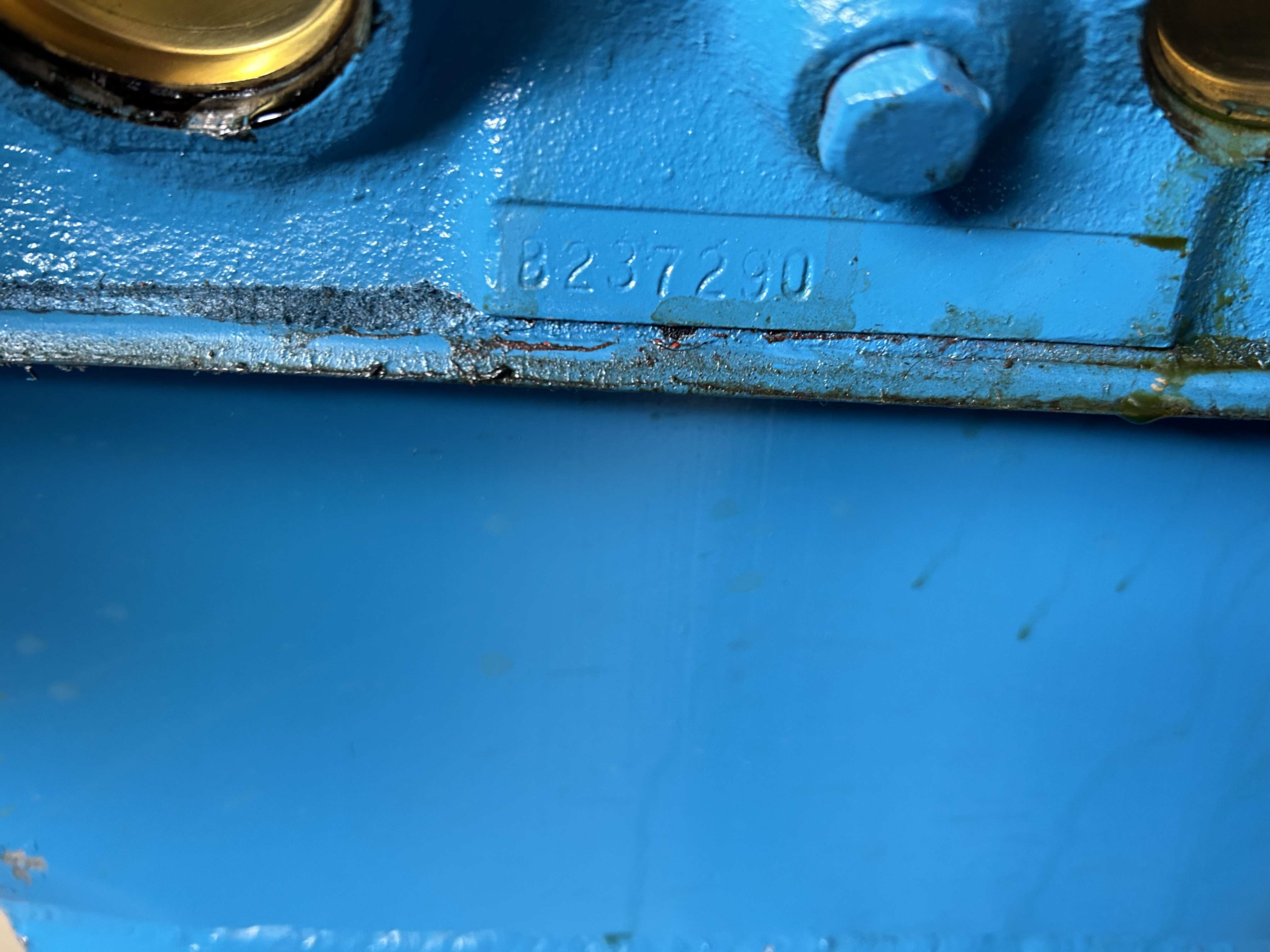

The engine was disassembled checked, hot tanked and reassembled without the oil crossover tube. Main and head studs were retained. VIN B237290

Edelbrock heads #2467 (MP 5153849) new from Mancini Racing (I had these heads checked over by a machinist) they were resurfaced for Cometic gaskets, guides honed, valves and seats cleaned up before being run.

Comp Cams solid roller 20-000-111 specs in the photos. This was a custom grind for my car and altitude (not correct for everyone).
Crane Cams Ultra Pro solid roller lifters #69550-16
Harland Sharp Rockers #S7002K (these are designed for these heads)
Milodon 8 qt. pan with windage tray.

This engine made 400HP / 408 ft.lbs. TQ. with an Airgap intake and a Holley 650 carb.

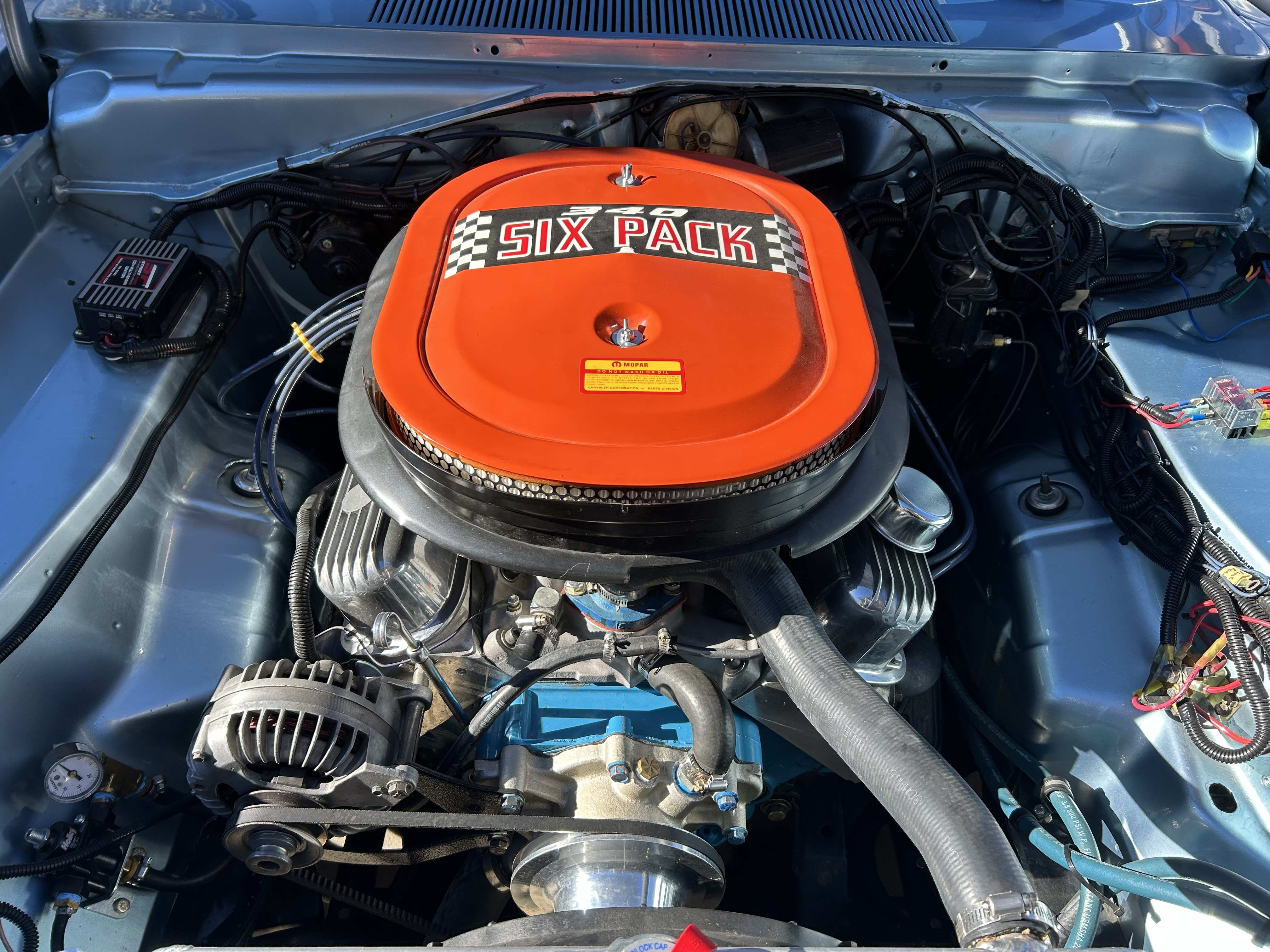

The six-pack setup is complete and included at this time. It is a mechanical carb set. The carbs were rebuilt and only run with ethanol free gas. The air filter is new (zero miles) the air cleaner assembly is in very nice condition.

I will be keeping the pulleys and valve covers. I do have other valve covers to install if needed. The water pump is a high quality (don't remember brand) and was new at the time.

I am willing to crate and ship through Fastenal. I will also be willing to sell in Major part groups eventually. For now I am going to see what the interest is as a whole assembly. It would be fairly easy to solve the idle oil pressure issue with a cam / lifter swap.
I have most of the receipts from the build.

Thanks for reading the lengthy post. Please pm with questions so we stay out of trouble with the mods.

I have over 10k in the complete engine with the six pack set up. I just sold a vacuum six pack set up for 3,800. (we all know how much these prices have gone up recently).
I am asking 8,000 plus shipping from 80534



View attachment 133231













marksmopars

Well-Known Member
Joined
Dec 2, 2011
Messages
64
Reaction score
60
Rating - 0%
0   0   0
Not exactly sure what you have here but stock six pack carburetors are fed fuel from the passenger side, fyi. Maybe someone with more knowledge know what you have. I think the carburetors have numbers on them to identify exactly what they are, perhaps you could post what those numbers are. Thanks


coloradohill

Member
Joined
Feb 21, 2022
Messages
15
Reaction score
2
Location
Northern CO.
Rating - 0%
0   0   0
Not exactly sure what you have here but stock six pack carburetors are fed fuel from the passenger side, fyi. Maybe someone with more knowledge know what you have. I think the carburetors have numbers on them to identify exactly what they are, perhaps you could post what those numbers are. Thanks
These are the over the counter carbs (Direct Connection)that places like Mr. NORMS would install. They are mechanical and I had a vacuum setup also.
I prefer the mechanical ones so I sold the vacuum setup.
The only reason I’m letting these go is I have a fresh 418 with a tunnel ram going in. I can post numbers if someone has a genuine interest.
If I don’t sell this it’s ok. I just don’t need it and could use the room.
