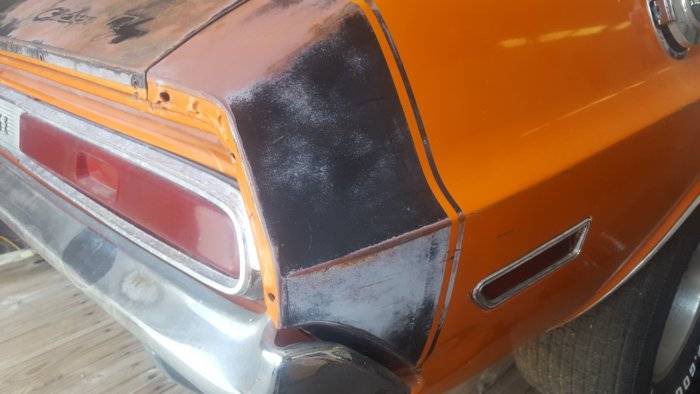

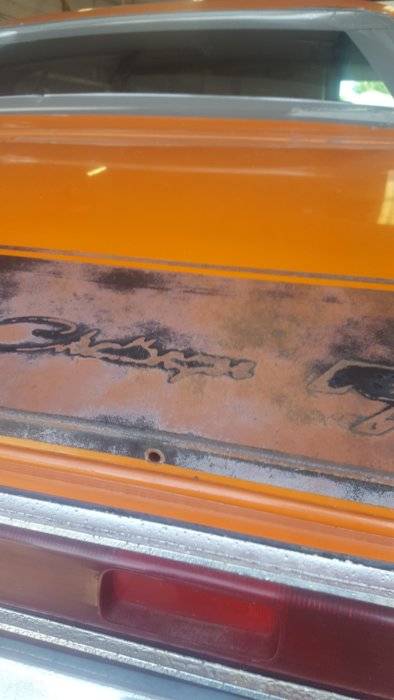

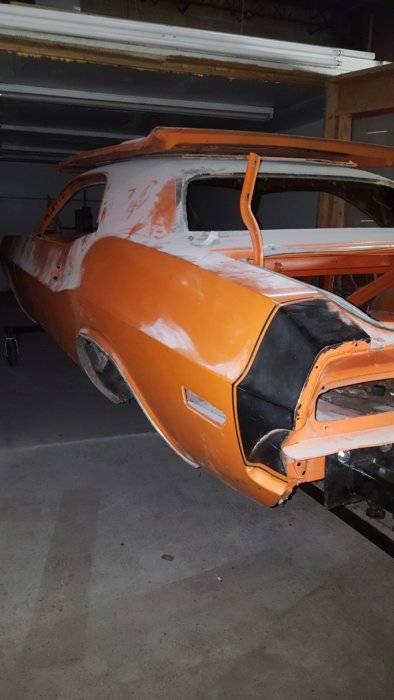

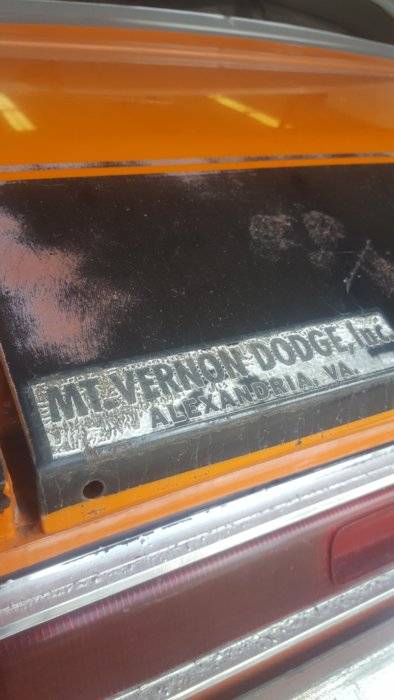

i have a 70 Challenger that I preparing for paint, the car had mostly original paint but I have been told by a Mopar aficionado that the dimensions of the tail stripes are incorrect on the car based on his experience. Here is the tail stripe that was on my car...
1970 Challenger R/T tail stripes
- Thread starter DANSTERZ
- Start date
RJHJR
Well-Known Member
- Joined
- Oct 14, 2013
- Messages
- 255
- Reaction score
- 105
Correct.
The blue car to the left has a white bee stripe just like the diagram.
Stripe goes down first, then car color.
The blue car to the left has a white bee stripe just like the diagram.
Stripe goes down first, then car color.
NixDad
Well-Known Member

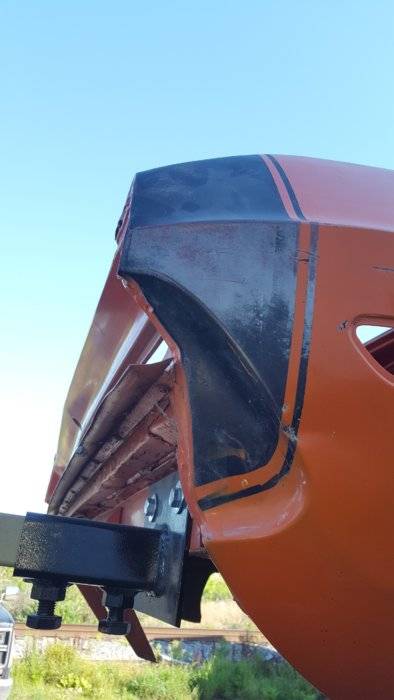

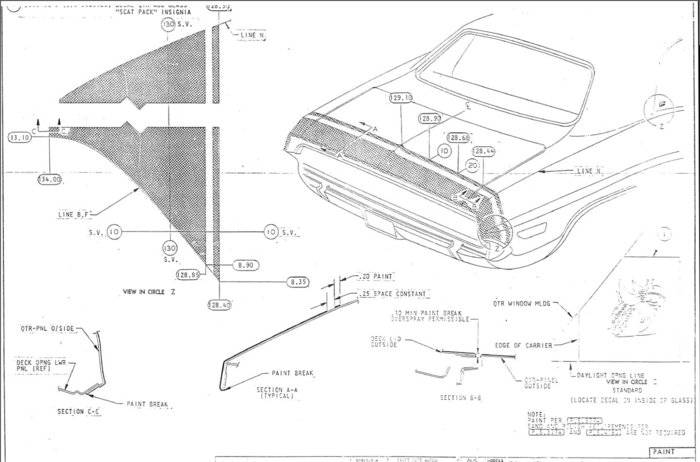

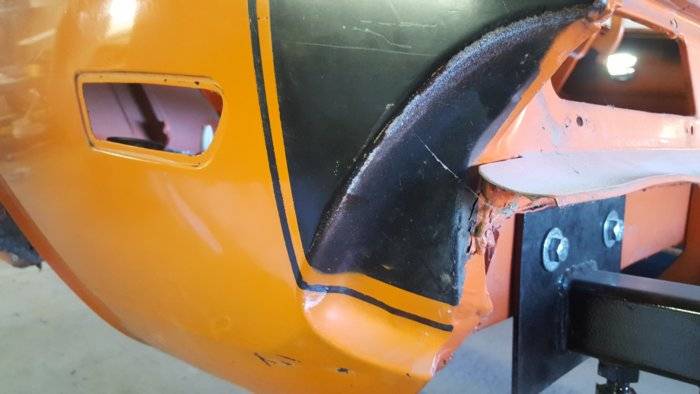

What you are showing in your photo is accurate, although not what the engineers told the factory to do. The drawing shows what they wanted, but I have seen many (including my own) that have the stripe continued into the recess.
Personally, i think the ones that are cut off at the ends look odd.
My guess is there was a tape 'mask' that the laid on the car and it was longer than the stripe was supposed to be, so instead of trimming it off the line workers just wrapped it under.
Remember that the stripe color was painted first, taped off, then the rest of the body color was painted afterwards.
By the way, i think my car may have come from the same dealer in Alexandria. Do you know anything about the dealer?
Personally, i think the ones that are cut off at the ends look odd.
My guess is there was a tape 'mask' that the laid on the car and it was longer than the stripe was supposed to be, so instead of trimming it off the line workers just wrapped it under.
Remember that the stripe color was painted first, taped off, then the rest of the body color was painted afterwards.
By the way, i think my car may have come from the same dealer in Alexandria. Do you know anything about the dealer?
R4Sedan
Well-Known Member
Don't you know the problem is everyone now a day's is Mopar aficionado/Expert. Especially when it comes to E-bodies. You think them guy's on the line really followed handouts. I've had 11 '70 Challengers and 3 of them have been unmolested cars. And they were all different with lots of problems right from the factory. BTW looks like a nice car your working on.
