1970 Cuda Heater Control Valve

[ssdanny69]

Newbie on board saying hello and needing help. Currently working on the heating and a/c portion of the resto and was wondering where the heater control valve is mounted. I have a 340 with air and bought an aftermarket heater control valve that is "gold" in color and id not come with any additonal brackers. I was able to find the control cable from Year One.

The valve that is sold by classicautoair looks nothing like what I recently purchased. Any information and related pics is greatly appreciated.



[74 challenger]

i only know on my 74 challenger its under the hood on the passenger back side , look up thead on heater/ac cable someone put a pic up for me dealing with the cable.let me know if you still need help. welcome to the site suprised no one answered you.



[moparleo]

heater control valve

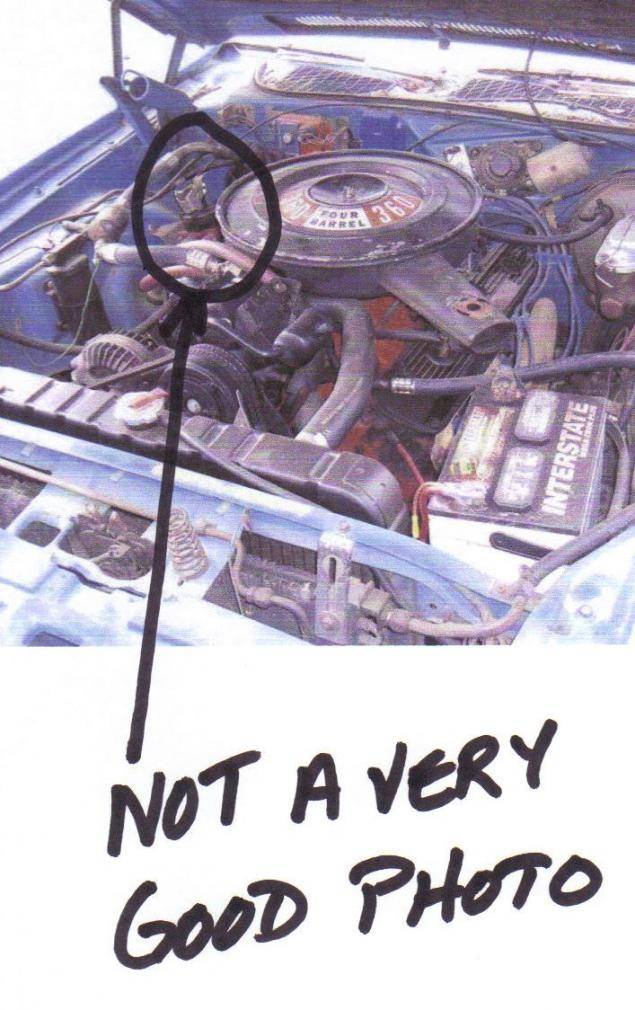

The 70 heater control valve is black plastic on top and red ceramic on bottom piece. It is a 2 piece part. It uses a bracket that mounts to the pass. fender apron close to the firewall. The inner fender has dimples where the braket mounts. You may have to drill 2 holes if they are not there.



[cv70chall]

Does anyone have a layout of how the valve works? I need to know what position is OPEN and what is CLOSED. Thanks-



[challenger6pak]

To the firewall is open and to the front grille is closed IIRC. We never use heat in South Florida.
