70 barracuda floor console installation diagrams.

[Wish it started]

I'm wishing to convert automatic column shift to a floor console. I have the console, shifter and now bracket but can't find a diagram or instructions on where to weld to tunnel, shifter cut location etc.. can someone direct me to share information on what is required. Assistance is greatly appreciated and valued.



[Challenger RTA]

There is no Diagram that I know of. There is a measurements that I posted awhile back. Look to see it. I'll post a link if I find it.



[Challenger RTA]

Found it. Easy search. Console. Use the back measurement to place the rear mount. Use the console to place the mounts where it works best. Or make a template from the bottom of the console. This is a start for the console. Picture request- Auto Floor shifter linkages and location?!?!



[Challenger RTA]

BINGO! Found something. Learn to use the search. A lot of members post a lot of things here for our benefit. They are great!
Console bracket mounting location
One other ting the 70 is one year for some parts,If you didn't know. Ask for members help on that. I know something but others know it all



[EW1BH27]

Here’s the thread with those measurements.

• ► Auto console brackets placement converting from column to floor shift



[Wish it started]

Here’s the thread with those measurements.

• ► Auto console brackets placement converting from column to floor shift

Thank you for your wisdom and time to provide. This forum is full of kind folks like you and Challenger RTA. Our confidence is much improved now than before because of everyone.



[EW1BH27]

You didn't mention what year you're working on or if you have the correct steering column without the "PRNDL" on it. If you weren't aware there's collars available to change column steering columns to floor shift steering columns. Vans Auto is one place that has them.



[Wish it started]

It's a 70 and b/c of you all I ordered the above today...



[EW1BH27]

The first 4 videos are invaluable in case you haven't seen them,

https://www.youtube.com/results?search_query=cuda+cody+steering+column



[Wish it started]

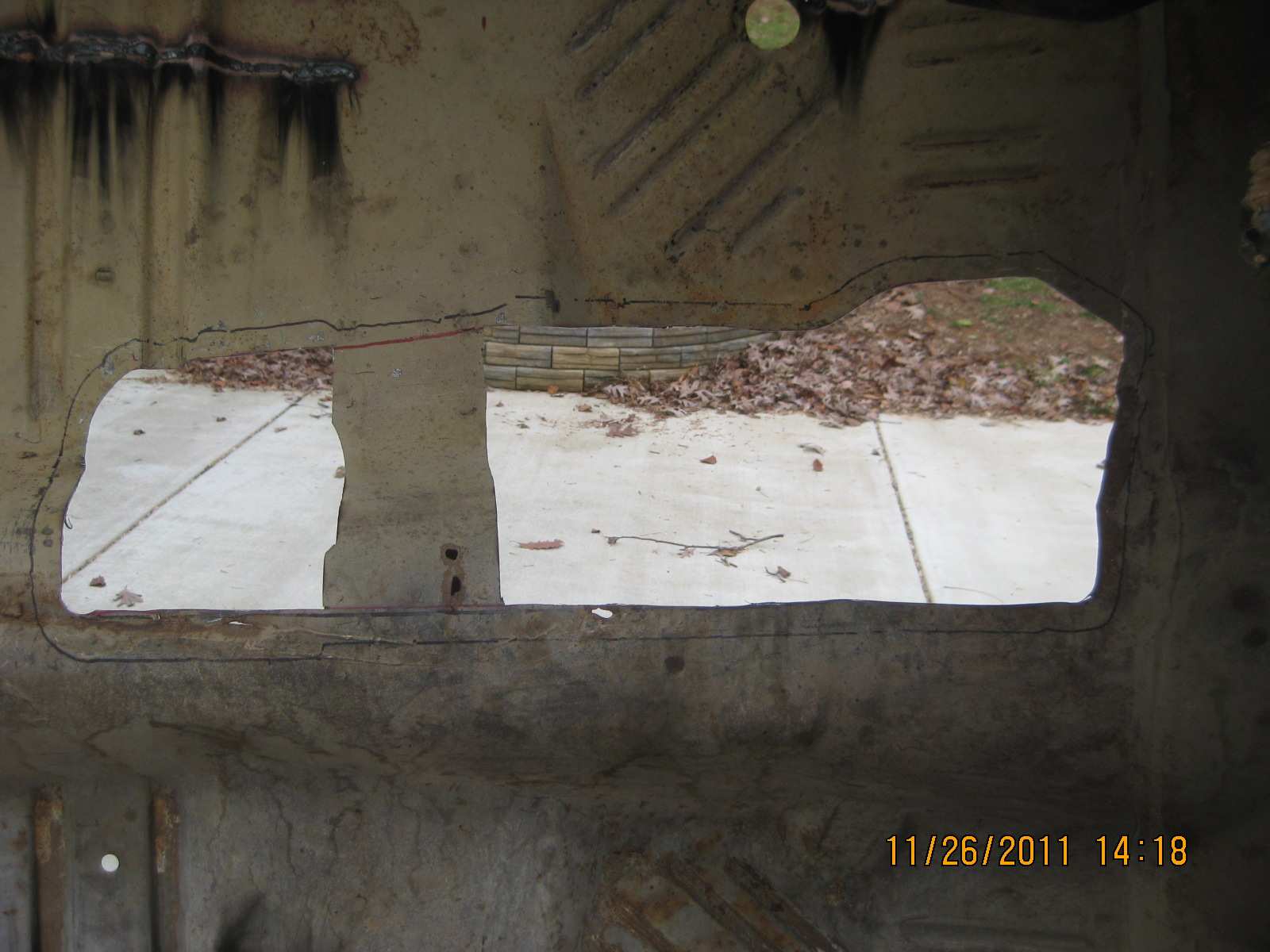

Hello my friends, the floor pan holes have been filled in. Today's goal is to cut the round access point for the floor shifter linkage below and finish grinding off the pan junk ending with fresh painting of the pan.

We're then needing to move to removing the steering column. Thanks to the wisdom and kindness of this forum members, I have enough information to jump in although I know as a virgin fiddler it will not be easy.

My question is ... so when I remove the column and remove the shifter selector/indicator, what replaces that gap on the column? Is there a specific name for this "dummy column section" for me to try and find?



[Challenger RTA]

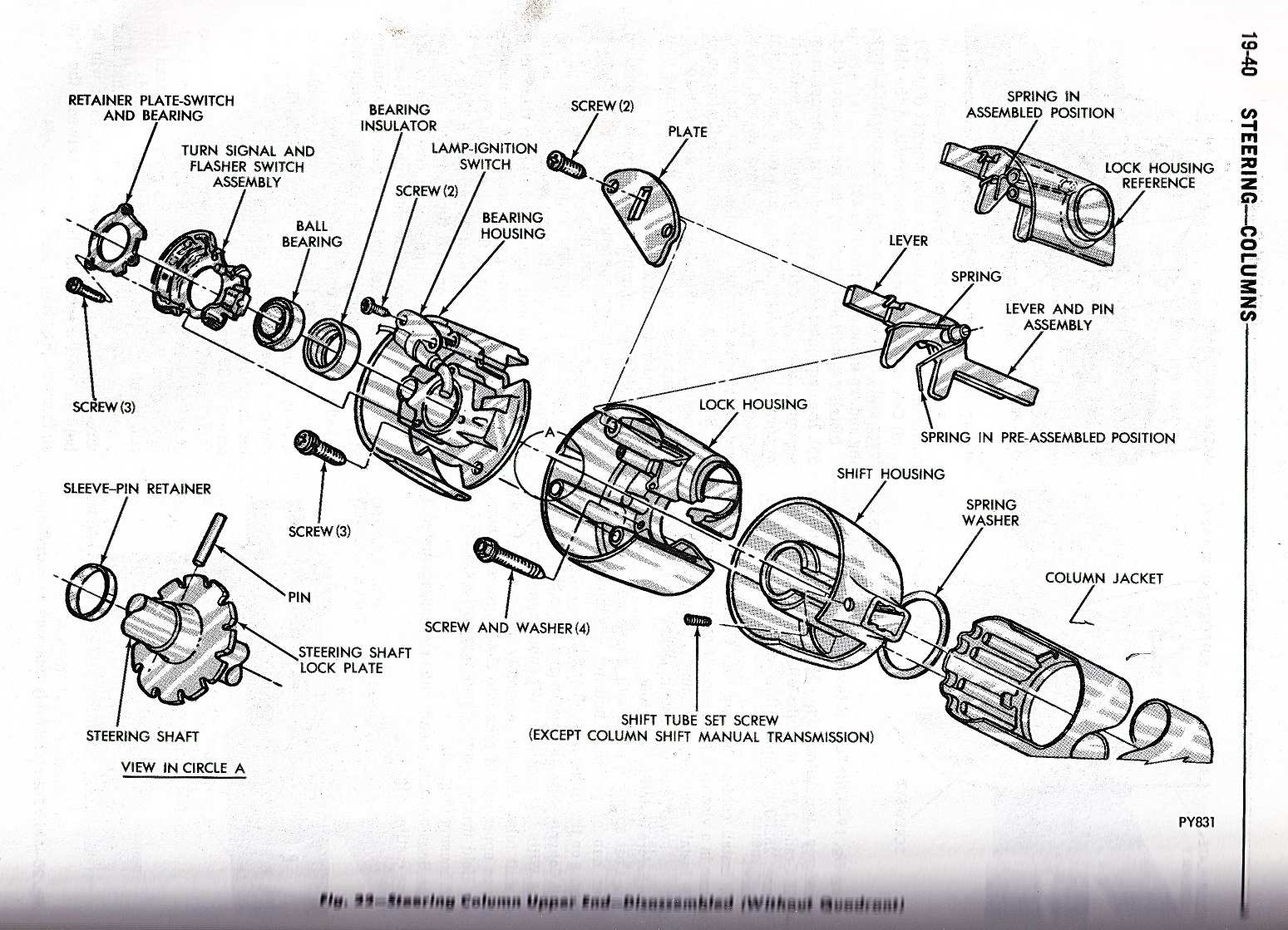

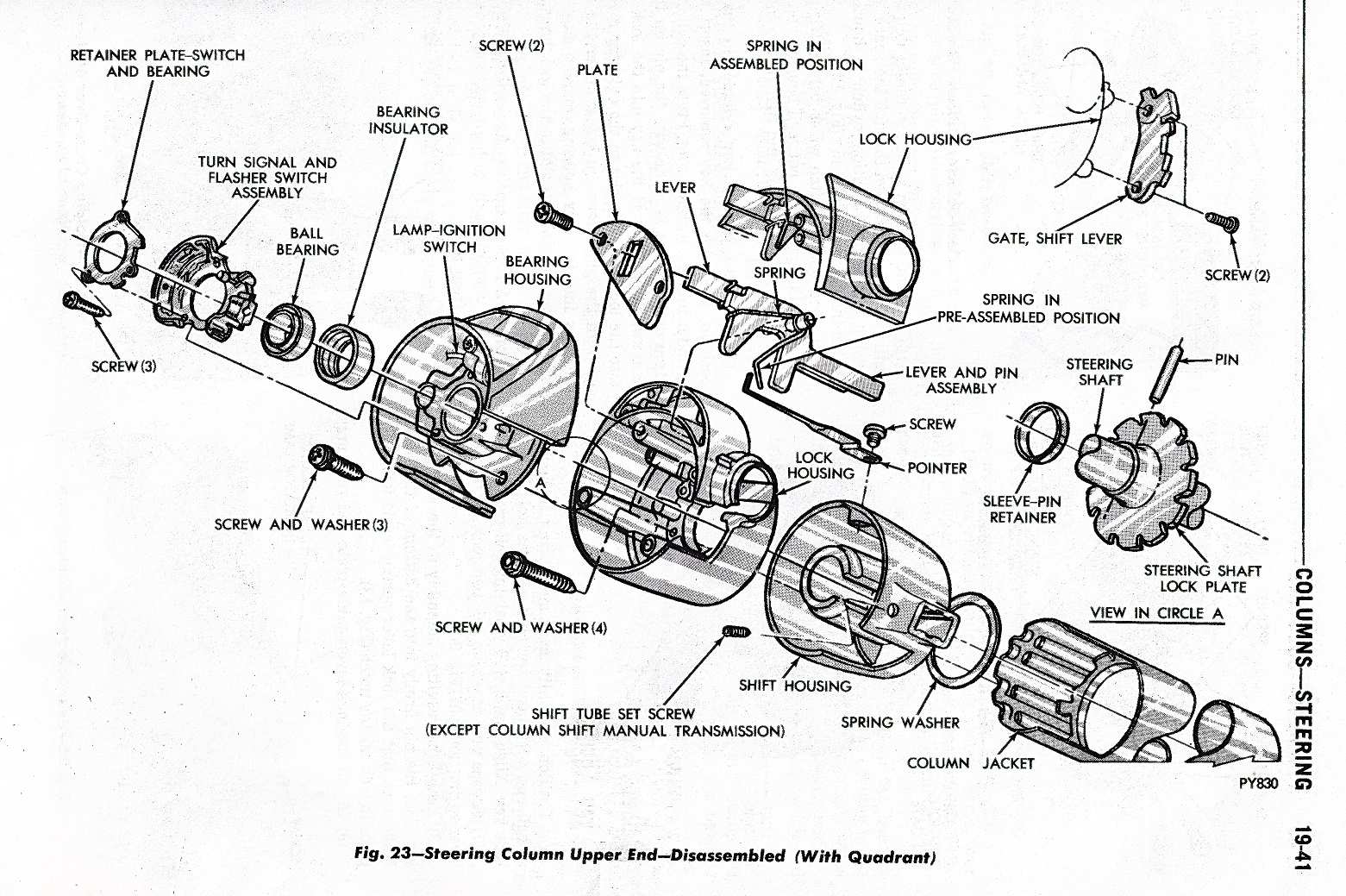

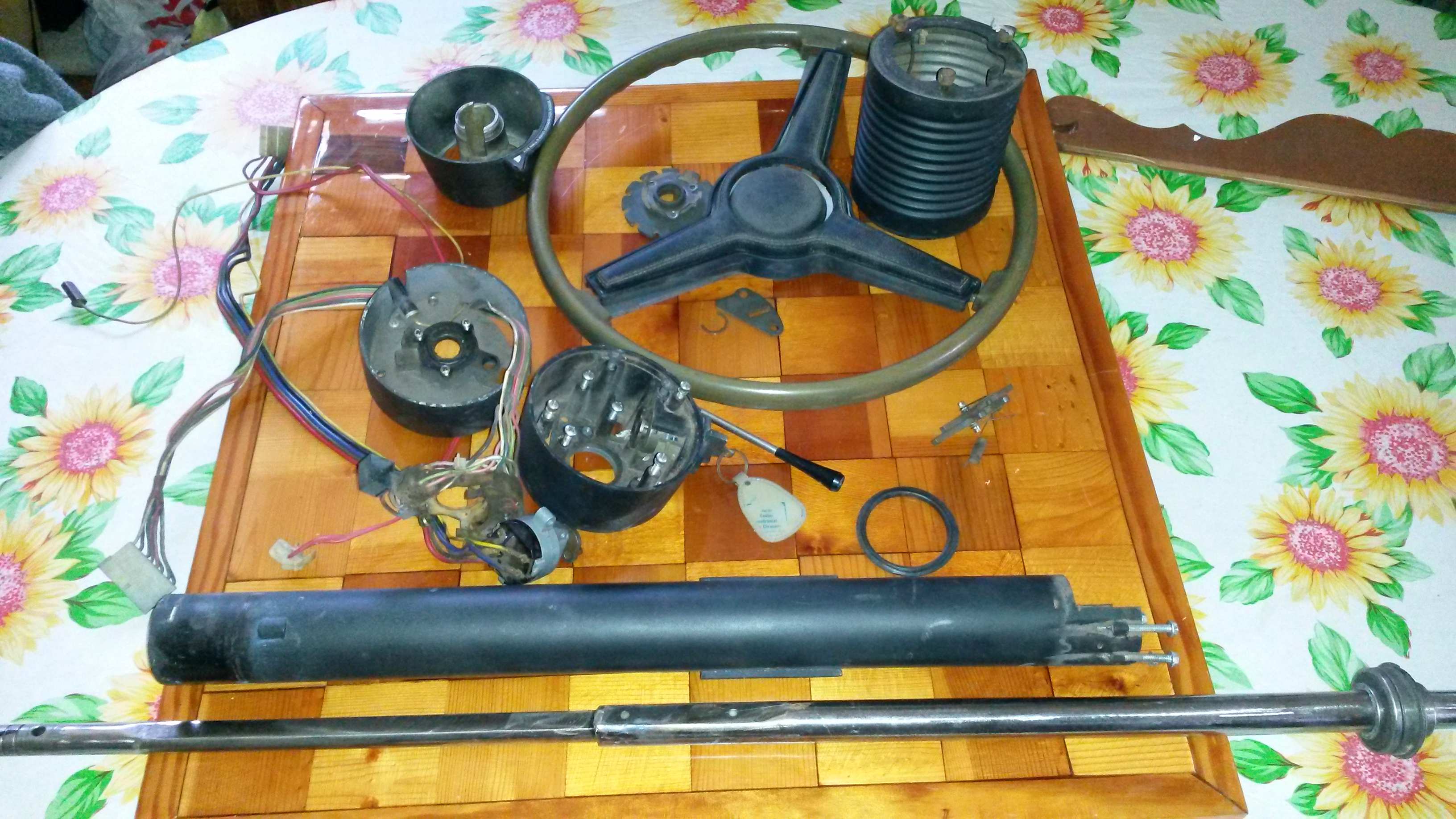

Column collar. Here are the parts when it is broke down.



[EW1BH27]

My question is ... so when I remove the column and remove the shifter selector/indicator, what replaces that gap on the column? Is there a specific name for this "dummy column section" for me to try and find?

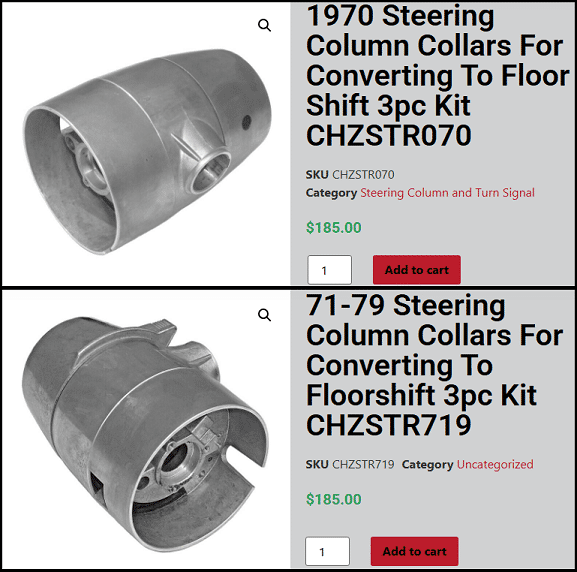

I'm confused about what "gap". If you bought the 3 piece CHZSTR070 there should be no gap to speak of.



[larry4406]

When you converted your floor pan by adding the trans hump, I hope you kept the section of the original floor to keep the cross member covered. Otherwise road debris gets in there.



[Cuda Hunter]

The above videos from youtube originated at ebodies . org
