Help with letter in head casting number

Dreaser

New Member
Joined
Feb 27, 2021
Messages
4
Reaction score
0
Location
Oklahoma

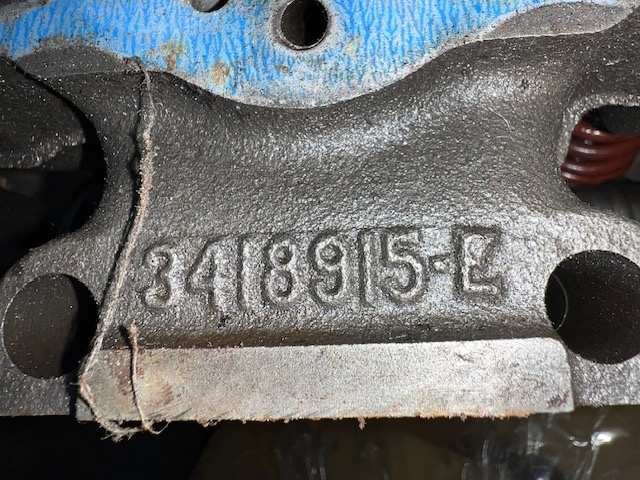

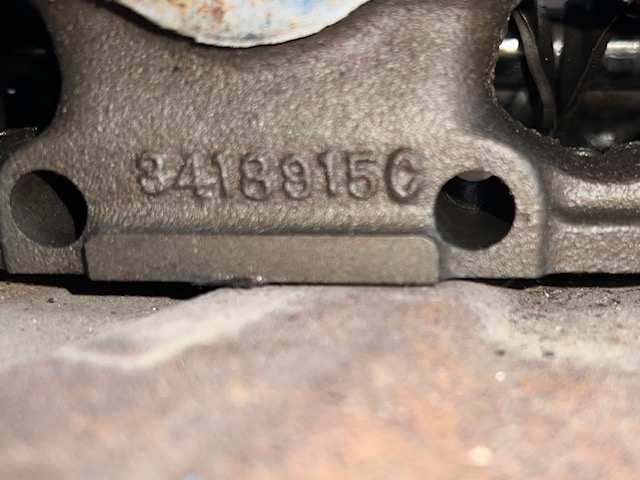

Can anyone tell me if the letters after the numbers have any significance?
Thanks for any help!





Xcudame

Well-Known Member
Joined
May 27, 2023
Messages
1,454
Reaction score
1,054
Location
Southeast Arizona
I think it was a serialization of the different molds used to cast the head. In your example, mold "C" and "E(?)" were used. On blocks they used numbers like 2468130-6 for a 59-71 383. The "6" is the mold serial number. Realize they were casting hundreds of these every day for years. I think I remember Chrysler making over 3 million 383 blocks!


Xcudame

Well-Known Member
Joined
May 27, 2023
Messages
1,454
Reaction score
1,054
Location
Southeast Arizona
By the way, what we call "casting numbers" are actually engineering part numbers, but regardless it lets us identify parts. The main thing on a matching set heads is the casting dates are close to each other. Usually no more than a month (or two) apart.


Dreaser

New Member
Joined
Feb 27, 2021
Messages
4
Reaction score
0
Location
Oklahoma
I think it was a serialization of the different molds used to cast the head. In your example, mold "C" and "E(?)" were used. On blocks they used numbers like 2468130-6 for a 59-71 383. The "6" is the mold serial number. Realize they were casting hundreds of these every day for years. I think I remember Chrysler making over 3 million 383 blocks!
thank you so much!
