FOR SALE Mopar K-Frame (V8 Non-Hemi) | 70-74 E-Body / 62-72 B-Body

[Gumby]

Mopar K-Frame (V8 Non-Hemi) | 70-74 E-Body / 62-72 B-Body

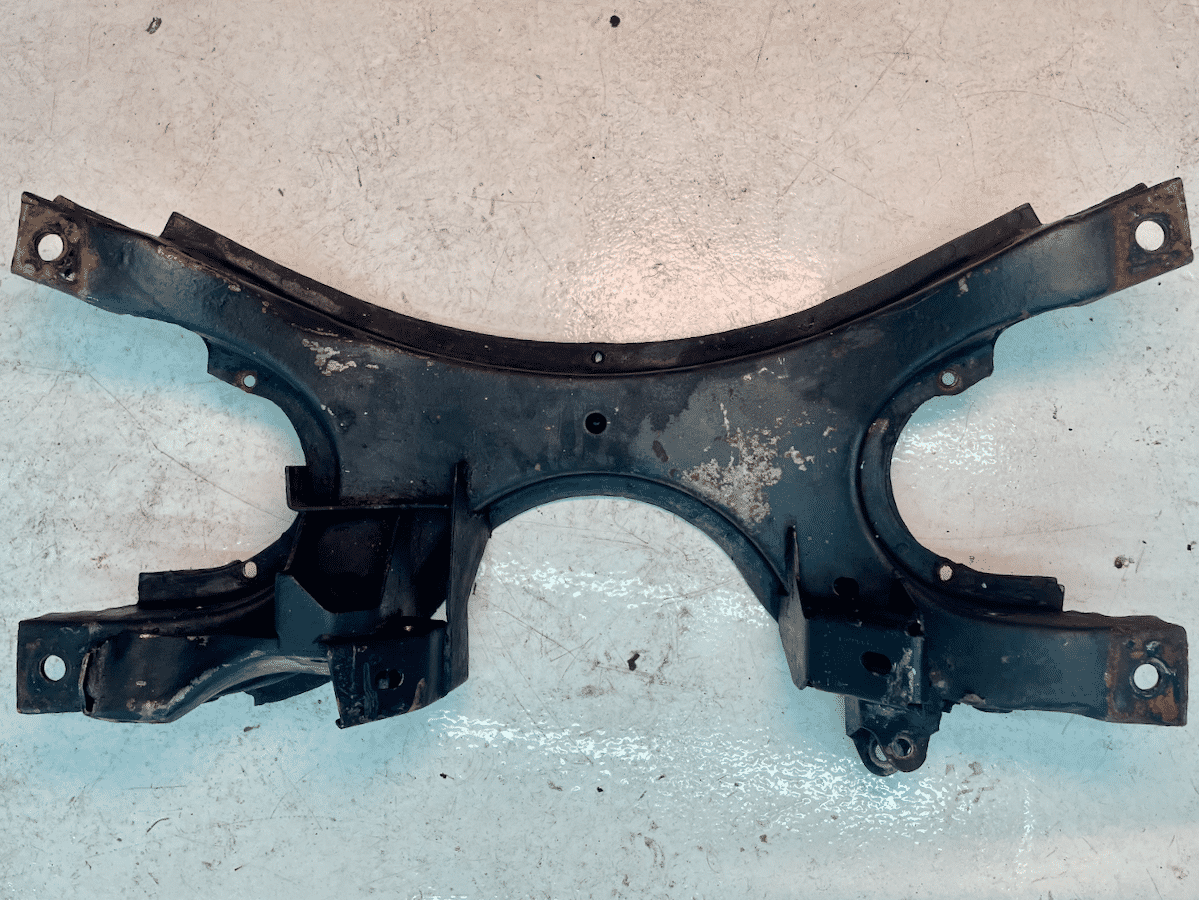

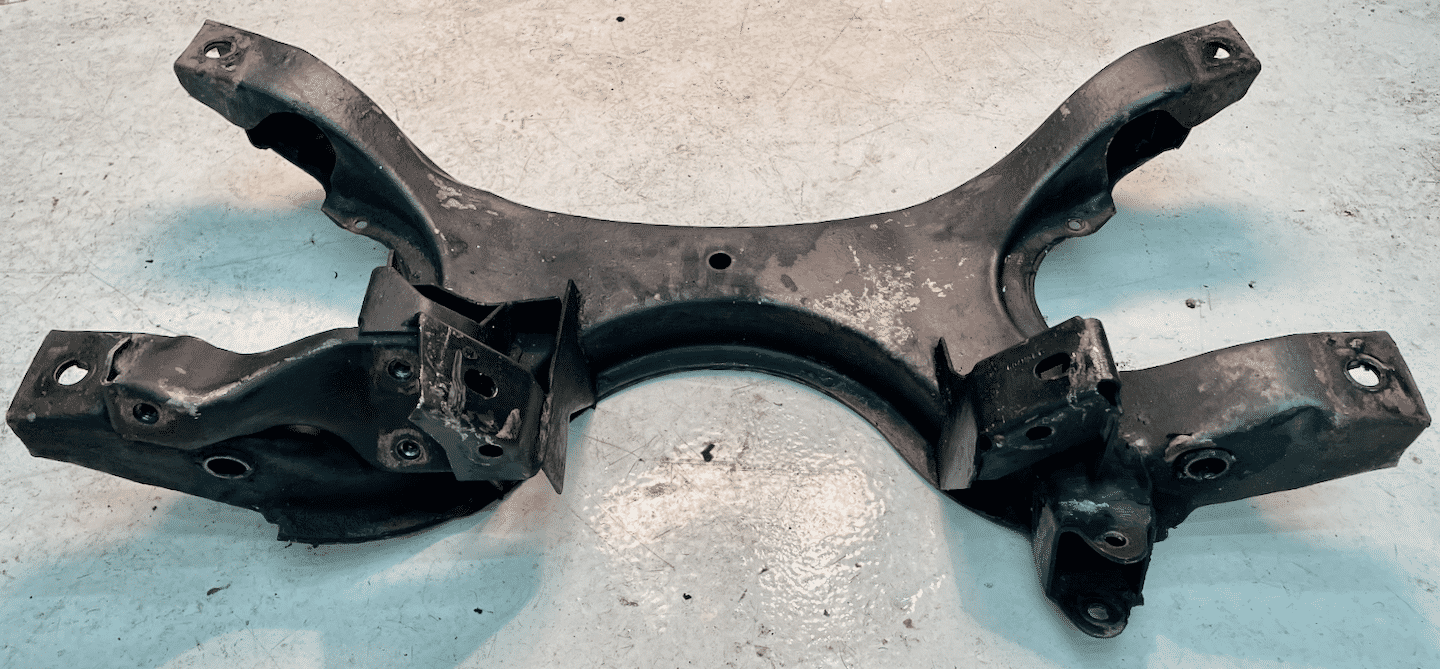

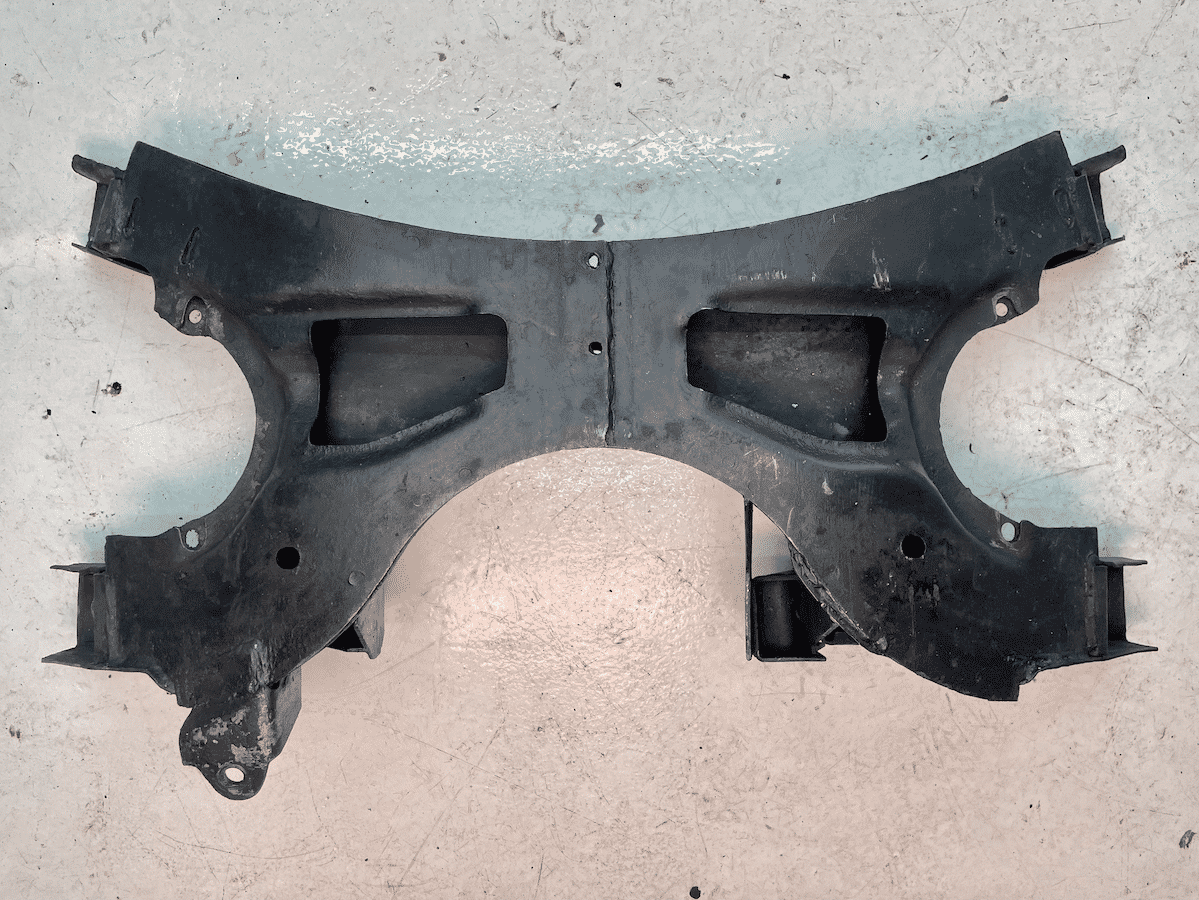

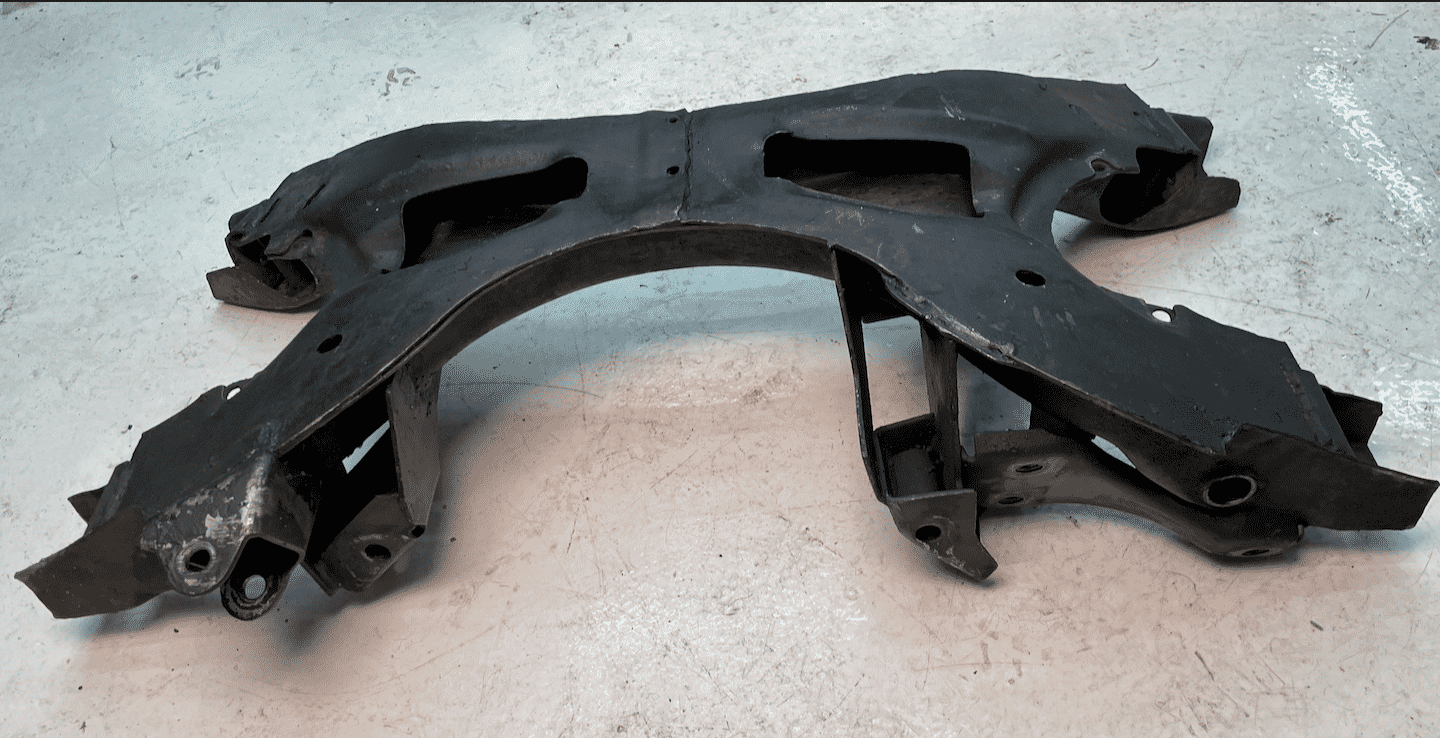

Original K-Frame (K-Member, crossmember, subframe, engine cradle) from my 1973 Dodge Challenger
Part Number: 3583074
Retains most of its original black paint
Good condition

Fitment:
✔ Direct Fit:

• 1970-1974 E-Body (Challenger, Barracuda, 'Cuda) – V8 Non-Hemi
• 1971-1972 B-Body (Charger, Road Runner, Coronet, Satellite, GTX, Belvedere) – V8 Non-Hemi

✔ Fits with Modifications:

1970 B-Body V8 Non-Hemi

• Use a shim washer on the inside mounting bolt of the steering gearbox.

1966-1969 B-Body V8 Non-Hemi

• Use a shim washer on the inside mounting bolt of the steering gearbox.
• Use a sway bar w/ sway bar supports from a 1970-1972 B-Body or 1970-1974 E-Body.
• Use lower control arms w/ sway bar end-link tabs from a 1970-1972 B-Body or 1970-1974 E-Body.
  • (Ignore the last two points if not using a sway bar.)

1962-1965 B-Body V8 Non-Hemi

• Use a shim washer on the inside mounting bolt of the steering gearbox.
• Use a sway bar w/ sway bar supports from a 1970-1972 B-Body or 1970-1974 E-Body.
• Use lower control arms w/ sway bar end-link tabs from a 1970-1972 B-Body or 1970-1974 E-Body.
  • (Ignore the last two points if not using a front sway bar.)
• Use an oil pan from a 1966+ Mopar V8.

Direct Fit Replacement for Mopar Part Numbers:
3583078, 3466477, 3583052, 3583100, 3726799, 2962012

Price: $260
Location: Lakeport, CA 95453
Shipping: Buyer pays shipping.

Let me know if you have any questions.



[Gumby]

Still available



[Gumby]

Still available.
