More wiring harness woes

[Jerry Foust]

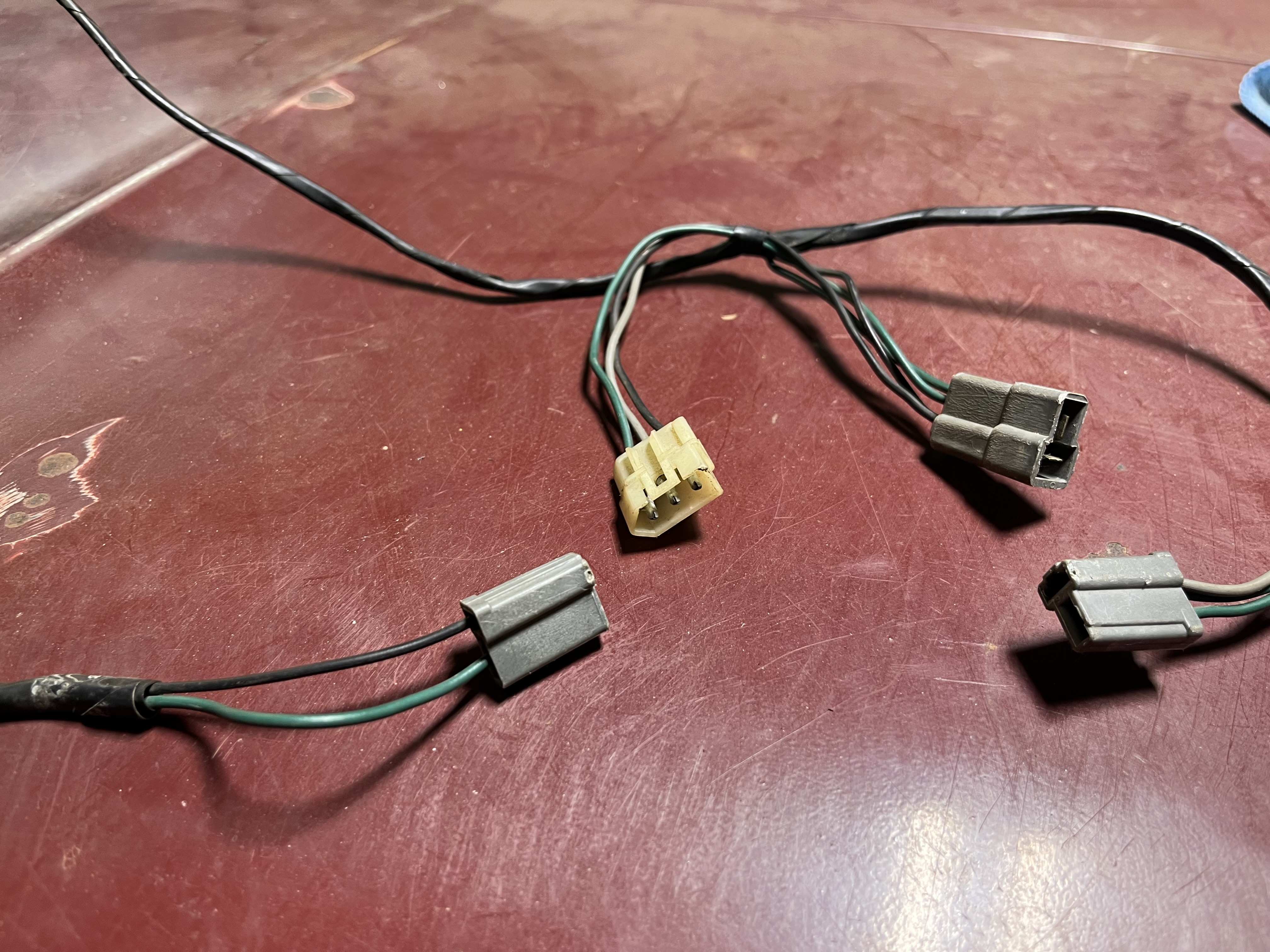

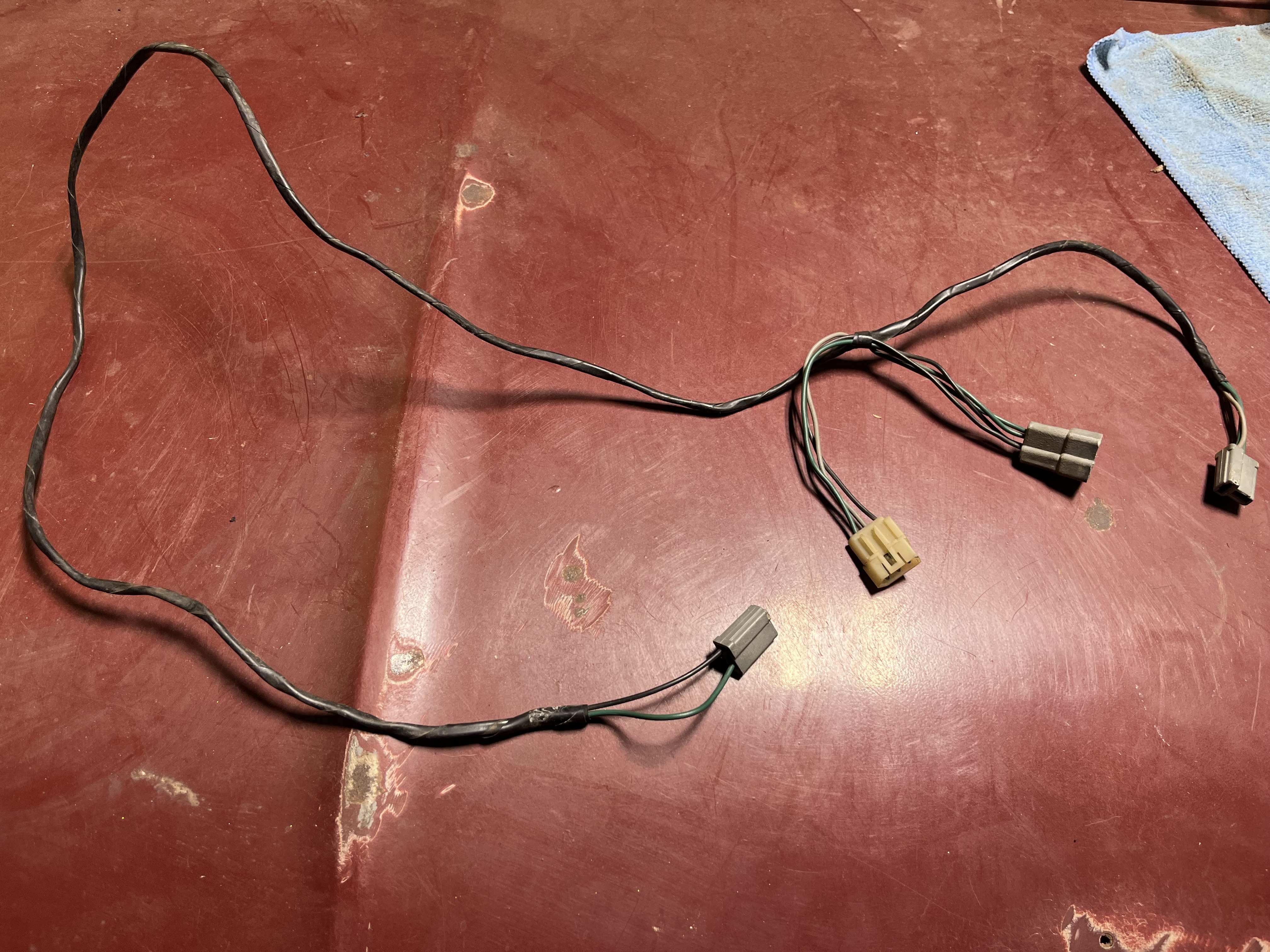

Can anyone tell me where this little harness goes ?



[Challenger RTA]

Not sure what year. Fader sw wiring?



[pschlosser]

We have a winner! Rear speaker harness. Try as I could, I could not locate the rear speaker wiring diagram in my 1970 FSM.



[Jerry Foust]

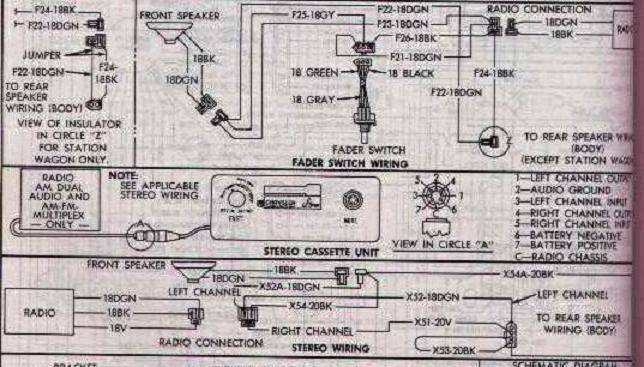

That’s very helpful where did you get this schematic ?



[Challenger RTA]

That’s very helpful where did you get this schematic ?

One of my hard-drives. No really I would have to look around. More than likely the service manual. Click here. Service manual



[pschlosser]

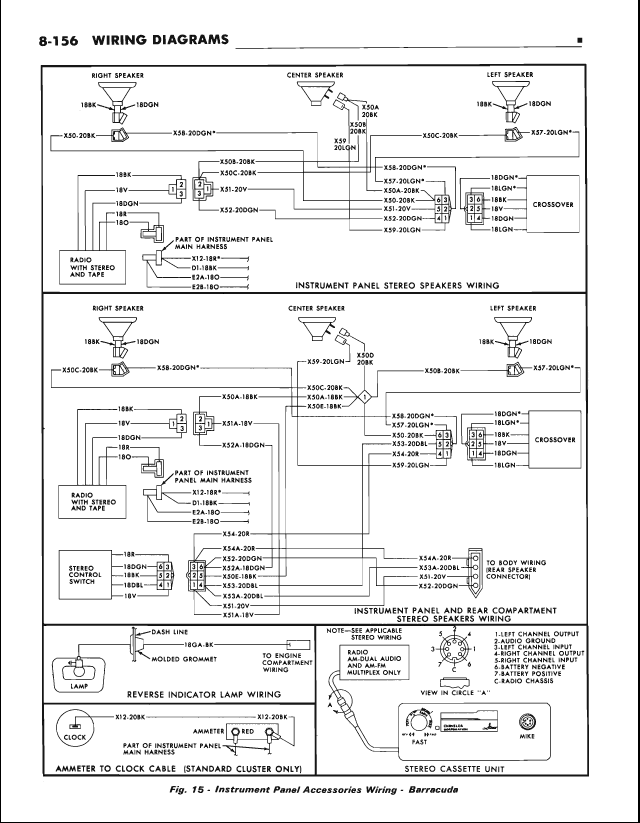

I found it. I could not find it in the 1970 Plymouth FSM, but I did find it the 1972 Plymouth Chassis Service Manual. I'm sure it's in the Dodge manuals, too.
