seat racks for a e body

[Racecar32]

Anyone know how the seat track mounts on the bottom of the seats ? I have new seat tracks but hadn't started taking the driver side off to mount them yet. Just looking to see what is instore before I start . Thanks



[floyd]

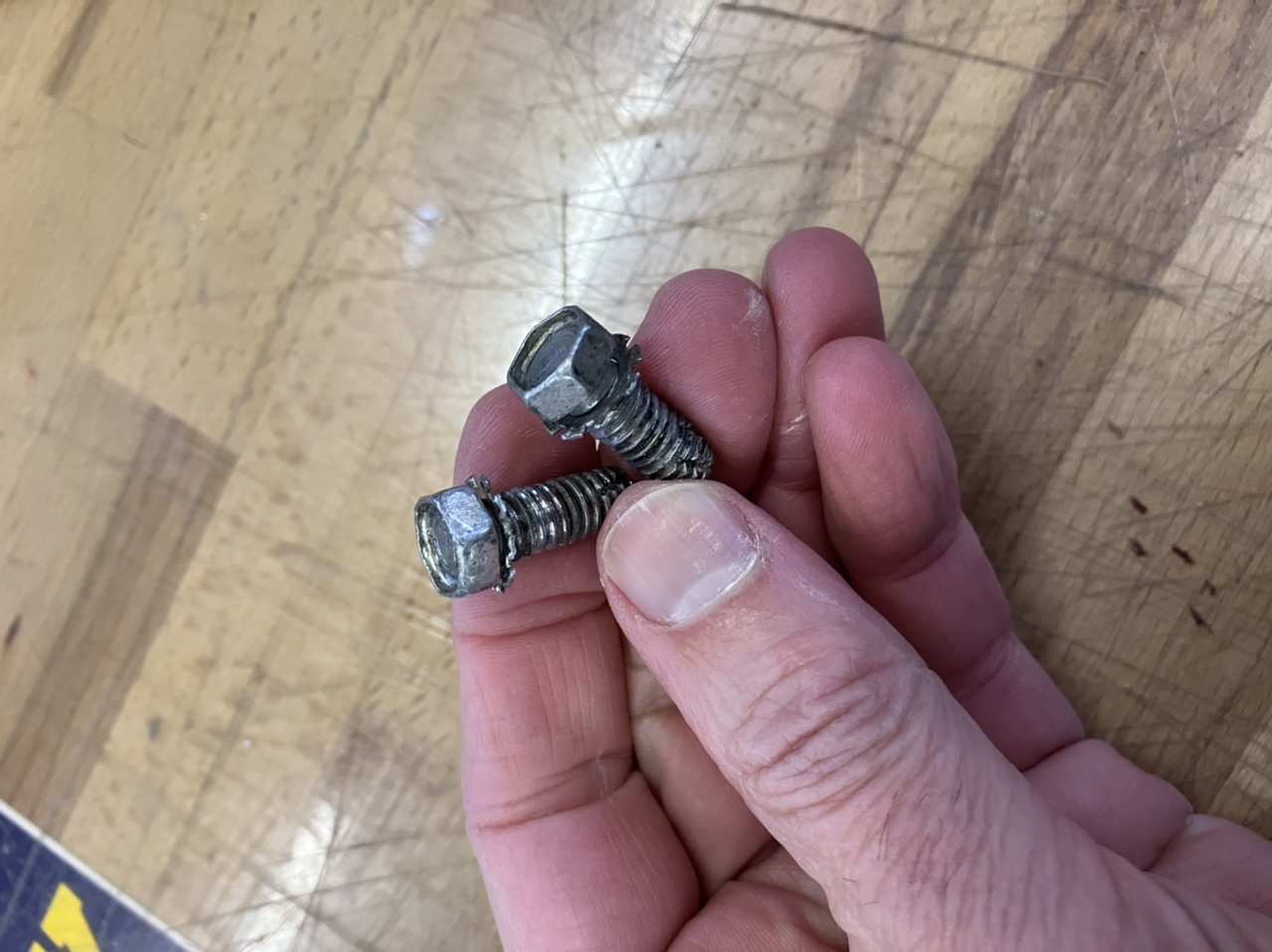

There are two bolts per track that fasten through the track ends and thread into the lower seat frame.



[floyd]

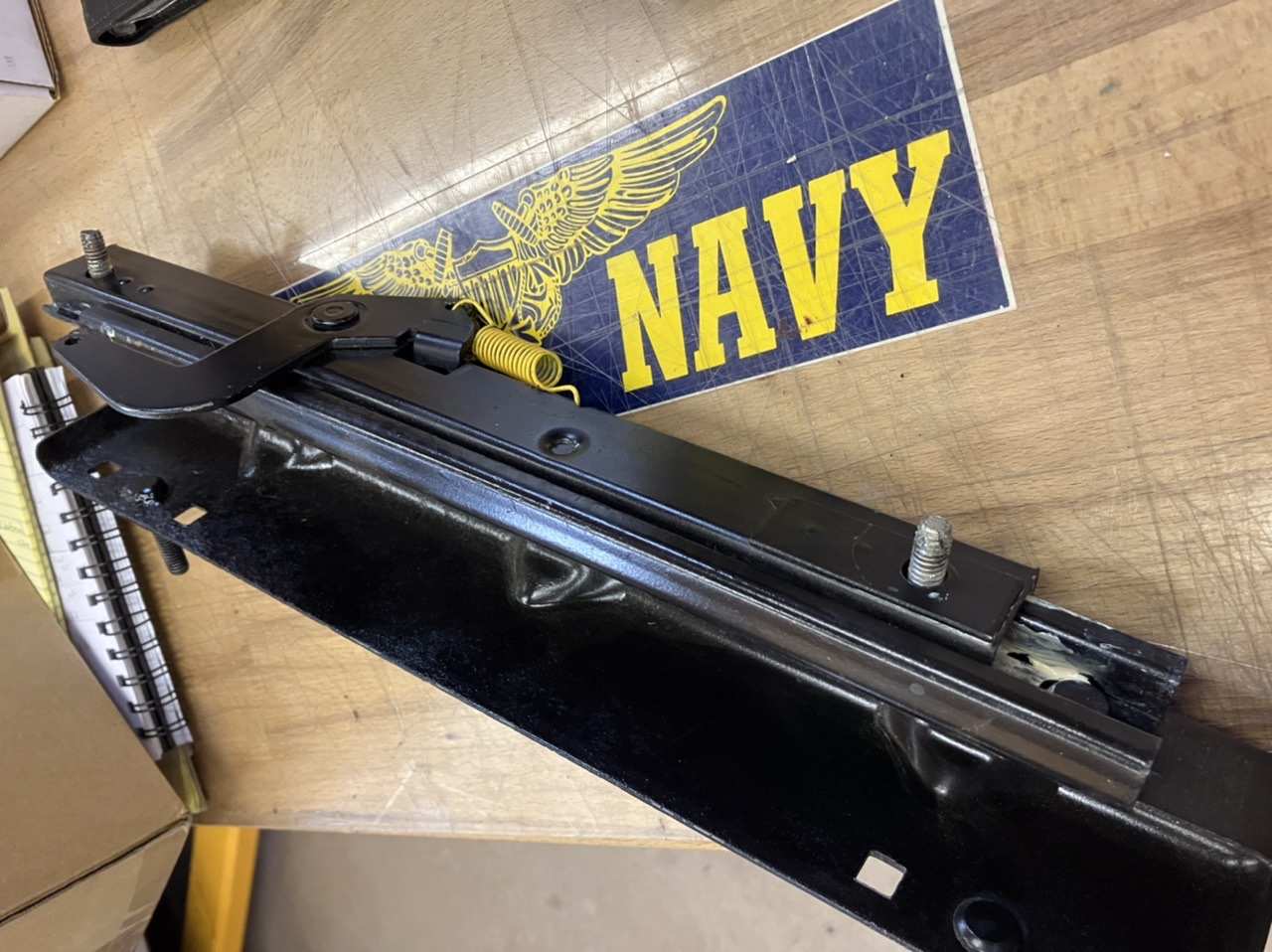

These pics don’t show the bolts but do show how the tracks are oriented. These are 70-71 style seat tracks.



[Racecar32]

These pics don’t show the bolts but do show how the tracks are oriented. These are 70-71 style seat tracks.

View attachment 133575

View attachment 133576

Thanks you !



[floyd]

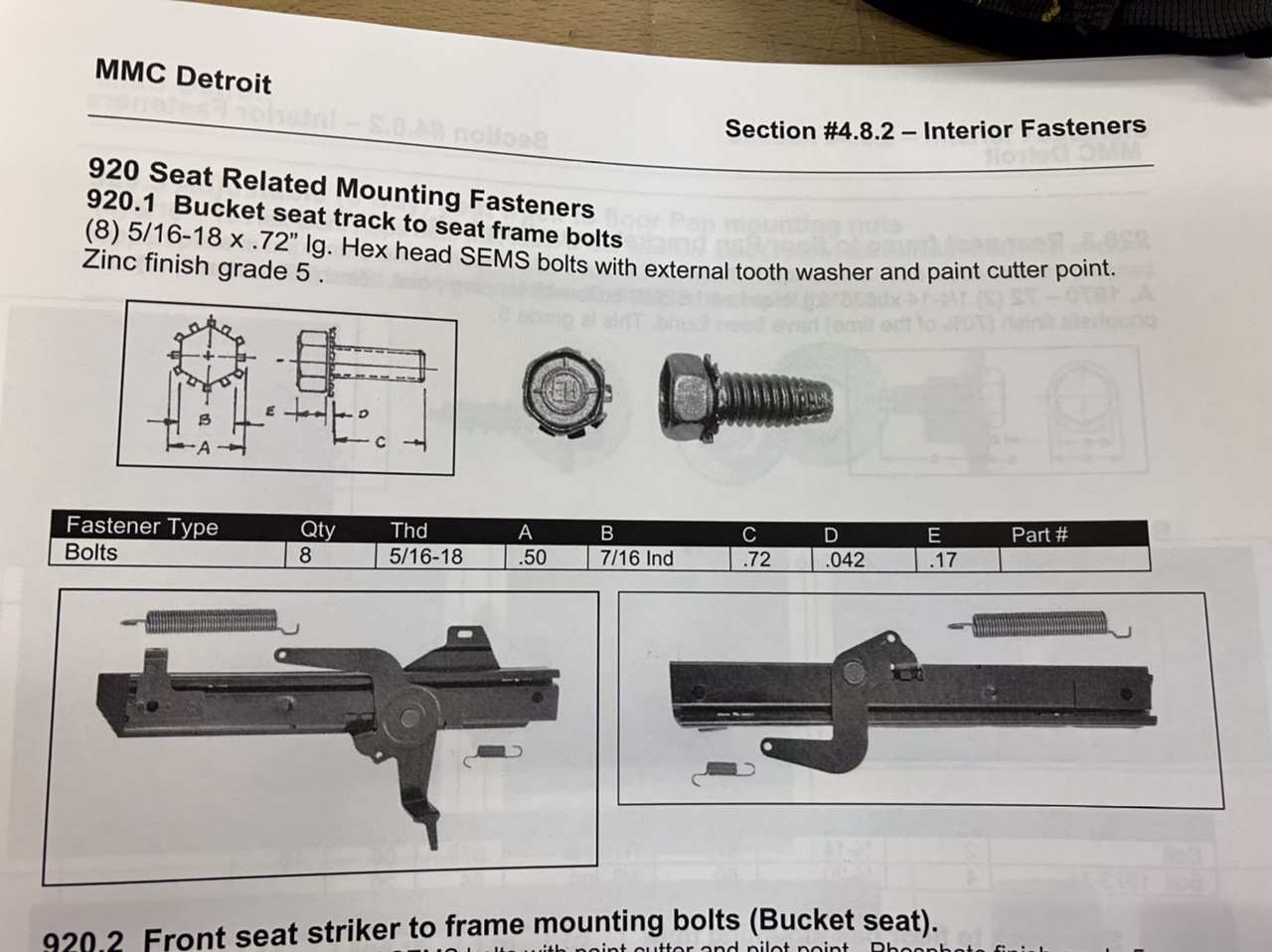

Here are some more pics/info
