FOR SALE Set of springs/retainers/locks

Status
Not open for further replies.

Chally

Member
Joined
Aug 19, 2020
Messages
19
Reaction score
4
Rating - 0%
0   0   0
Contact seller

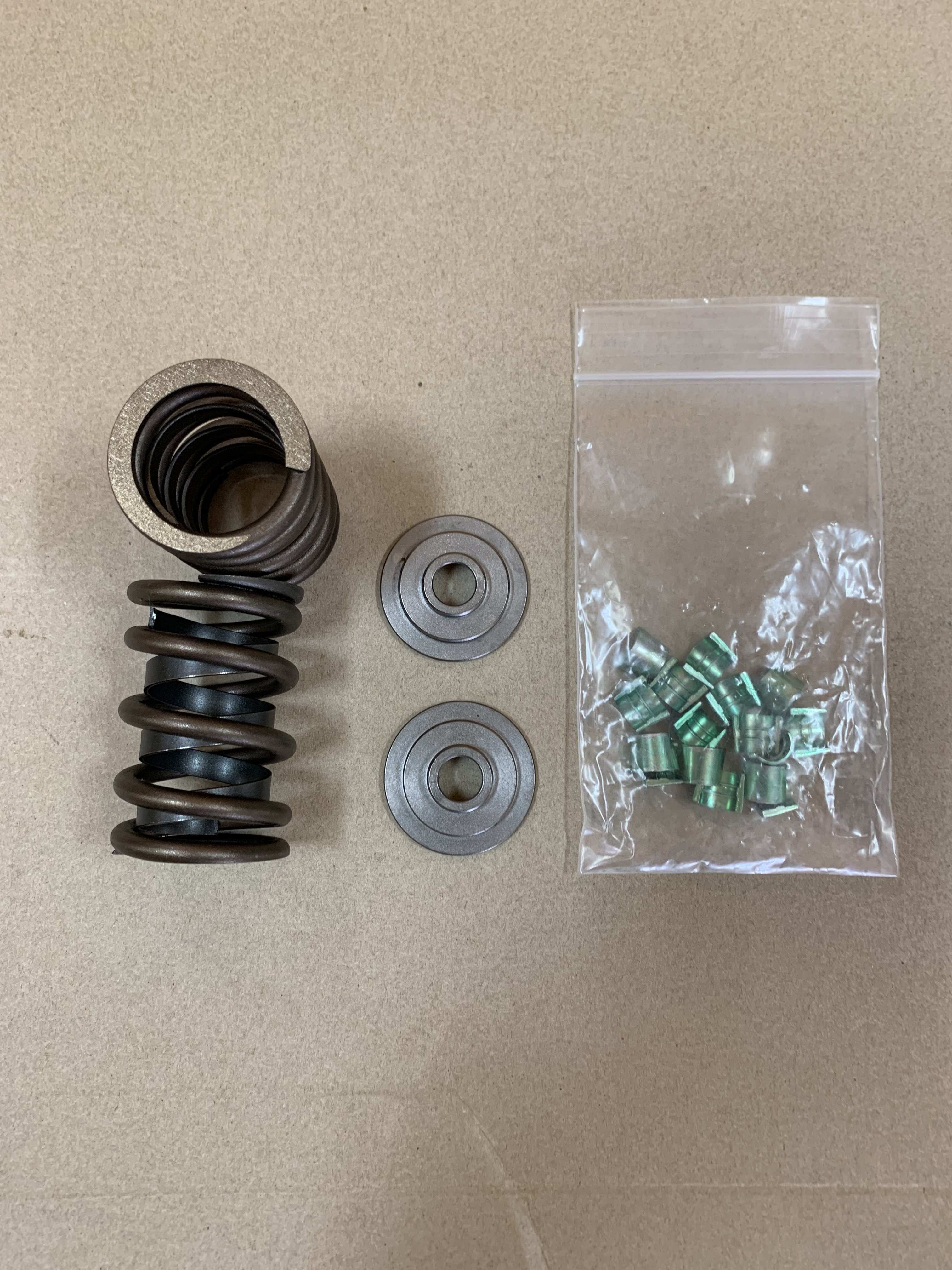

Full set of springs, retainers and locks removed from Stealth heads. Never used. Located in Baton Rouge, La. $80 plus shipping. Payment via USPS money order.

-Comp Cams 7 Degree stamped valve locks. Designed for 11/32” single groove valves.

-chrome moly hardened retainers for 11/32” valve stem

--Valve Spring Type:Single with Damper. Valve Spring Closed (seat) Pressure:Approx. 130 pounds @ 1.875" installed heightValve Spring Open PressureApprox. 330 pounds @ 1.275" (.600" lift.) Valve Spring Inner Diameter:1.050"Valve Spring Maximum Lift: .510"Valve Spring Coil Bind Height: 1.130" Valve Spring Outer Diameter:1.550"Valve Spring Free Height2.400"Valve Spring Installed Height:1.875"Valve Spring Wire Diameter:.202"Valve Spring Number of Coils:5.5
