trunk paint scheme

[jim8503]

it is me again
i did find that the trunk floor is body color
is the inside quarter panel undercoating sprayed over with body color
do the wheel wells get the sprayed body color undercoating
would bed liner work instead of undercoating

on another subject---does anyone re-produce window stickers
thanks for your help



[Vaanth]

is the inside quarter panel undercoating sprayed over with body color

Yes, the inner panel coating is sprayed with body color. Both of the following in my Challengers have been repainted, but the coating is original.

do the wheel wells get the sprayed body color undercoating

The wheel wells are not sprayed with coating other than possible overspray. The wells are body color.

would bed liner work instead of undercoating

Yes, although the texture will not exactly match but with effort can resemble original texture.



[jim8503]

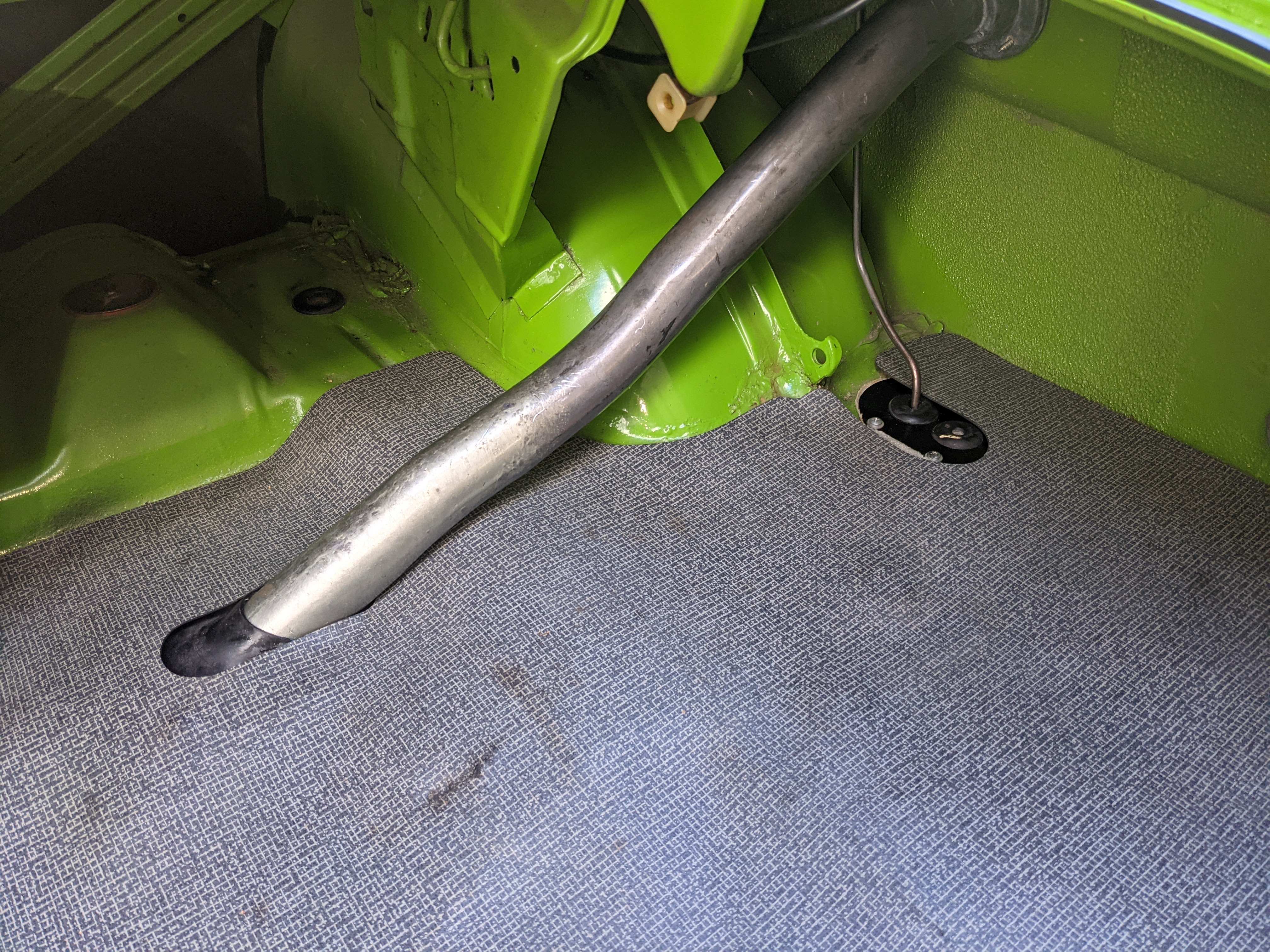

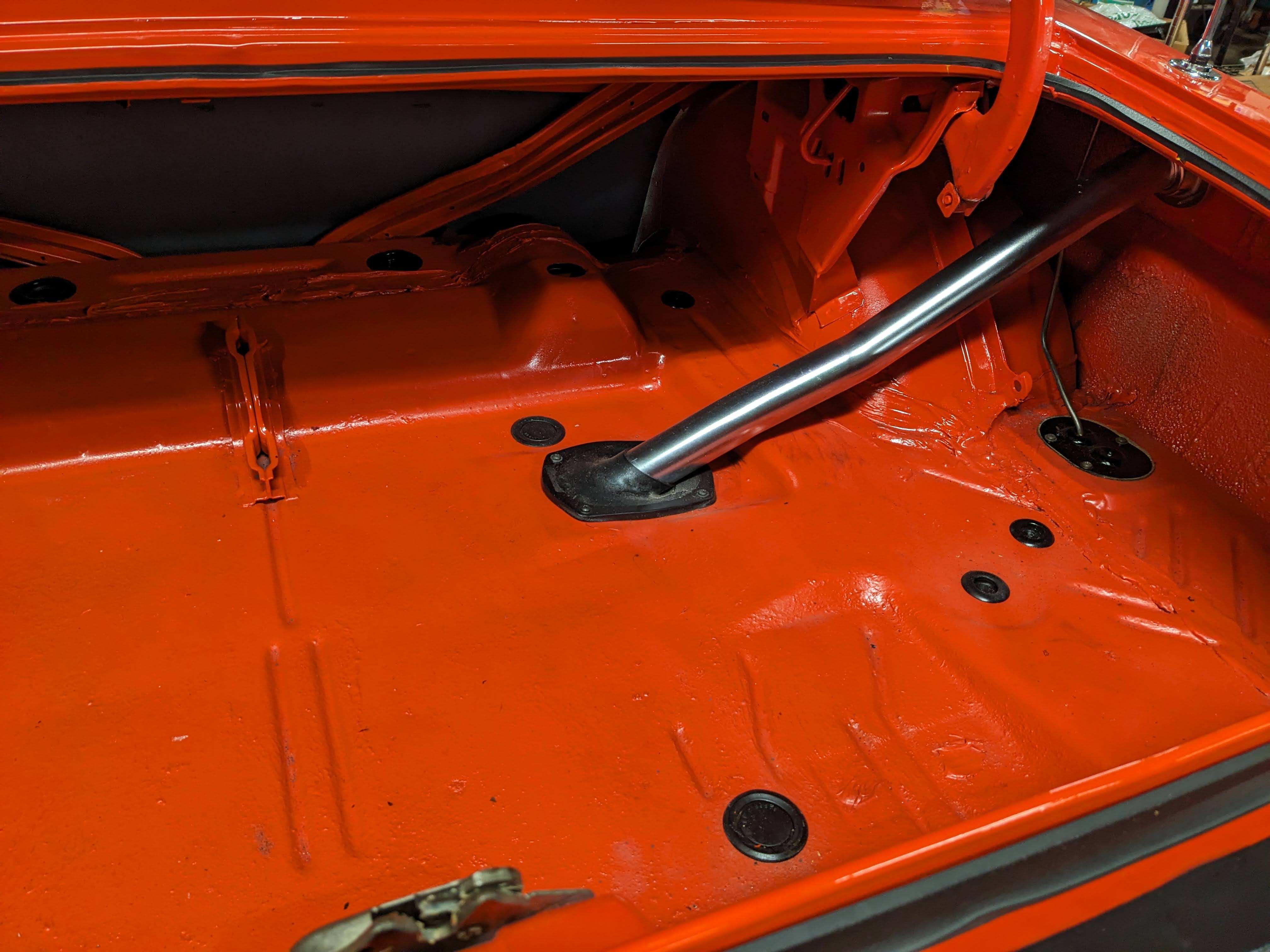

Yes, the inner panel coating is sprayed with body color. Both of the following in my Challengers have been repainted, but the coating is original.
View attachment 133314
View attachment 133315

The wheel wells are not sprayed with coating other than possible overspray. The wells are body color.


Yes, although the texture will not exactly match but with effort can resemble original texture.

Thanks



[Challenger RTA]

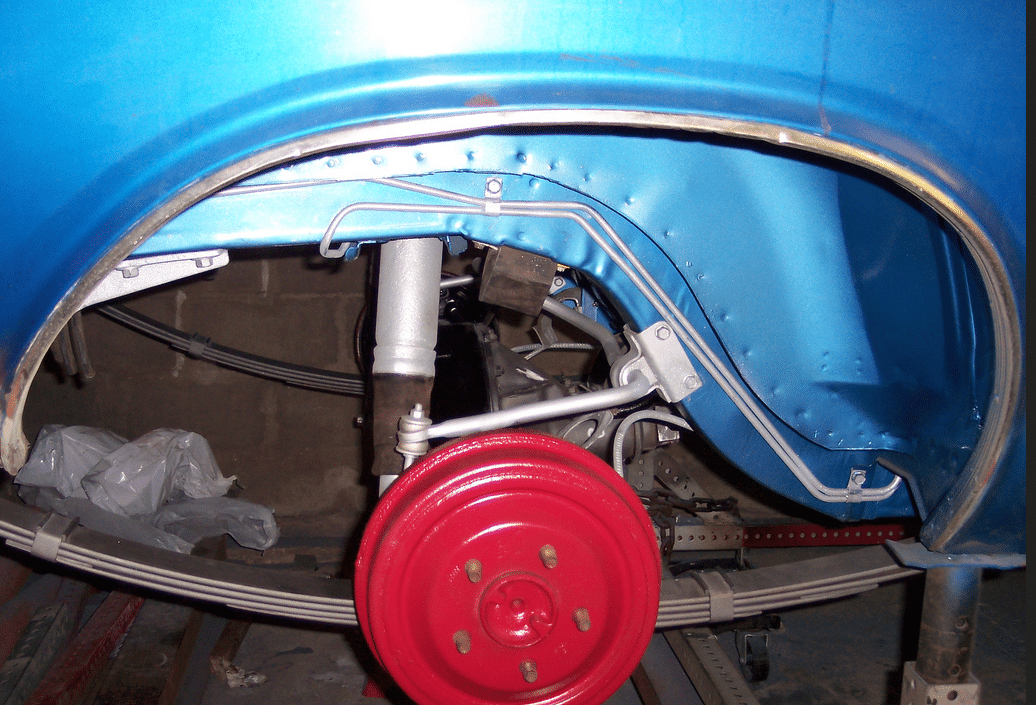

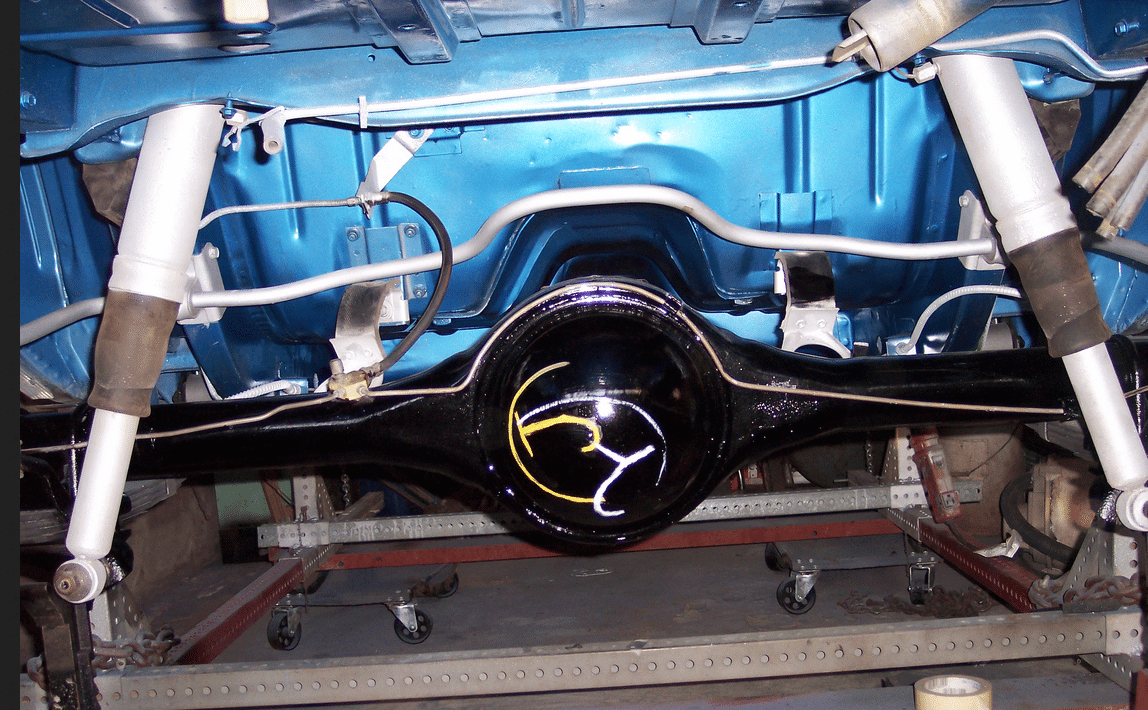

The info above is good. To add to it When I was in preservation mode, I got a little carried away. The rear wheels. I painted them and Later coated with KBS Diamond clear coat. The front I came to the concussion to apply truck bed liner. The reason I did so, was that I read that it helps with preventing stone dings to the fenders from the tires.
