Trying to source 1970 Barracuda Convertible Rear Window Tack Strip Fasteners

[Surfcuda]

Hi All, Trying to source 1970 Barracuda Convertible Rear Window Tack Strip Fasteners. There are 19 bolts that attach the Tack Strip that secures the Top and rear window to the trunk area. I understand some are T-bolts and the others are bolts with flange washers. Maybe they can be attached using a common Mopar fastener. Any help much appreciated.



[Finoke]

Hi All, Trying to source 1970 Barracuda Convertible Rear Window Tack Strip Fasteners. There are 19 bolts that attach the Tack Strip that secures the Top and rear window to the trunk area. I understand some are T-bolts and the others are bolts with flange washers. Maybe they can be attached using a common Mopar fastener. Any help much appreciated.

I substituted since mine were missing and these fasteners won't be seen because of the well liner. This is the Oval Washer that I used to substitute for the T, they were a little on the thin size so I doubled them up.

https://www.supplyhouse.com/sh/control/product/~product_id=C02851

When buying the flanged bolts just make sure you get the original length and thread count from any online bolt supplier. It's been a while, so I can't help with the sizes. I got mine from

Bolts and Nuts, Hex Cap Screws and Fasteners Online



[Surfcuda]

I substituted since mine were missing and these fasteners won't be seen because of the well liner. This is the Oval Washer that I used to substitute for the T, they were a little on the thin size so I doubled them up.

https://www.supplyhouse.com/sh/control/product/~product_id=C02851

When buying the flanged bolts just make sure you get the original length and thread count from any online bolt supplier. It's been a while, so I can't help with the sizes. I got mine from

Bolts and Nuts, Hex Cap Screws and Fasteners Online

Yes, mine are missing as well. They appear to be very hard to find or non-existent. I hope someone else may know of a source or can provide the length and thread count of these bolts. Appreciate the info on the Oval Washers as I may need to go your route. Regards Surfcuda



[EW1BH27]

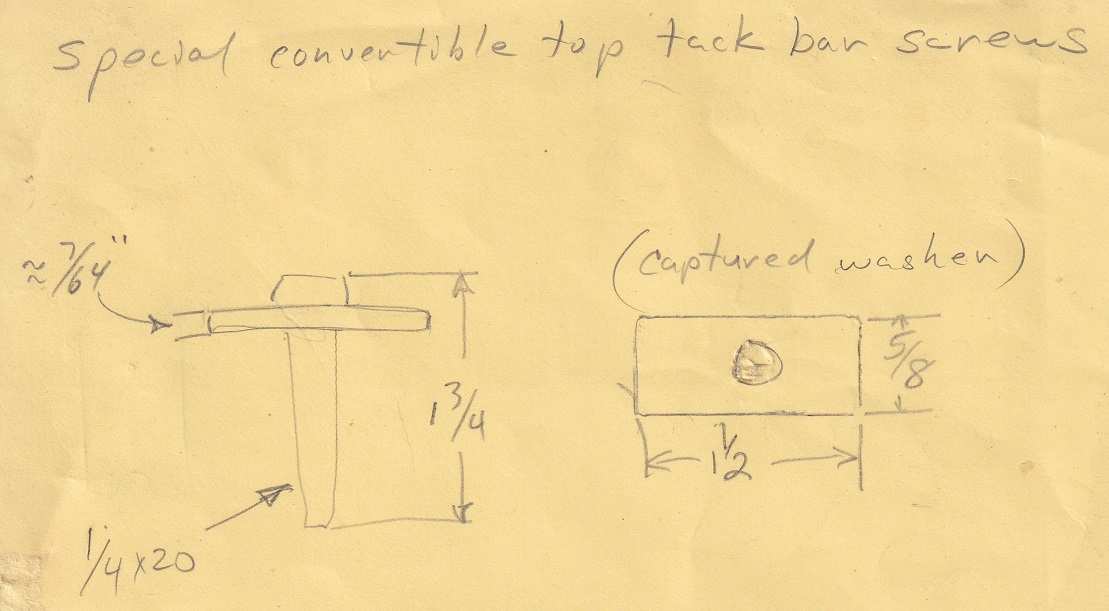

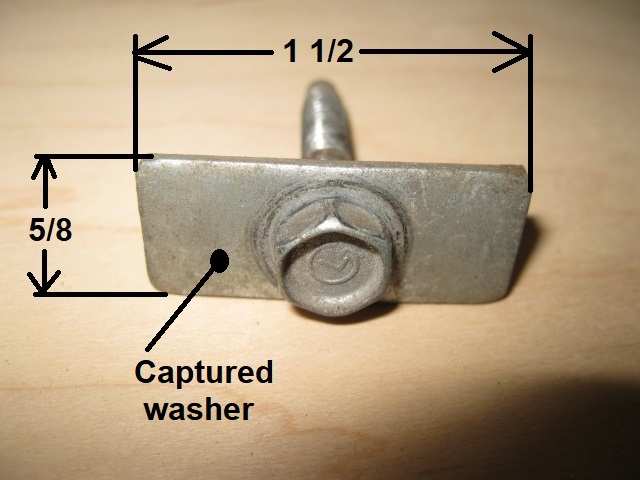

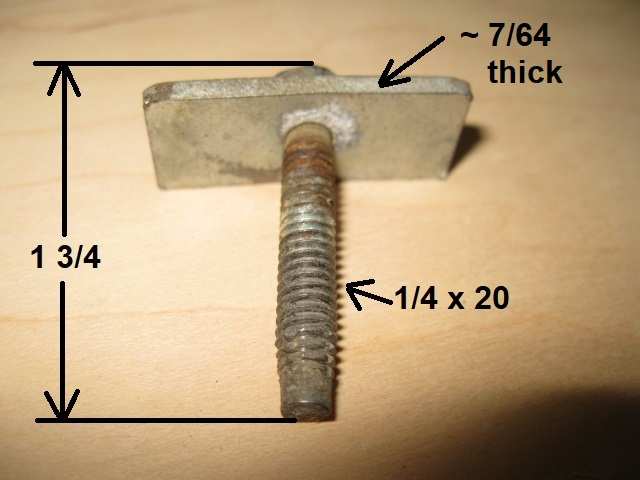

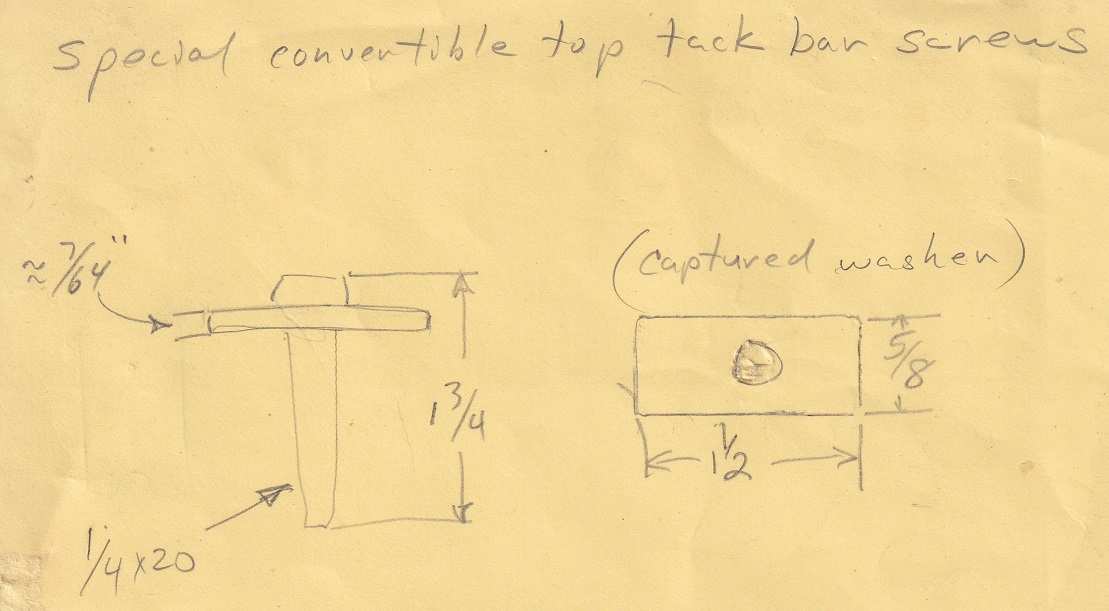

Before shipping my last ones out I scribbled out this - then edited the pictures.



[Surfcuda]

Before shipping my last ones out I scribbled out this - then edited the pictures.

View attachment 128659

View attachment 128660

View attachment 128661

Wow! Thank You for taking the time to pass this info on to me. Wish I could have got those last ones. Very helpful if I have make some up, which I likely will have too. 🏝



[EW1BH27]

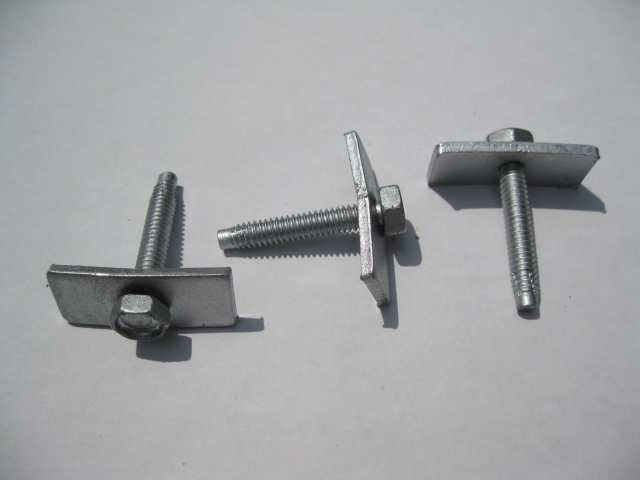

You're welcome. Here's a picture after they were cleaned up for shipping, Also a couple related threads.

http://[URL]https://www.forebodiesonly.com/forum/threads/vert-tack-strip-bolts.22652/

[/URL]

http://[URL]https://www.forebodieso...1970-71-convertible-tach-strip-t-bolts.21204/

[/URL]

PS: (edit) They went out sometime in the ‘90’s



[Finoke]

You're welcome. Here's a picture after they were cleaned up for shipping, Also a couple related threads.

http://[URL][URL]https://www.forebodiesonly.com/forum/threads/vert-tack-strip-bolts.22652/

[/URL][/URL]

http://[URL][URL]https://www.forebo...1970-71-convertible-tach-strip-t-bolts.21204/

[/URL][/URL]

PS: (edit) They went out sometime in the ‘90’s
View attachment 128666

I concur, 1/4 20. Great pics, I'm saving too!
