1973 CHALLENGER STOCK FRONT DISK BRAKE CALIPER LOCATION

[dennispsalm91]

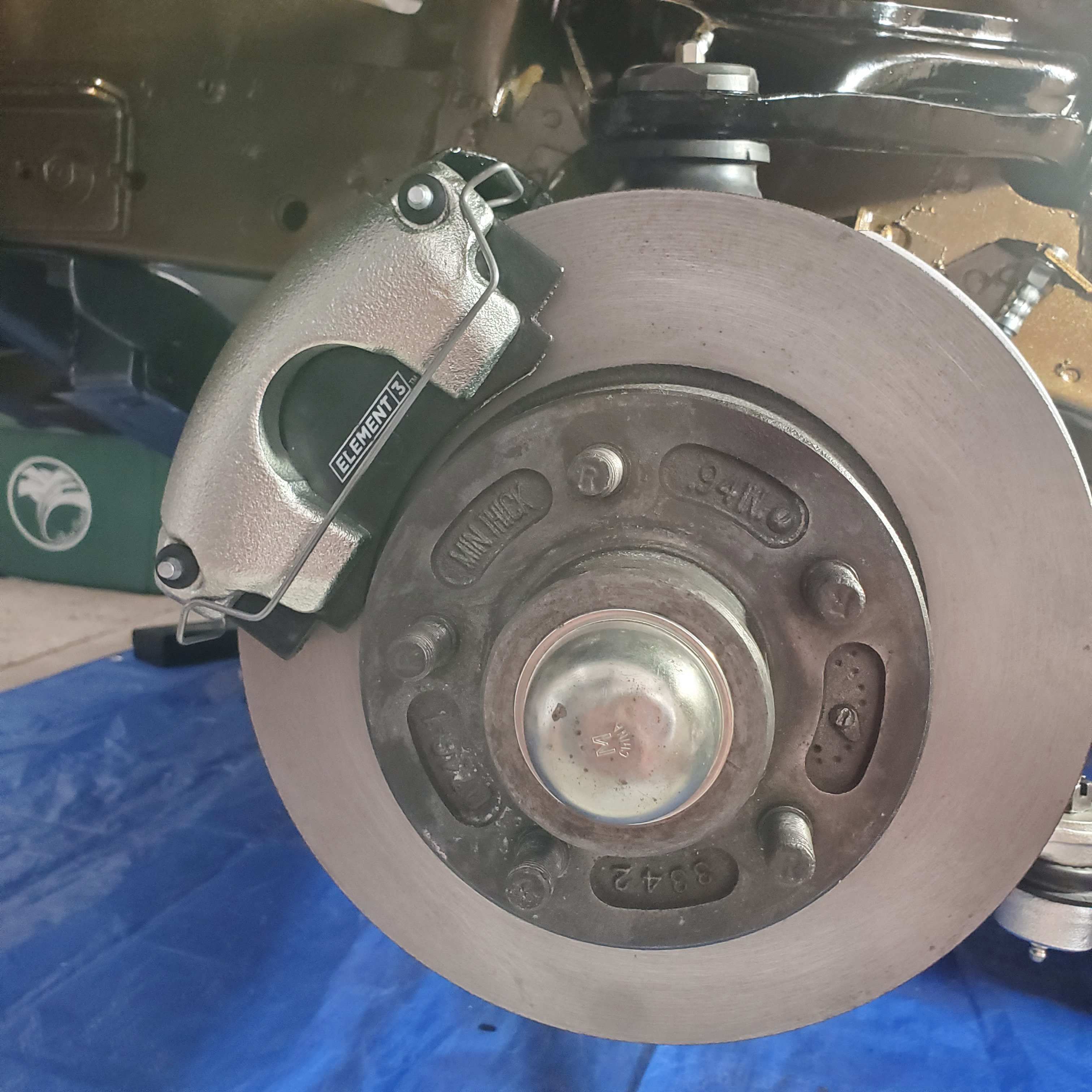

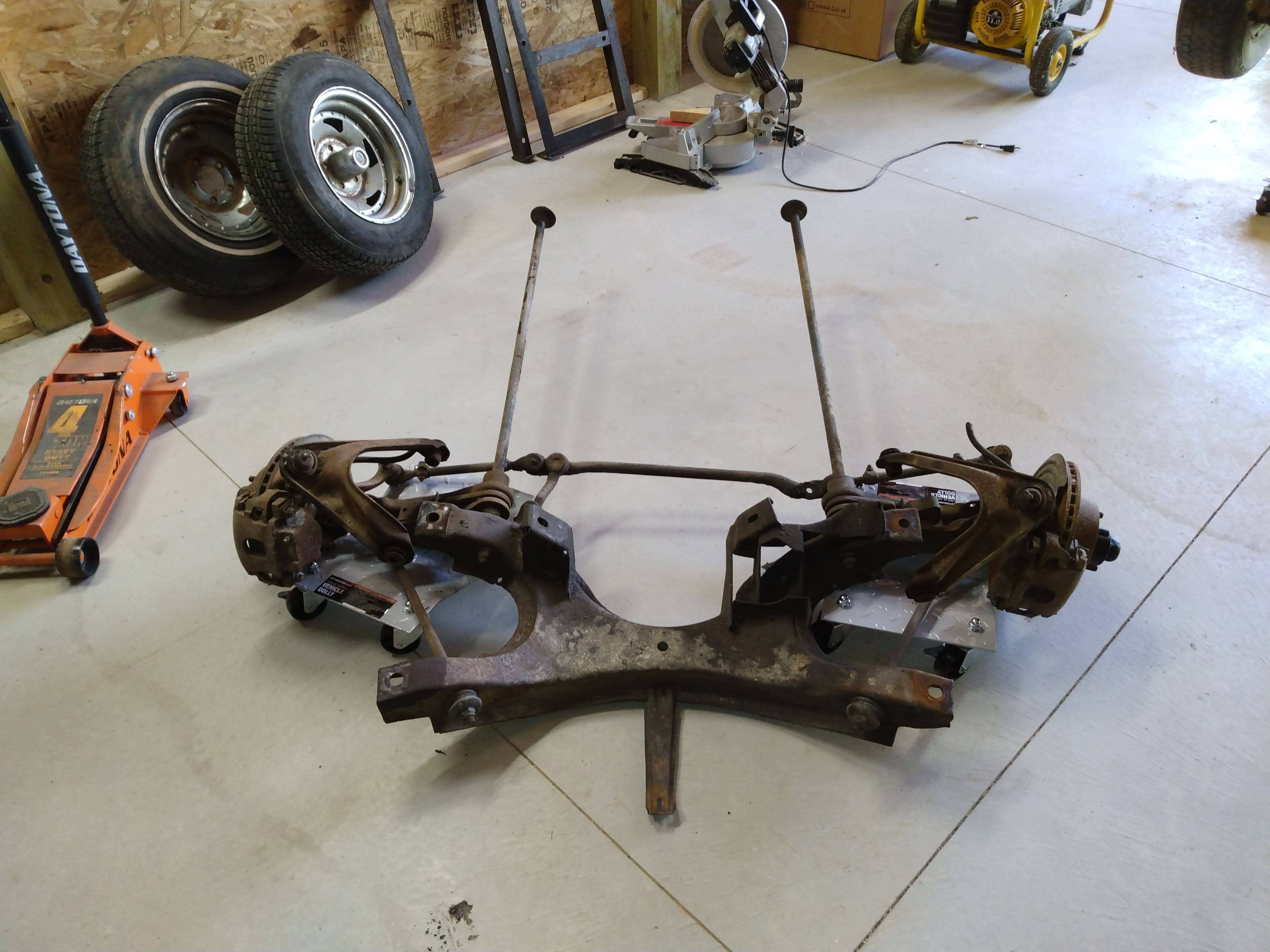

Putting together whole front end. want to make sure of location of calipers. they are either forward or back. Want to make sure i dont have the spindles backwards. I do have the stock replacement brake lines from inline tube Is this picture correct? its about the only thing i could find. Picture has calipers forward



[Chryco Psycho]

The brake line is located behind the spindle on the chassis , feeds through behind the spindle to the caliper which is on the front side



[Vaanth]

Yes, as noted, forward of the spindle/knuckle, opposite of the brake hose to metal line attachment.

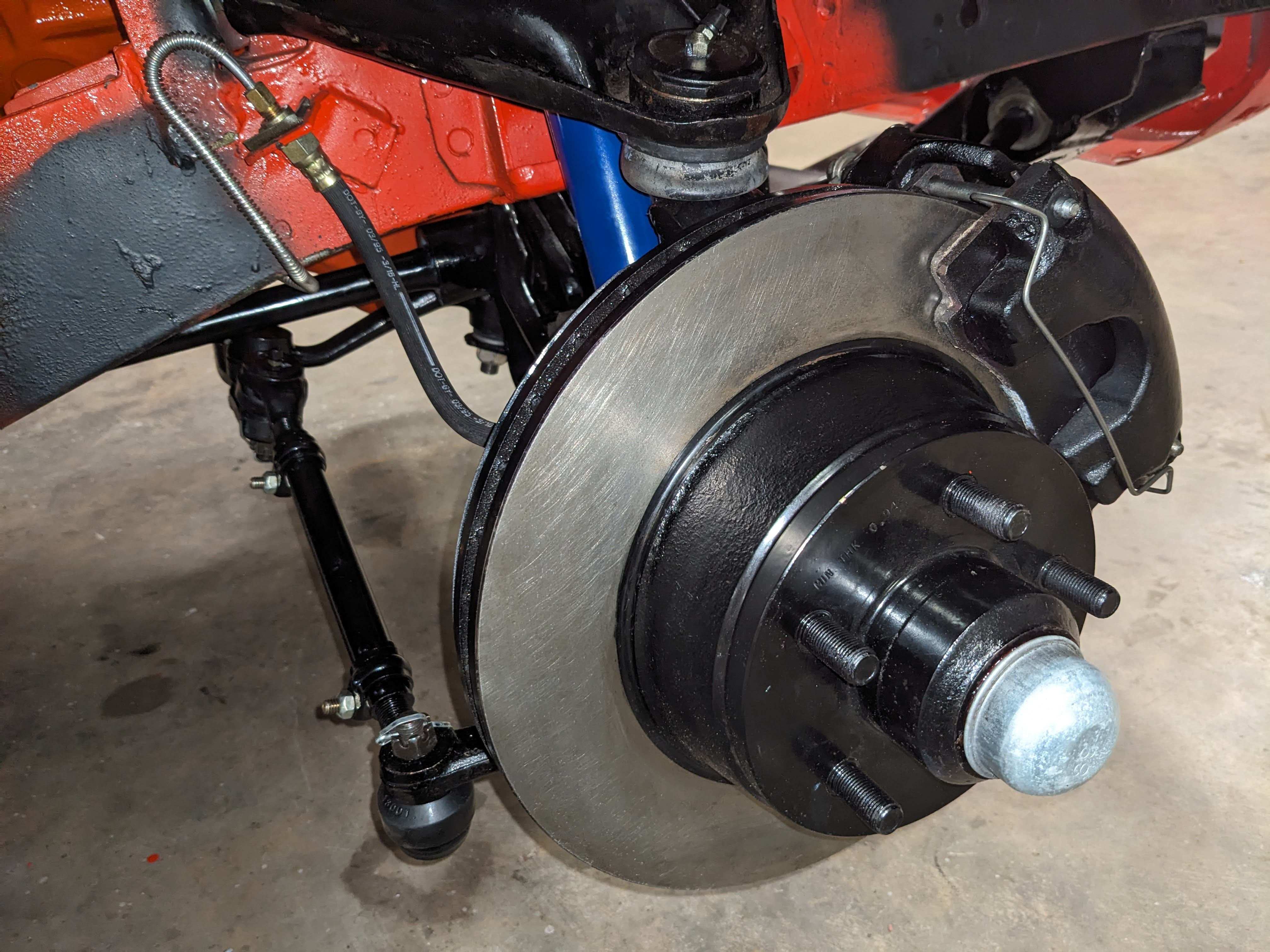

Passenger side:



[dennispsalm91]

Yes, as noted, forward of the spindle/knuckle, opposite of the brake hose to metal line attachment.

Passenger side:
View attachment 134809

THANK YOU !!



[dennispsalm91]

THANK YOU !!
