Brake warning light

kellydw

Member
Joined
Feb 15, 2024
Messages
17
Reaction score
7
Location
Sydney Nova Scotia Canada
Hi All
Can't seem to get the brake warning light to go out. Have bleed the brakes several times and used the Chrysler manual method for bleeding and centering the cast iron proportioning valve - 73 Cuda with front disc and rear drums. Any ideas


pschlosser

Well-Known Member
Joined
Dec 8, 2022
Messages
751
Reaction score
293
Location
Santa Rosa, California
Time to test the brake warning circuit and switch.

The brake warning lamp in the dash has two wires, one (dark blue) provides + voltage. The other (black) goes through bulkhead connecter terminal #12, to a switch below the master cylinder, in the engine compartment, and gets ground to illuminate the lamp.

There may be a short grounding this (black) wire, the safety switch is faulty, or something amiss in the proportioning valve. Try disconnecting the wire going to the switch, and see if the lamp goes out. If not, the switch may be fine, and you gotta look deeper.

Back in the 1980s, I drove a 1970 barracuda with a failing master cylinder for almost a year. The brake warning lamp would frequently come on. I could milk function from the master cylinder by pumping the brakes. In stop-n-go traffic, the lamp was on for long periods of time. At one point, the lamp stayed on. Even after repairing the master cylinder. After some troubleshooting, I found the black wire got too hot, (presumably) because the lamp was on for long periods, and the black wire melted its insulation and melted another wire to ground. The long and short of it is, I had to repair the wiring harness coming from the fuse bulkhead up to the instrument cluster to resolve that problem.

Last edited:

kellydw

Member
Joined
Feb 15, 2024
Messages
17
Reaction score
7
Location
Sydney Nova Scotia Canada
Do you mean disconnect the wire going to the switch on the proportioning valve??? to see if t6he warning light goes out??
Not sure but I will check that out next. I did pull the wire from the proportioning valve switch and the light went out. I guess that means the switch could be bad. Thanks


pschlosser

Well-Known Member
Joined
Dec 8, 2022
Messages
751
Reaction score
293
Location
Santa Rosa, California
Not sure but I will check that out next. I did pull the wire from the proportioning valve switch and the light went out. I guess that means the switch could be bad. Thanks

Nice work. You're on the trail to solving it. So it looks like the wiring is fine, well done.

Is this a factory disc brake car? If it was converted from an all drum car, it's possible the proportioning valve (which is unique to the front disc, rear drum setup) is the problem. Either way, it looks like we know that switch is always on.


sixpactogo

Well-Known Member
Joined
Mar 4, 2017
Messages
375
Reaction score
144
Location
Eau Claire, Wisconsin
Not sure but I will check that out next. I did pull the wire from the proportioning valve switch and the light went out. I guess that means the switch could be bad. Thanks
Pretty sure your problem is in the proportioning valve. They get gunky and sticky from years of use. I just rebuilt one like yours. If I were you, I would remove it and take it apart for cleaning. You may not need any new parts but the rubber seals and O rings are available if needed. There are a couple U tube videos on line showing how to do it. Just take your time and take lots of pictures so you know how to put it back together. What is happening with yours is the cylinder has moved to one side or the other allowing the plunger in your switch to send a ground to the light. You need to get that cylinder moved back to center to turn the light off. I have a few tips for you if you decide to repair it yourself.


kellydw

Member
Joined
Feb 15, 2024
Messages
17
Reaction score
7
Location
Sydney Nova Scotia Canada
Nice work. You're on the trail to solving it. So it looks like the wiring is fine, well done.

Is this a factory disc brake car? If it was converted from an all drum car, it's possible the proportioning valve (which is unique to the front disc, rear drum setup) is the problem. Either way, it looks like we know that switch is always on.


kellydw

Member
Joined
Feb 15, 2024
Messages
17
Reaction score
7
Location
Sydney Nova Scotia Canada
Yeh it is a factory front disc brake car. The car sat for 16 years so you are probably right with the proportioning valve need cleaning. First problem I had was no fluid to the rear brakes and after trying several things turned out the wheel cylinders were plugged - cleaned the small holes for the bleeder and brake line and works fine now. I was putting cleaning the proportion valve off but guess I have no choice now lol. Thanks millions for the help - will let you know how it turns out.


kellydw

Member
Joined
Feb 15, 2024
Messages
17
Reaction score
7
Location
Sydney Nova Scotia Canada
Pretty sure your problem is in the proportioning valve. They get gunky and sticky from years of use. I just rebuilt one like yours. If I were you, I would remove it and take it apart for cleaning. You may not need any new parts but the rubber seals and O rings are available if needed. There are a couple U tube videos on line showing how to do it. Just take your time and take lots of pictures so you know how to put it back together. What is happening with yours is the cylinder has moved to one side or the other allowing the plunger in your switch to send a ground to the light. You need to get that cylinder moved back to center to turn the light off. I have a few tips for you if you decide to repair it yourself.


kellydw

Member
Joined
Feb 15, 2024
Messages
17
Reaction score
7
Location
Sydney Nova Scotia Canada
Yeh I am going to take it off tomorrow and clean it. There is a pretty good diagram in the Chrysler manual of the internal parts so it will help with the reassembly. Any hints would be greatly appreciated


sixpactogo

Well-Known Member
Joined
Mar 4, 2017
Messages
375
Reaction score
144
Location
Eau Claire, Wisconsin
Yeh I am going to take it off tomorrow and clean it. There is a pretty good diagram in the Chrysler manual of the internal parts so it will help with the reassembly. Any hints would be greatly appreciated
Take your time dis assembling and take pictures so you know how it goes back together. Don't lose that little spring and brass hat at the bottom of the metering valve assembly like I did. Once you have that all out of the unit, you can use a 1/8" long punch to push the shuttle valve brass fittings out along with the seat for the rear brakes.

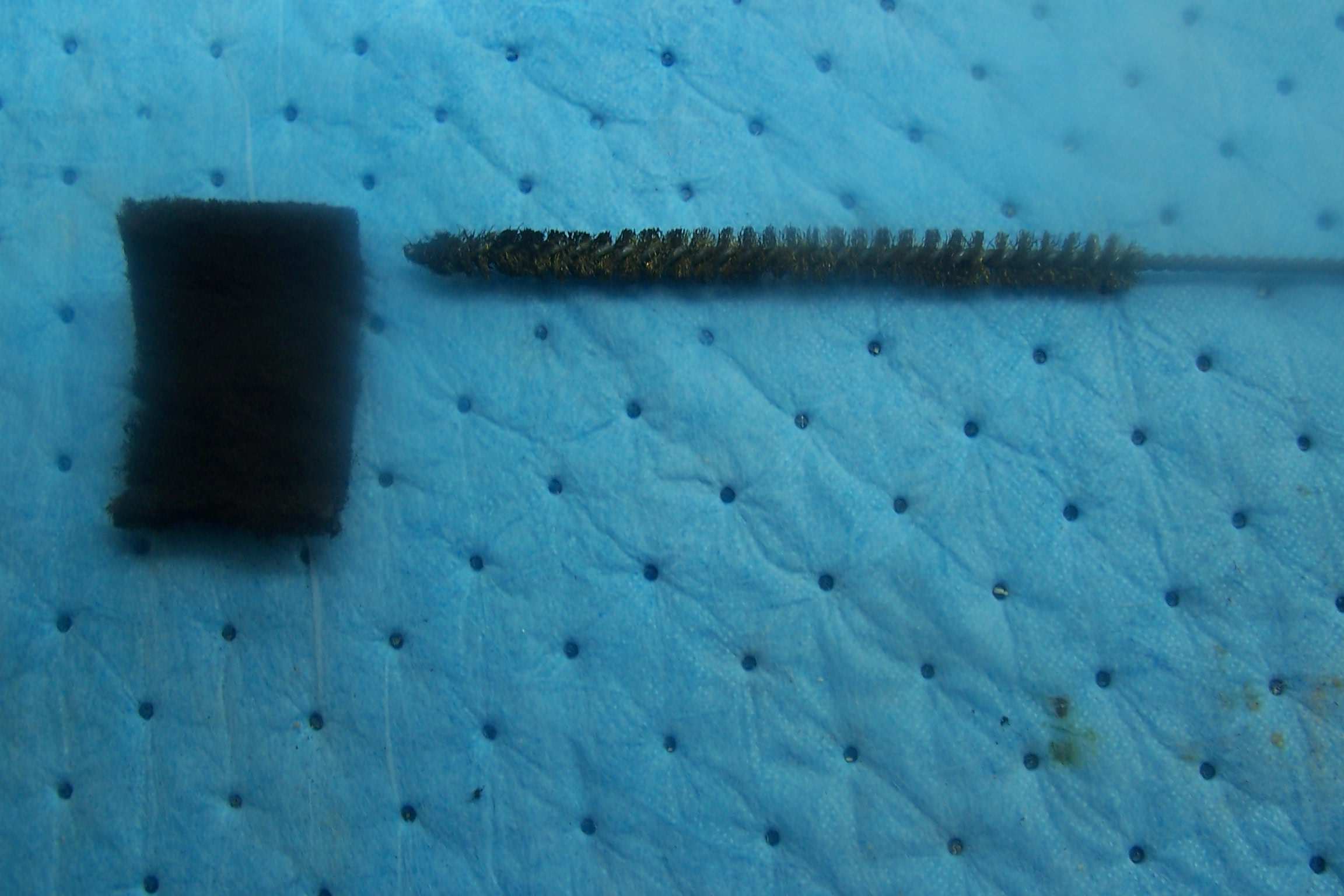

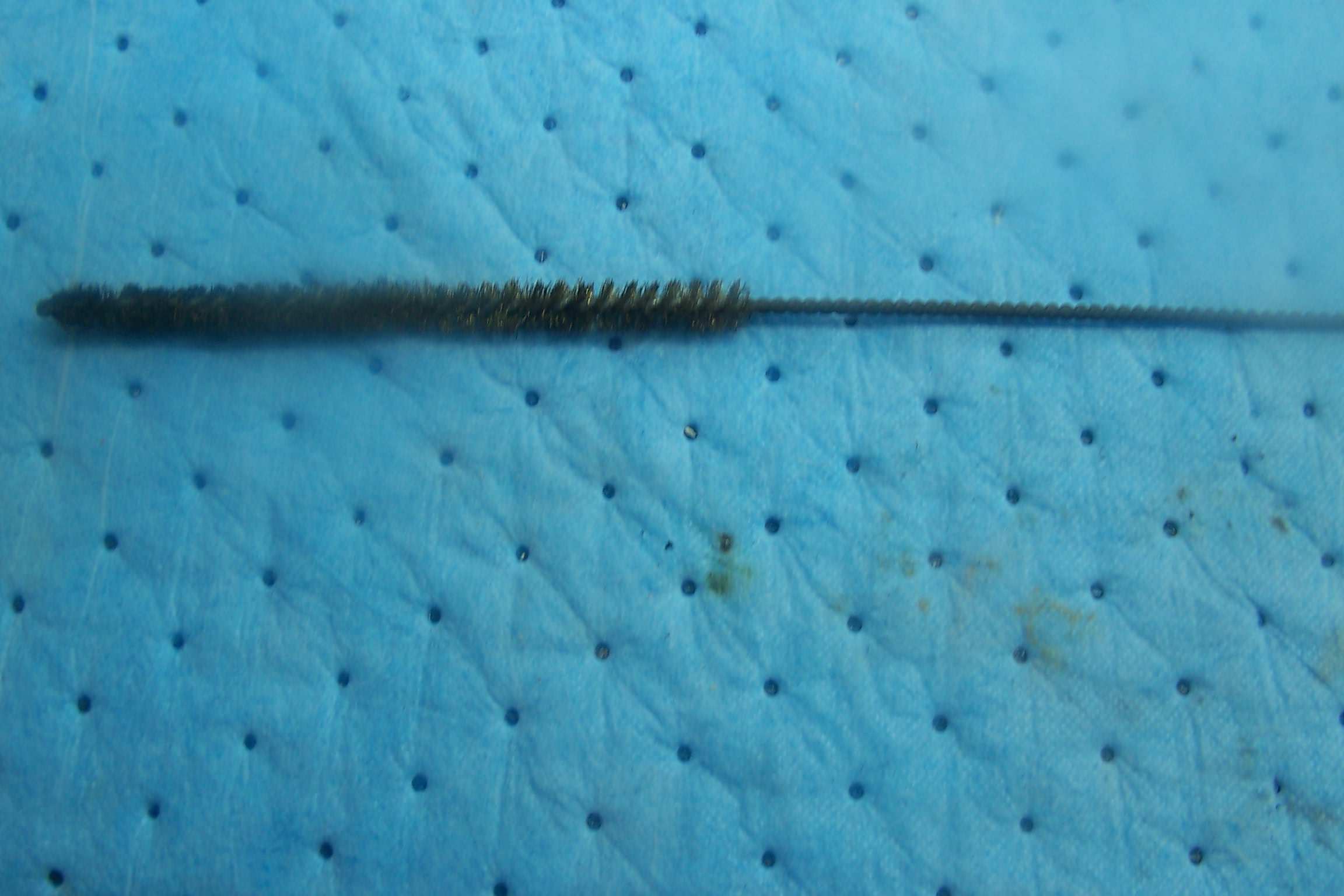

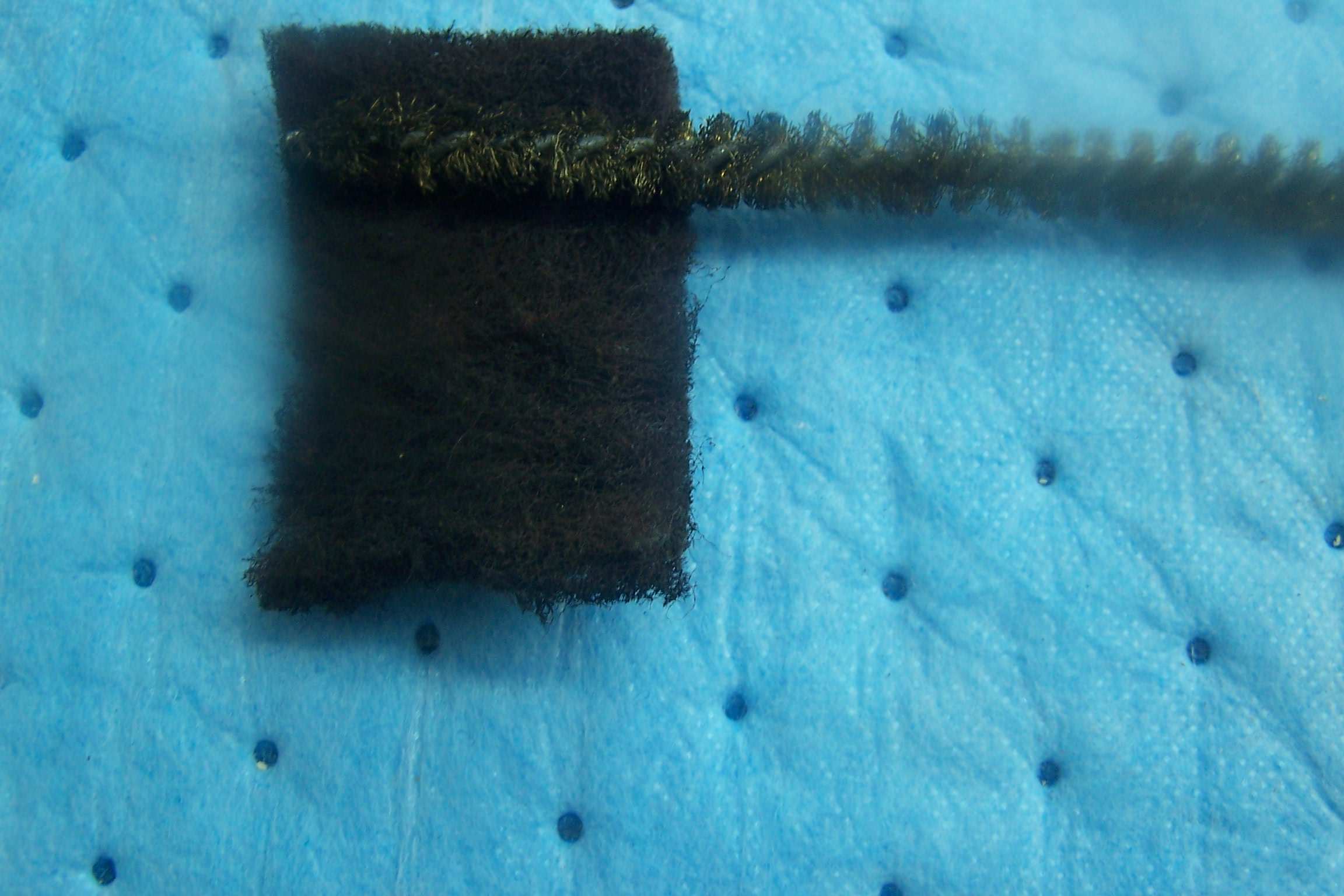

I used a brass 1/2" round brush that I chucked into my drill. I wrapped a 2" X 3" piece of red 3M scouring pad around the brass brush and polished up the bores. Here is some pics of the brush and 3M pad. If your O rings and rubber parts are ok just clean em up and re-use them. When you put the shuttle valve back in, make sure the groove is directly below the area where your switch goes in. If not you can move it with a small pick. If you want or need new O rings I also included a pic of the three kits needed to redo the rubber parts. Put it back together with some clean brake fluid and make sure your shuttle valve is centered properly or your light will be on again. Good Luck.









kellydw

Member
Joined
Feb 15, 2024
Messages
17
Reaction score
7
Location
Sydney Nova Scotia Canada
Take your time dis assembling and take pictures so you know how it goes back together. Don't lose that little spring and brass hat at the bottom of the metering valve assembly like I did. Once you have that all out of the unit, you can use a 1/8" long punch to push the shuttle valve brass fittings out along with the seat for the rear brakes.
I used a brass 1/2" round brush that I chucked into my drill. I wrapped a 2" X 3" piece of red 3M scouring pad around the brass brush and polished up the bores. Here is some pics of the brush and 3M pad. If your O rings and rubber parts are ok just clean em up and re-use them. When you put the shuttle valve back in, make sure the groove is directly below the area where your switch goes in. If not you can move it with a small pick. If you want or need new O rings I also included a pic of the three kits needed to redo the rubber parts. Put it back together with some clean brake fluid and make sure your shuttle valve is centered properly or your light will be on again. Good Luck.

View attachment 132368

View attachment 132369

View attachment 132370

View attachment 132371


kellydw

Member
Joined
Feb 15, 2024
Messages
17
Reaction score
7
Location
Sydney Nova Scotia Canada
Geez thanks a lot for the info - even have the brush and scouring pads so I'm good to go. ***** of a spot to get at to remove it and all the lines but we'll manage. Thanks again


sixpactogo

Well-Known Member
Joined
Mar 4, 2017
Messages
375
Reaction score
144
Location
Eau Claire, Wisconsin
Geez thanks a lot for the info - even have the brush and scouring pads so I'm good to go. ***** of a spot to get at to remove it and all the lines but we'll manage. Thanks again
If you can wait a day or so, spray all the line nuts with some PB blaster or some rust inhibitor and let it do its thing first.


moparleo

Well-Known Member
Joined
Oct 17, 2011
Messages
7,112
Reaction score
1,902
Location
So. Cal. Riverside area Moreno Valley
Instead of putting off a potential brake failure, Brake fluid absorbs water.
The brake system will rust and degrade from the inside out. Your brakes are the most critical safety item oin yor car.
I would and have done this many times over the years.
Re place the brake system components from front to rear and then flush the brake fluid from the system every 2 years.
All of the brake system componnnets are available new and do not cost much.
New master cylinder, never rebuilt. Brake booster, all metal brake lines, do not use s/s. Front calipers, available rebuilt with all brake hardware. new front brake hoses, rear brake hose, new wheel cylinders. A perfecty time to also replace rear shoes with bonded lining, new hardware and self adjusters. Front bearing replace and seals.
Remember that the brake system is over 50 years old.
For a few hundred dollars you can have a car that brakes safely and quickly.
Buy quality parts for the brake system and have peace of mind.
Just cleaning the crud from a few inches of brake lines is just asking for problems.
Look at it like your brake system is you bodies circulatory system. You have a have a blockage in your arteries.
You can just try to clear the artery by pushing the blockage farther down your arteries and cause a heart attack or replace the artery and remove the blockage.
You don't want blood clots in your brake system.
Proper maintenance is key to a car giving you years of trouble free service.
Just like regular oil changes. You don't wait until the oil light comes on to change the oil, don't treat the brake or cooling system that way either.
