steering center link challenge '73 Challenger

[Brads70]

In Moparleo's picture, post #16 you will notice the idler and pitman arms are parallel. Are yours? I ask as the fast ratio arm I have has no master spline so you could get it a tooth out and cause the problem you have? Just a thought....



[Buckminster]

Who ever did the alignment should have spotted right off the bat that the short tie rod sleeve is incorrect.
The proper method of initially getting your readings requires that you do what is called a caster swing.
This is turning the wheels all the way to the left and then all the way to the right.
This would have instantly shown that the lock to lock was off on one side.
Factory sleeves should be approximately 8" long.
Get the car aligned and give the tech the new sleeve(s) to install at that time to properly do the toe adjustment.

Thank you!



[Buckminster]

When you replace the sleeve. Make all 4 tie rod ends equal.count the threads and make equal. I don't think it's a k frame issue but check anyhow.

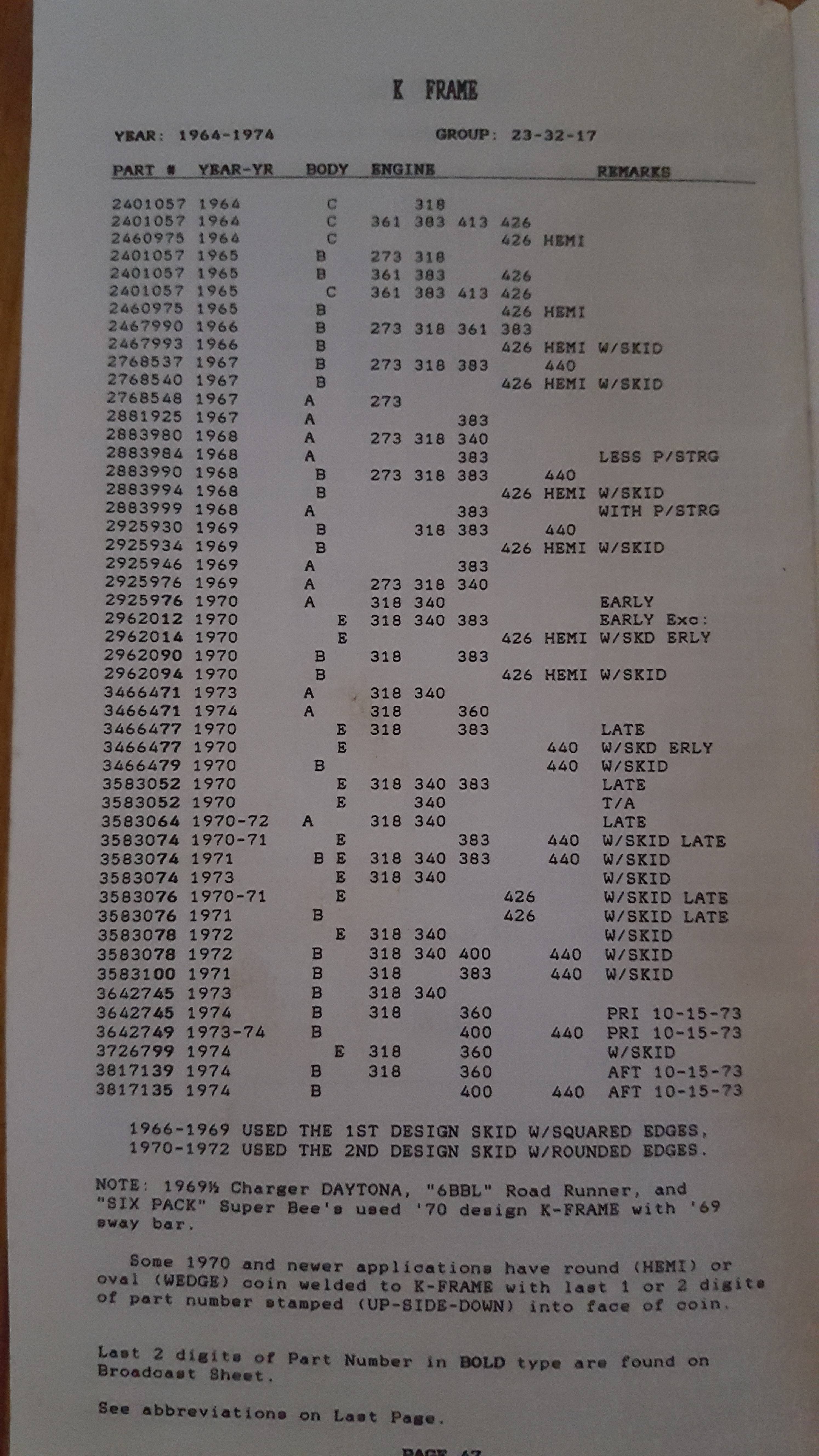

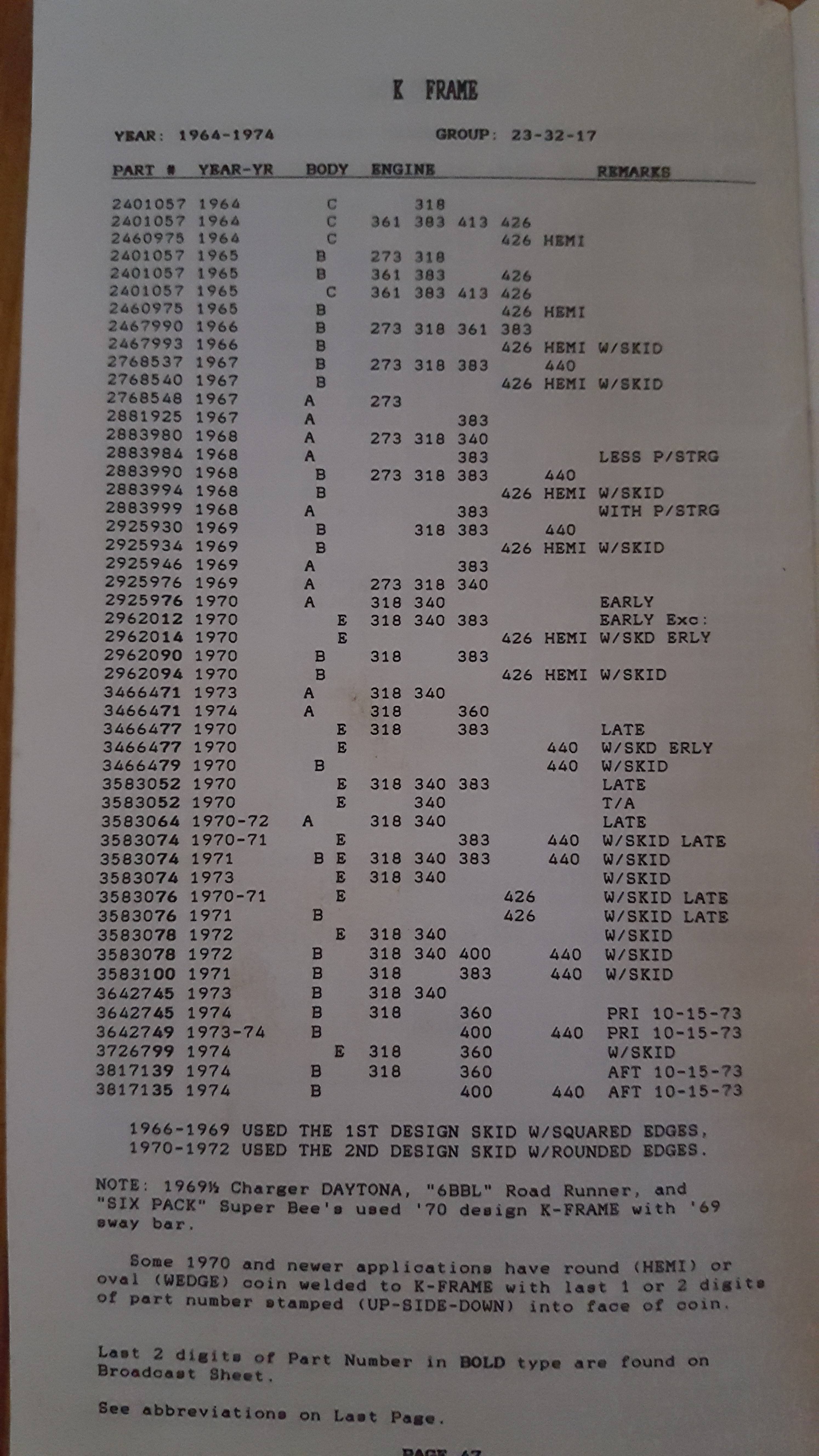

View attachment 102567

Thanks!



[Buckminster]

Thanks! The video introduced information that I had not seen before. That is super helpful.



[Hemi T/A]

excellant info



[Buckminster]

To close out this thread the problem has been resolved. It appears that the pitman arm was off one tooth. When i moved the pitman arm, the tie rod sleeves became even, the steering angle is now the same side to side. Furthermore, with the increased positive caster, the car now drives almost perfect.

thanks all who helped provide informatoin to help me trouble shoot this installation!



[Challenger RTA]

Thanks for following through and letting us know.
