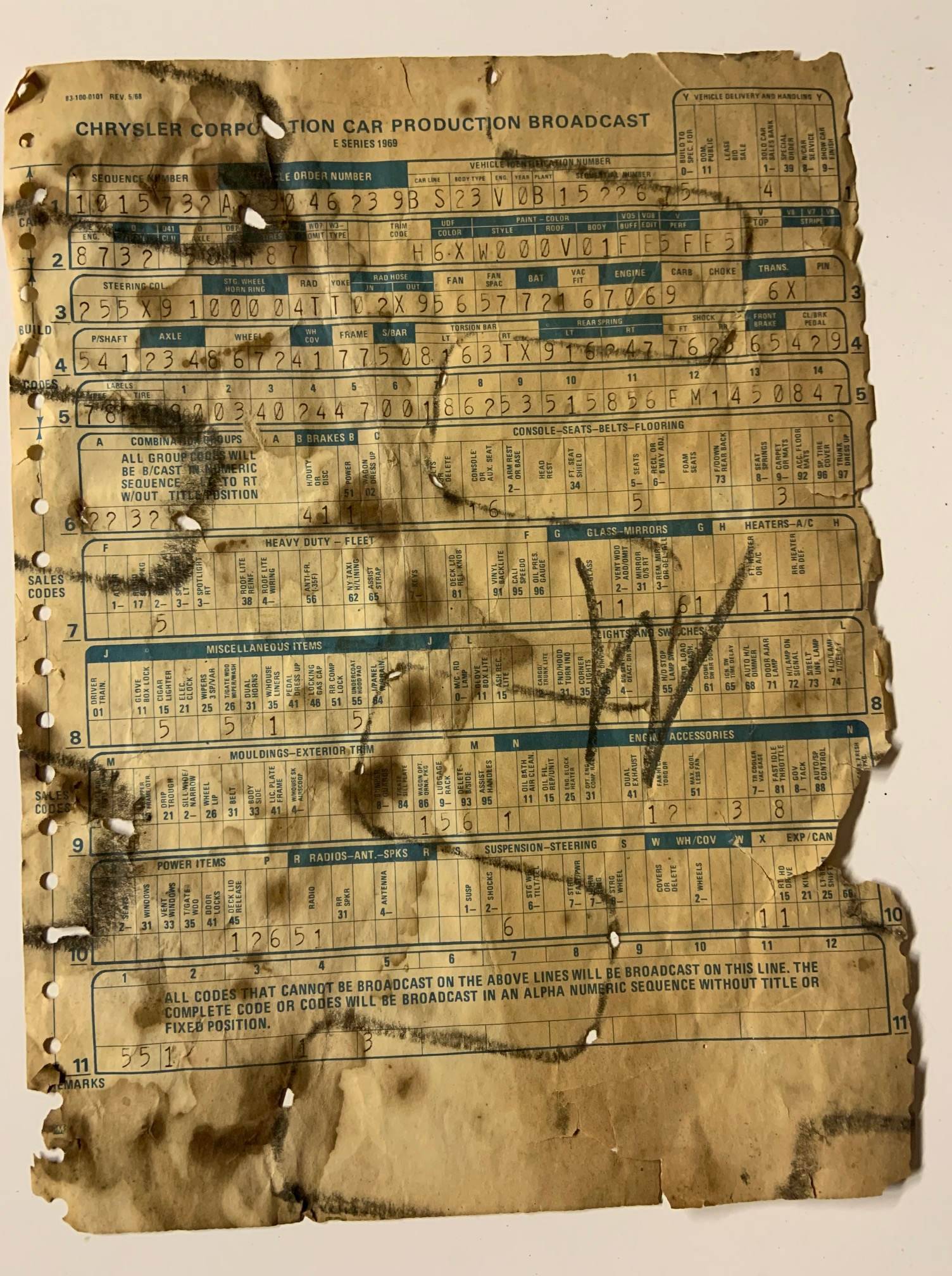

1970 cuda build sheet read out

[440WB]

1970 cuda build sheet read out

I have checked Ebodies.org using the sheet read out options
it does not have or look the same as this sheet with the locations and call out options?

any other place to go for more accurate read -

I know its dark and hard to make out -



[pschlosser]

Even though this is printed on the 1969 form, the location of the codes looks like a 1970 broadcast sheet to me. I would put these numbers into the boxes of the 1970 form, and then feed them into the decoder.

This seems a fun challenge. I can help if you want. Let me know.



[440WB]

I did put 3/4 of it of what I can make out onto their sheet but I’m missing a bunch of other things that are not matching up on the build sheet and on their template?



[pschlosser]

Can you give me one example? Maybe I can give it a go. I love a good puzzle



[Cuda Hunter]

Agree, codes will not make sense on the 69 sheet.
Definitely have to be typed into a 70 sheet.

October 09 of 69 SPD.



[Cuda Hunter]

I can't find the post over on ebodies org. Can you link me to it?



[440WB]

1970 E-Body Build Sheet Decoder

see if this works



[Cuda Hunter]

Yes, it takes me to the decoder.
Was wondering if you had a post asking the resident knowledgeable folks about the build sheet.
I've never found a build sheet in an e body, much less an early production 69 in a 70.
I'm curious about the build sheet as well.
What are the codes on the bottom that state they are not able to be broadcast above.



[440WB]

Yes, it takes me to the decoder.
Was wondering if you had a post asking the resident knowledgeable folks about the build sheet.
I've never found a build sheet in an e body, much less an early production 69 in a 70.
I'm curious about the build sheet as well.
What are the codes on the bottom that state they are not able to be broadcast above.

What are the codes on the bottom that state they are not able to be broadcast above.

are you referring to the last line #11
looks like they may have added a code for a line from 1 - 12 with having # 1,2,4,5 column with digits - could this be for the fender tag?



[440WB]

https://www.bing.com/ck/a?!&&p=0cd2...0LWRlY29kZXItZm9yLWUtYm9kaWVzLjE0MDQ1Lw&ntb=1

I also have found this link - from CODY a member here 2017
1970 mopar build sheet broadcast decoder



[440WB]

I have not made a post asking the resident knowledgeable folks about the build sheet.

was hoping what I posted here would gain interest?



[440WB]

what is the mark W in crayon ?
maybe the person who put it in the car?



[440WB]

on Line #10
import Canada has 1 1
above is an X = 1
next says RT HD Drive = 1
does that mean anything?



[440WB]

found this also should be helpful to find out the options

https://www.bing.com/ck/a?!&&p=9f84...0cDovL3d3dy5tb3BhcjEudXMvYnVpbGQuaHRtbA&ntb=1



[pschlosser]

Decode of BCS1970-BS23V0B152267:

1015732 - Vehicle Build Sequence
A 09 - Scheduled to be built October 1969 on the 09 Day
046239 - Vehicle Order Number (VON)
B - Plymouth Barracuda
S - Special Price Class
23 - 2 Door Hardtop
V - 440 V8 "Six pack" Three 2 Barrel Carburetors High Performance (8 Cylinder)
0 - 1970 Model Year (F-Series)
B - Hamtramck, MI
152267 - Serial Number (VIN)
Y05 - Build for USA Order
Y14 - Sold Car
E87 - 440 HP 3-2 Barrel Carburetors 390 Horse Power
D32 - 3 Speed Automatic Transmission (A727)
D58 - 4.10 Rear Axle Ratio in Dana 60 9.75"
D91 - Sure Grip Axle
T87 - F70 x 14 Raised White Lettering Polyglass
H - High Trim Grade
6 - Vinyl Bucket Seats
XW - White & Black
000 - Full Door Panel
V01 - Monotone Paint
FE5 - "Rallye Red" Color Paint
FE5 - Painted Top (no Vinyl Roof) "Rallye Red"
2 - E-Body Steering Column
5 - Steering Column for an Automatic Transmission
5 - Floor Shift Steering Column
X9 - Jewel Black Steering Column
1 - Manual Steering Column Shaft & Coupler
0 - No Column Shifter Indicator Light
0 - No Cruise Control
0 - No Ignition Key Lamp
04 - 3 Spoke Woodgrain Steering Wheel (Standard S81)
TT - Woodgrain Steering Wheel (Standard S81)
02 - Horn Button & 3 Spoke Pad (Standard S81 or Option A93)
X9 - Black Horn Pad
56 - 26" Radiator #2998956 for 440 & 426 Hemi V8 Auto & Manual Trans w/ Heater (or AC 440 only) Max Cooling
57 - #2863257 Inlet Radiator Hose for 383 & 440 w/ AC & Max Cooling
72 - Alternator #3438172 Single Pulley #2444478 Amps = 37
16 - Fan Assembly #2863216 w/ 7 Blades 18.5" Diameter
70 - Fan Drive Unit #2806070 Torque 7.25" Diameter
69 - Red Cap Top Battery #2642969 70 Amps / Group 27
6 - Longitudinal Sport Stripes (Vinyl Decal)
X - Black Stripe
54 - #1944154 Power Brake Hose Check Valve 1 WAY without AC
123 - 440 6 Pack w/ Auto Trans & Heater
48 - R4376 Holley 1970 440 Six Pack Auto Trans (Front R4382 & Rear R4383)
672 - #3410672 A727 Auto Trans w/ 440 6 Pack
41 - #2538941 Speedometer Pinion with 41 Teeth RED
775 - #2883775 Barracuda Propeller Shaft 42.60" Length x 3.25" Diameter w/ type 7290 yoke (2.625")
081 - 9 3/4 Dana Rear Axle 4.10 ratio (Sure Grip) 10" Drum & 7290 Yoke
63 - #2944474 = 14 x 5.5 Road Wheel (Class 2) "MAGNUM 500"
TX9 - Wheel Color "Black" in Dodge / "Black Velvet" in Plymouth
16 - #3420977 = 14 x 5.5 Painted Stamped Steel Spare Wheel
24 - #2944424 Wheel Trim Ring 14"
77 - #3466477 Crossmember (K-Frame) 318, 383 & 440 (440 w/ Skid) Engines
62 - #2835862 Front Sway Bar .88"
56 - Stamping #3400556 HD Front Shock (Part #3004960)
54 - Heavy Duty Rear Shock (Part #3400854)
29 - Front Disc Brake Hub assembly
781 - #1857781 Left Torsion Bar 41" x .92" (STD 426 Hemi & 440)
780 - #1857780 Right Torsion Bar 41" x .92" (STD 426 Hemi & 440)
034 - #3400034 Driver Side Leaf Spring E-Body Heavy Duty "Hemi" Suspension (#3420177)
024 - #3400024 Passenger Side Leaf Spring E-Body Heavy Duty "Hemi" Suspension (#3420176)
4 - Power Brake Pedal Bracket #2950874
7 - Automatic Trans Brake Pedal #2950878
0 - No Clutch Pedal
0 - Rubber Pedal Pads
18 - #3412418 Emission Decal
62 - #3402062 Tire Pressure Decal
53 - #3404553 Exhaust Pipe w/ Resonator Left Side Barracuda 440
51 - #3404551 Exhaust Pipe w/ Resonator Right Side Barracuda 440
58 - #3404558 Muffler left side
56 - #3404556 Muffler right side
E - E-Body Platform
M - Manual Steering
1 - Ride Height
45 - Power Disc Brakes w/ B41 (A53 "Trans Ams" w/ B42)
08 47 - Built Sheet Print Time 08:28:12
A22 - Elastomeric Bumpers Front & Rear = Front and Rear bumpers keyed to Exterior Color, Left Hand Painted Remote Racing Mirror, Right Hand Painted Racing Mirror and Belt Molding
A32 - Super Performance Axle Package = 4.10 Ratio in a 9 3/4 Dana Axle w/ Sure Grip, 7 Blade Torque Drive Fan, 26" Radiator w/ Shroud, Hemi Suspension Handling Package and Power Front Disc Brakes.
B41 - Front Disc Brakes w/ 10" Rear Drums
B51 - Power Brakes
C16 - Console w/ Woodgrain (and Seat Belt holder in the back of the console)
C55 - Bucket Seats
C93 - Carpeting
F25 - 70 AMP Battery Heavy Duty (Series 27 with RED Caps)
G11 - Tinted Glass All Windows
G36 - Painted Racing Mirrors: Driver Side Remote Adjusting / Passenger Side Manual Adjusting
G41 - Prismatic Rear View Mirror
H11 - Front Heater
J15 - Cigar Lighter
J25 - 3 Speed Variable Wipers
J31 - Dual Horns
J45 - Hood Tie Down Pins
M21 - Drip Rail Moldings
M25 - Body Sill Moldings
M26 - Wheel Lip Moldings
M31 - Body Belt Moldings
M71 - Front Colored Bumper
M72 - Rear Colored Bumper
M83 - Rear Bumper Guards
M88 - Deck Molding Treatment (Tail Light Panel Molding)
N41 - Dual Exhaust
N42 - Bright Exhaust Tips
N65 - Torque Drive Fan
N51 - Maximum Cooling
N96 - Carb Fresh Air Package SHAKER
R11 - 2 Watt AM Radio (Music Master)
S15 - Extra Heavy Duty Suspension / Hemi
S25 - Heavy Duty 1" Shocks Front & Rear
S31 - Front Sway Bar
S81 - Steering Wheel - Woodgrain Sports
W23 - Road Wheels with Trim Ring (Magnum 500)



[pschlosser]

what is the mark W in crayon ?
maybe the person who put it in the car?

From tire-kicking discussions at car shows: Yes, this seems to be the consensus.

The W (in this example) may be the initial or signature of the person double checking the built vehicle against the broadcast sheet for accuracy. The person initials it and tucks it into one or more hidden locations as the vehicle moves down the assembly line.



[440WB]

well thank you pschlosser for the options decode!
sure has a full discription -

rubber bumpers is a plus -
buckets - center council floor shift
410 dana - dual exhaust = tips
front power disk brakes - hood pins
dual mirrors - lots of trim with tail panel
shaker -
a/c ( must be the maximun cooling )



[440WB]

question s -

S 81 wood grain steering wheel - is this the standard 3 spoke with textured vynil cover type?
( not a rim blow ? )

C 93 is this black carpet?

is there an option for the dash gauges ?



[413]

The gauges are an option and yours don’t have it. But with what it does have your are in good shape.



[Cuda Hunter]

C93. Yes black carpet. XW is a black and white interior so the carpet would be black. No white carpet available.
