1972 Cuda Alignment specs

Chuck

Member
Joined
Apr 23, 2023
Messages
11
Reaction score
2
Location
17776
I need alignment specs for my Cuda.

Last edited:

Challenger RTA

Well-Known Member
Joined
Oct 28, 2018
Messages
3,443
Reaction score
1,824
Location
PA Flood city
Frame
CUDA

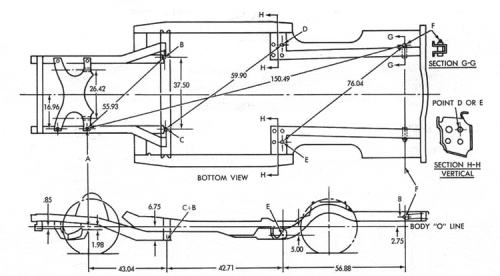

baracuda 1970 frame .gif

Last edited:

Challenger RTA

Well-Known Member
Joined
Oct 28, 2018
Messages
3,443
Reaction score
1,824
Location
PA Flood city
Frame
Challenger: For cuda don't use measurements that cross center section.

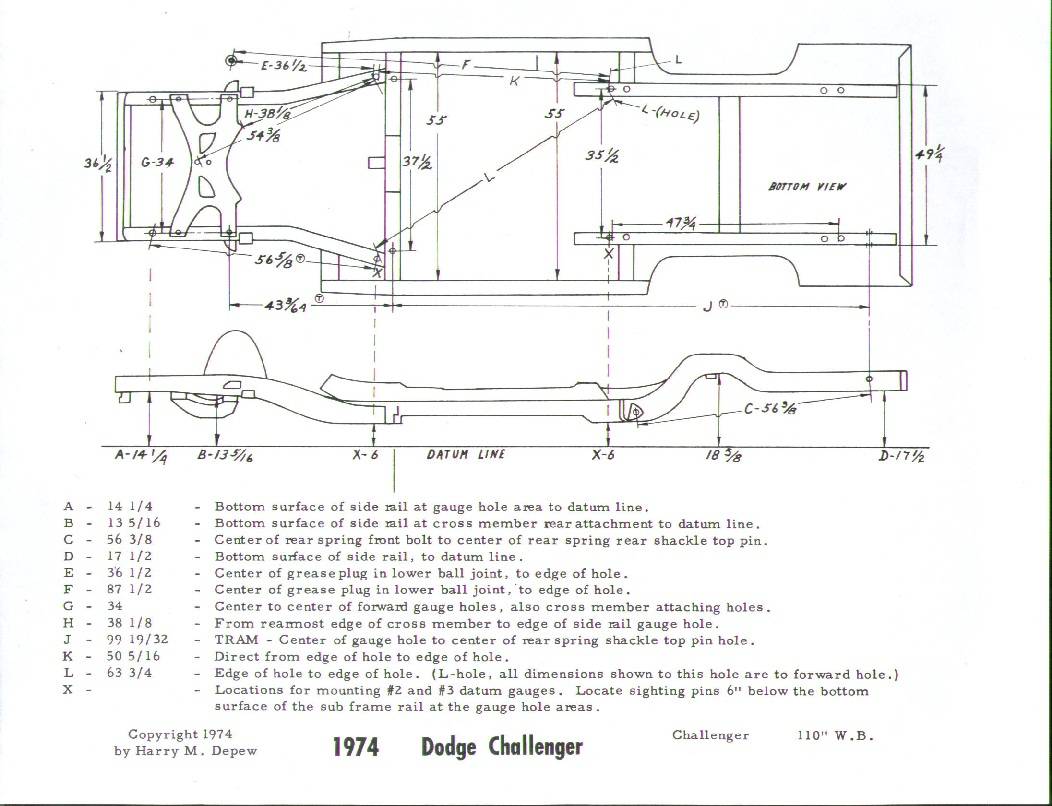

challenger frame dimensions DATUM.jpg

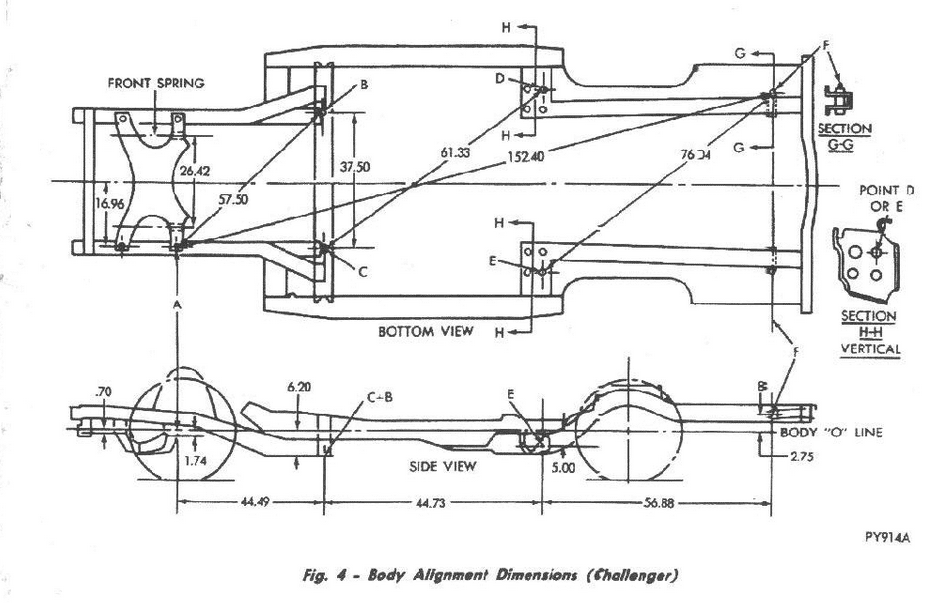

Screenshot 2023-04-23 at 12-45-39 Body Allinment Dimensions (Challenger).bmp (BMP Image 994 × ...png

Last edited:

Chuck

Member
Joined
Apr 23, 2023
Messages
11
Reaction score
2
Location
17776
Frame alignment or front end?

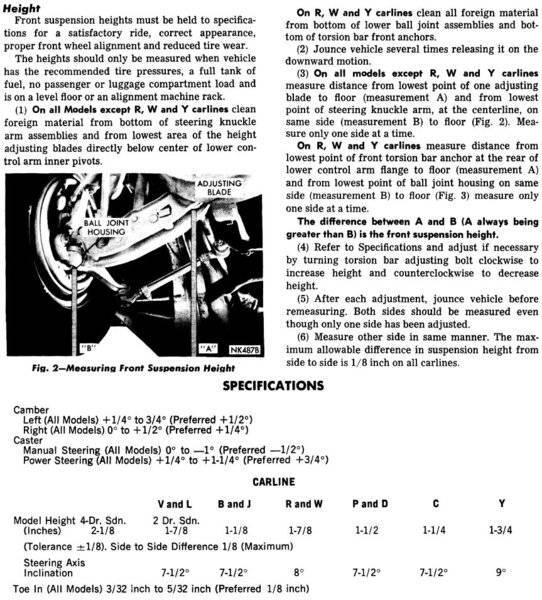

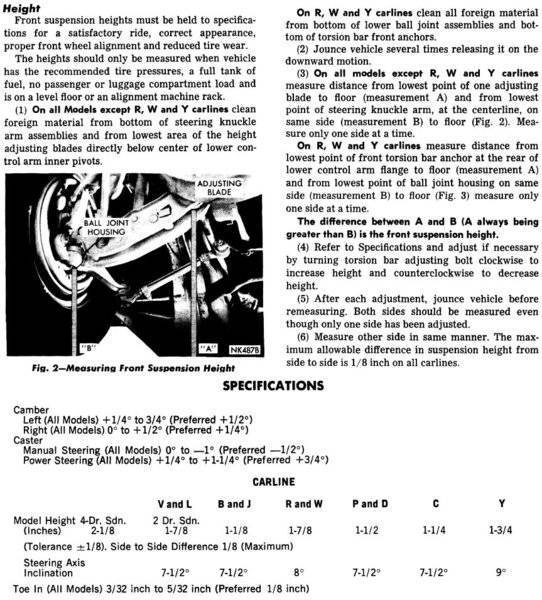

Wow, Thank you Challenger RTA, only if I could spell alignment!! I need The front end alignment specs to get it aligned.
I see you have provided them below. I have to complete my welcome page to tell you guys about my car.
Thank you again, Chuck


moparleo

Well-Known Member
Joined
Oct 17, 2011
Messages
7,116
Reaction score
1,914
Location
So. Cal. Riverside area Moreno Valley

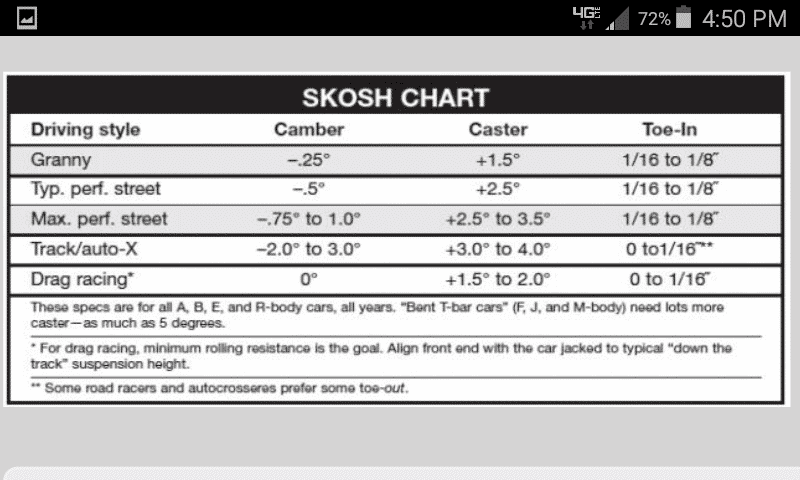

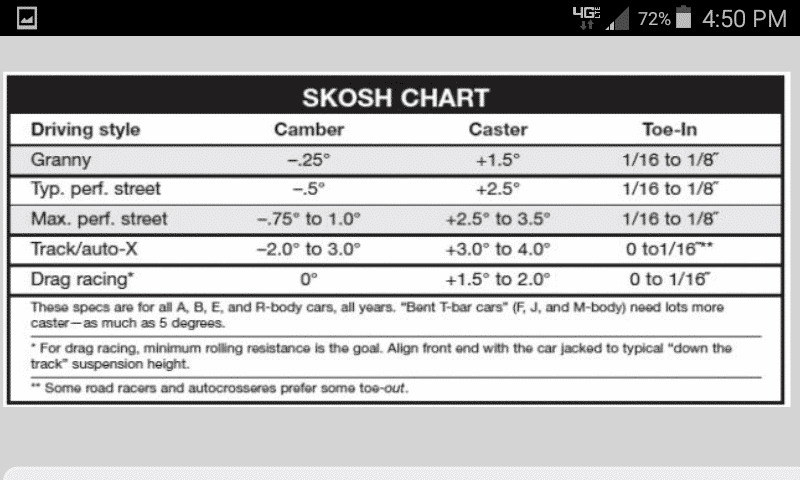

Alignment specs are always assuming the factory rim and tire size front and rear. Factory ride height. Factory suspension.
Any vehicle variations from this means that the specs will not necessarily be correct for that situation.
In the end you must rely on the expertise of the alignment technician.
