Map light

Joined
Mar 3, 2024
Messages
15
Reaction score
4
Location
New York
73 challengee rallye
What lights are supposed to light with the map light switch?
Is the map light supposed to light when the doors open?

I have a light to the right of the cigarette lighter. But all wiring is missing

Thanks


Juan Veldez

Well-Known Member
Joined
Jan 1, 2011
Messages
796
Reaction score
362
Location
Nampa, Idaho

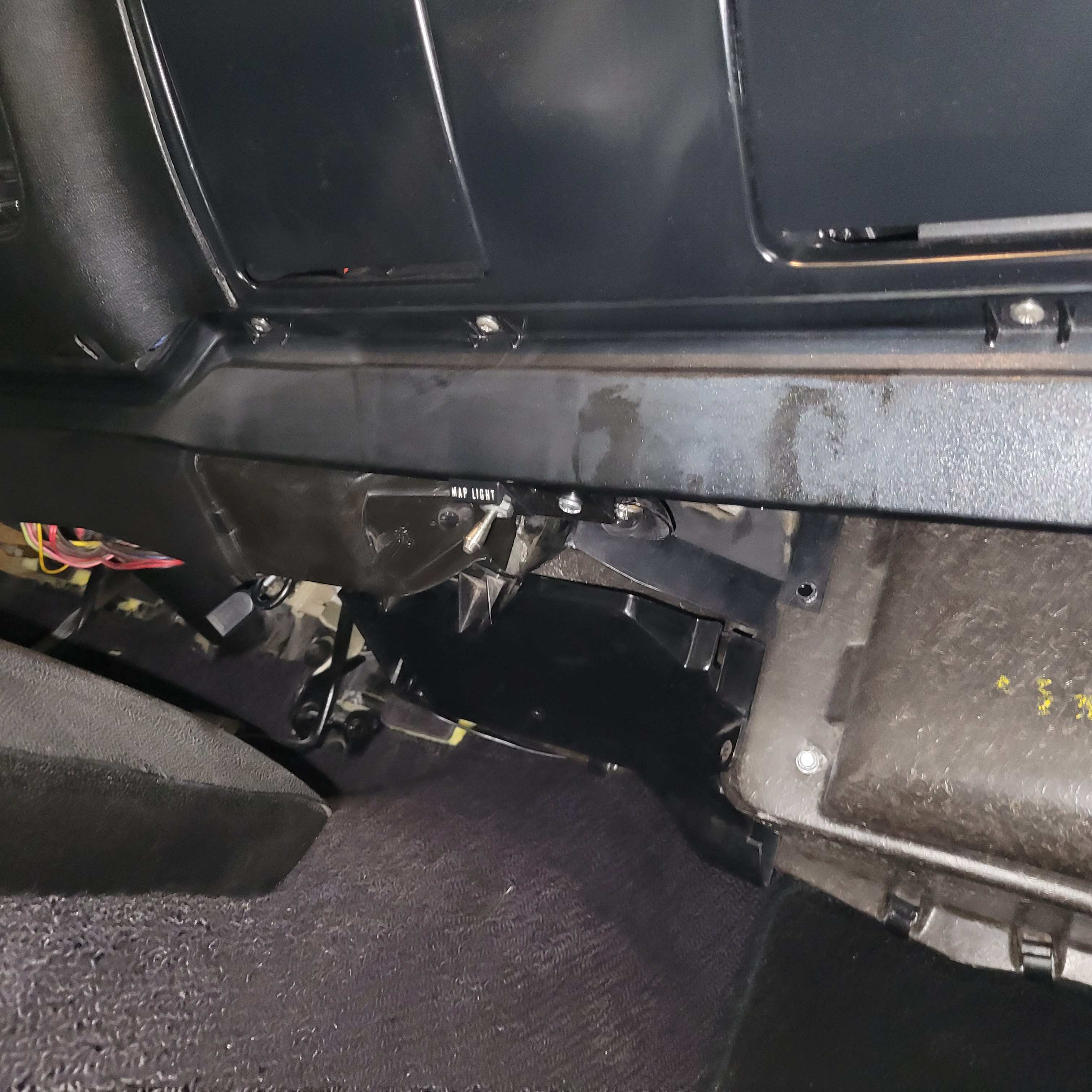

Map Light-2024-06-24_064026.jpg


Challenger RTA

Well-Known Member
Joined
Oct 28, 2018
Messages
3,357
Reaction score
1,780
Location
PA Flood city

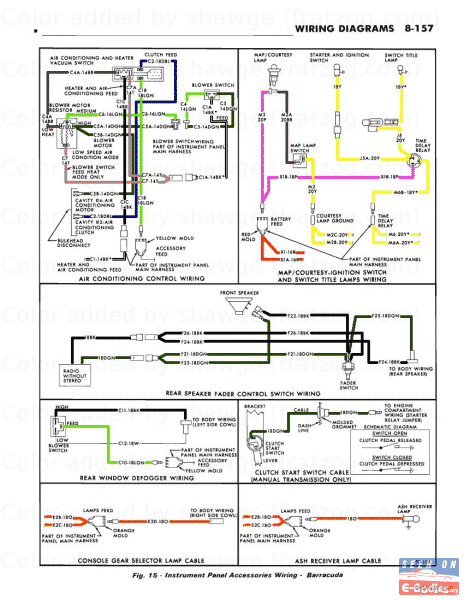

The diagram shows power is feed from the red connector to the pink wire. The switch completes the circuit to ground. So no. The map light is it's own circuit.


Last edited:
Joined
Mar 3, 2024
Messages
15
Reaction score
4
Location
New York
Thank you. It looked like there had been both a 12v supply and door circuit near the switch. So wasn't sure. I've also seen posts saying there was a relay on some models, not sure why.

But all's good, thanks for the wiring diagram.

Carl


Challenger RTA

Well-Known Member
Joined
Oct 28, 2018
Messages
3,357
Reaction score
1,780
Location
PA Flood city
You ask: What lights are supposed to light with the map light switch? Just the map light.
The door switches and map light are grounds that complete the circuit. In the diagram it shows what is a delay relay. That is a different circuit and it works different.

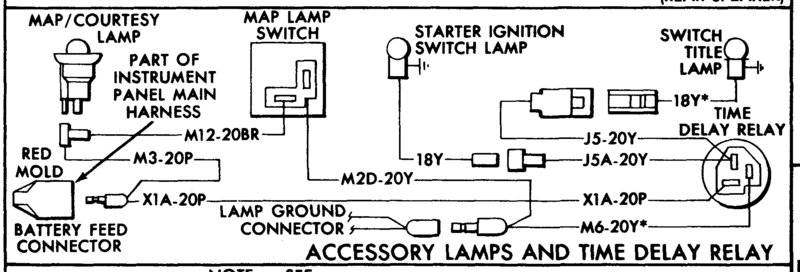

Here is another diagram that is eraser to understand. Two different circuits that control the map light. All grounds have to be good in order for it to work.
I took me some time to find it. This is the easier one to understand.

challenger time-delay-relay-jpg-1024614406.jpg

Last edited:

MoparCarGuy

Well-Known Member
Joined
Jun 28, 2020
Messages
690
Reaction score
587

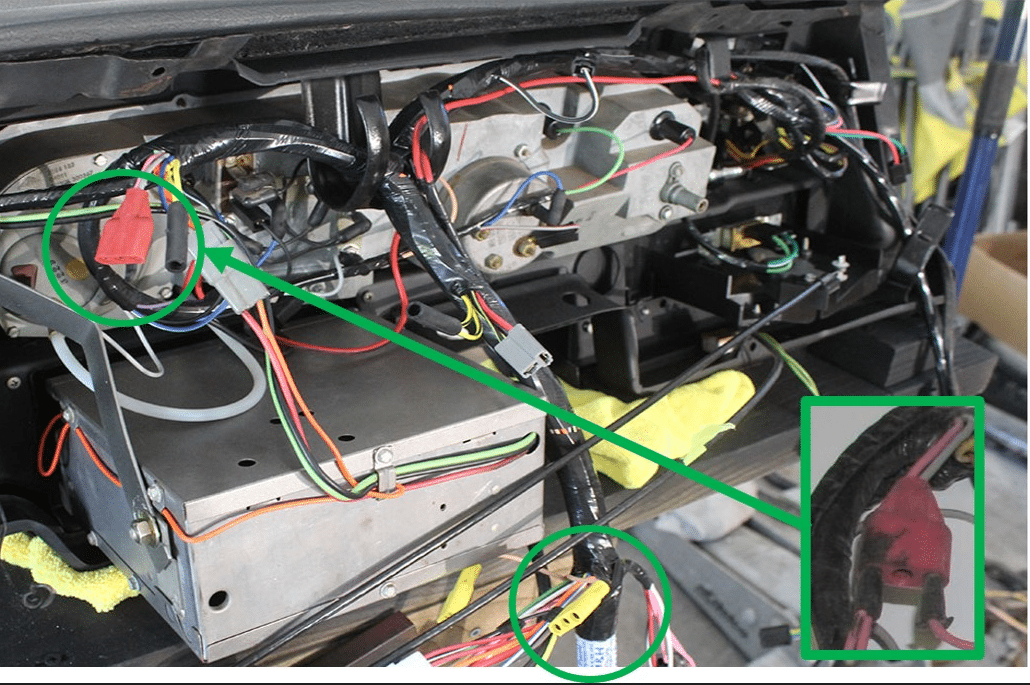

The red accessory feed in Challenger RTA's electrical diagram is the one circled in green below.
It is a molded female connector for three accessories. There is another accessory feed that is yellow (2nd green circle) but you need the red one. The single black female connector with the yellow wire is the map lamp ground ⏚ and is in the same green circle.

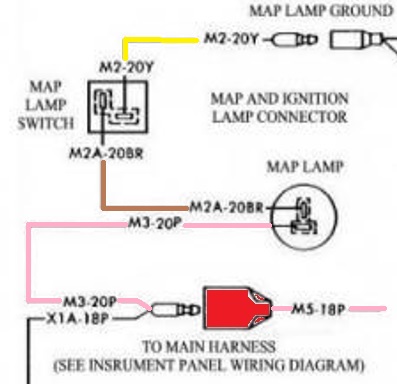

Should not be hard to find the red connector under the dash and directly above the radio area. An extract for the map light from an earlier 1970 electrical diagram for the A01 - Light Package is to the right.
Map Light Power from Red Accessory Feed - Ground from Map Light Switch.jpg

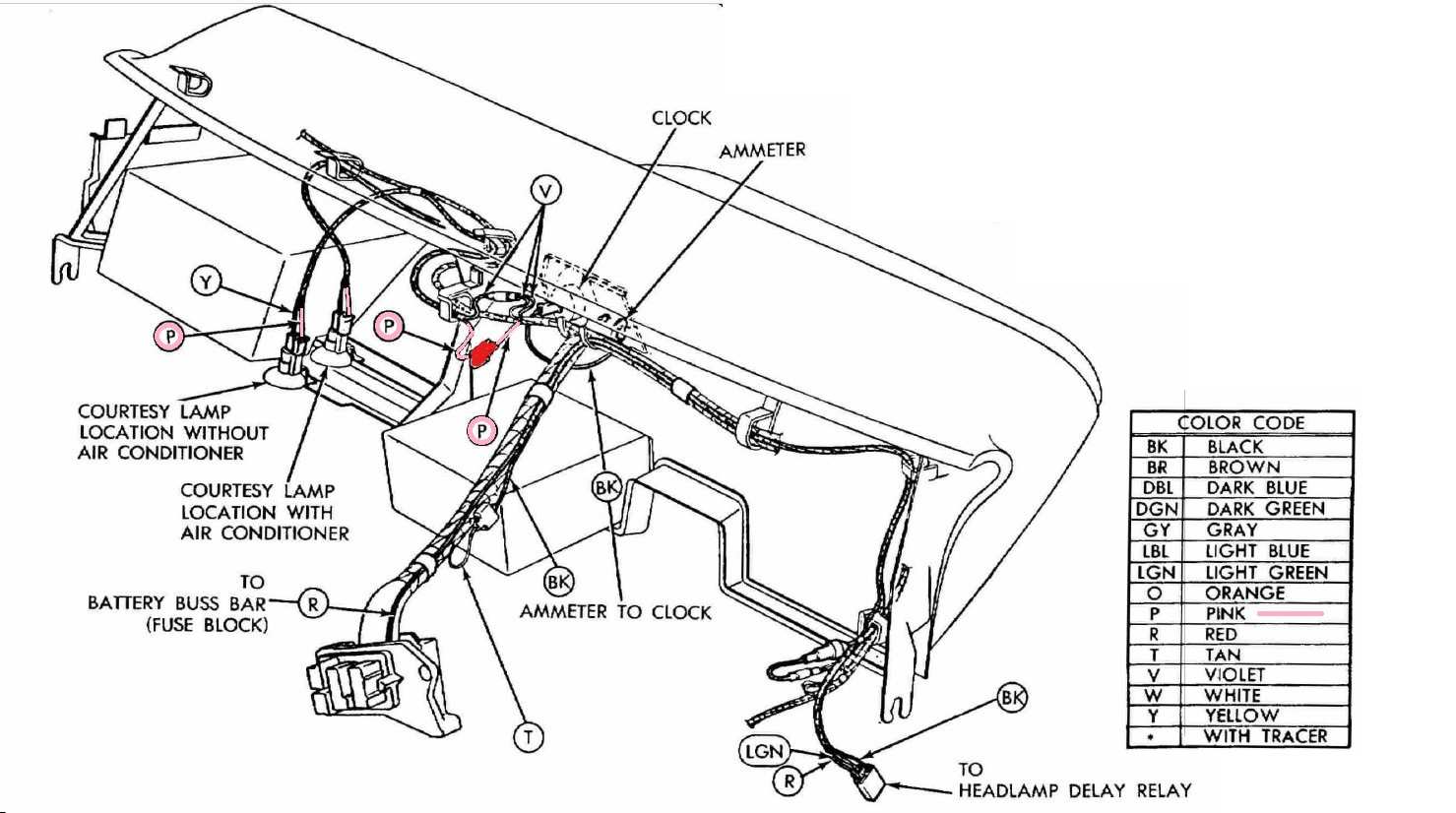

Dash Harness with Courtesy Lamp.jpeg

Last edited:

Steve340

Well-Known Member
Joined
Sep 19, 2016
Messages
982
Reaction score
396
Location
New Zealand
The map light switch has two positions. In one position the map light illuminates when you open either of the doors - in the other it switches the map light on even of the doors are closed.


MoparCarGuy

Well-Known Member
Joined
Jun 28, 2020
Messages
690
Reaction score
587
The map light switch has two positions. In one position the map light illuminates when you open either of the doors - in the other it switches the map light on even of the doors are closed.
Now that makes sense as a feature but I do not see an alternate power feed from the time delay relay with a door-activation function.
Must be a different diagram than the one below.
Some wire numbers/colors differ slightly but the basic layout remains the same for the map light.

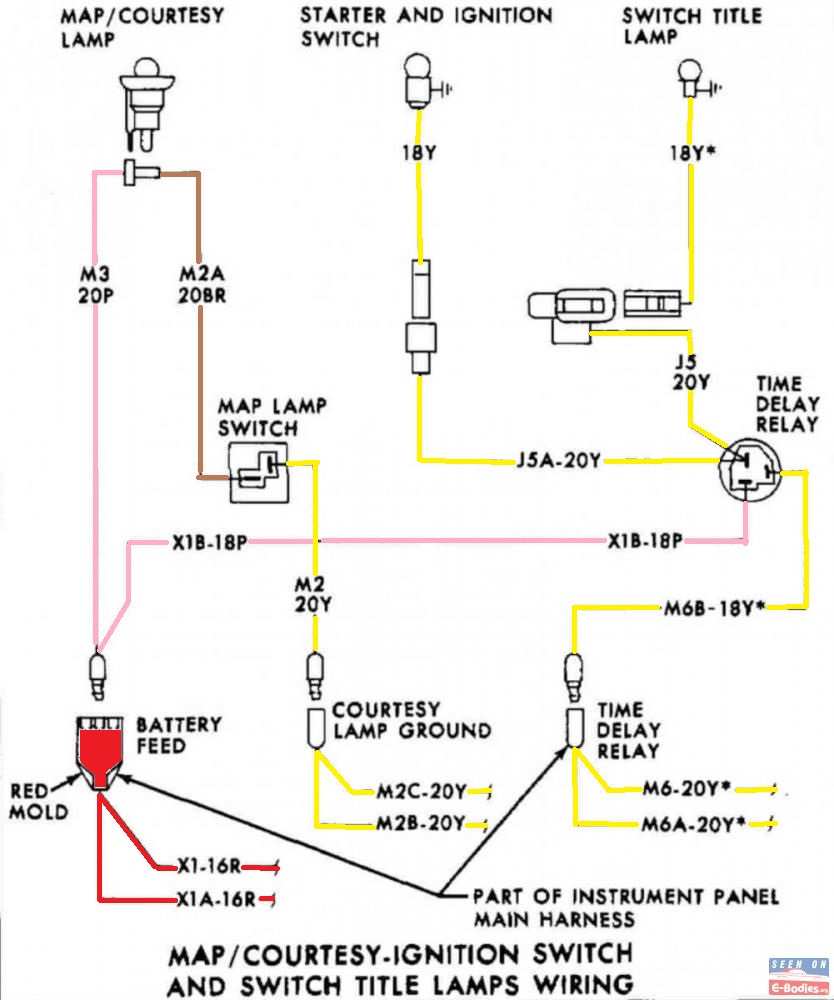

a01 light.jpg

Last edited:

MoparCarGuy

Well-Known Member
Joined
Jun 28, 2020
Messages
690
Reaction score
587

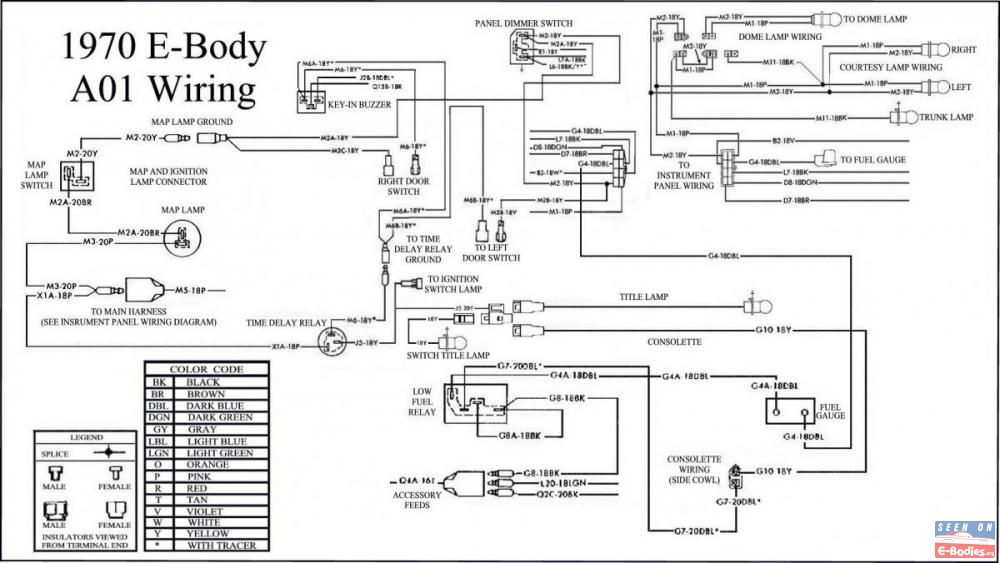

I had this diagram which shows the right door switch supplying an alternate ground if the door is open (switch closed). It appears to allow the door switch to control the map lamp's ground. Works when the normal M2A-18Y ground is taken away and the map light switch is in the ON position. Tricky to figure out even with the diagram below.

Joined
Mar 3, 2024
Messages
15
Reaction score
4
Location
New York
They used crazy wiring schemes back in the day. Not as bad as the British cars. But why they didn't just add a diode I have no clue.
I have it all back working again.
Thanks everyone for the help and wiring diagrams.
