I am working on the inner piece first, then will do the same for the bottom section of the quarter panel patch. Taking this real slow since I have not done this type of bodywork/welding before!

Good idea to start in an area that is hidden, then move on to the areas that are more visible. You might want to practice welding on some of the scrap pieces you cut out if you haven't already. Take your time and you should be fine:thumbsup:


340challconvert

Well-Known Member
Joined
Feb 13, 2011
Messages
5,353
Reaction score
2,861
Location
Parsippany, NJ
Started to drill down on cutting and fitting the quarter panel patches.

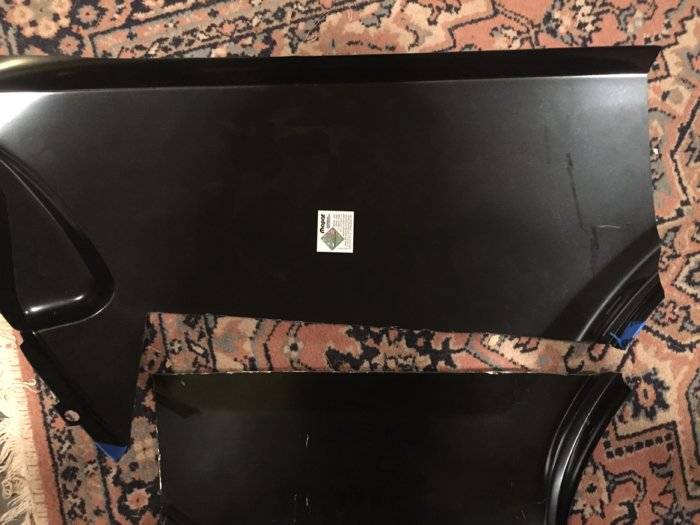

Decided to order the left side AMD quarter panel patch to compare to the Goodmark Panels

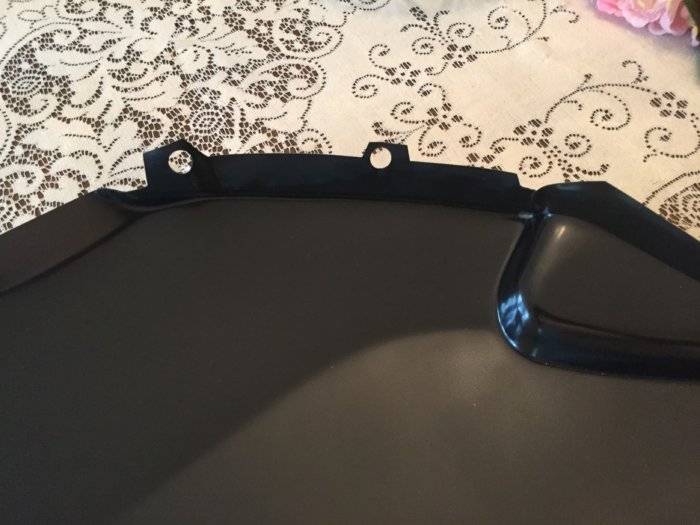

Main difference seems to be in the lower area where there are "line up" holes drilled at the edge of the panel. AMD has them, Goodmark does not.
Additionally the two small sections of metal that juts out are slightly smaller then the AMD units. The Goodmarks are not bad but not as accurate as the AMD's. Nice Mopar sticker on the AMD!

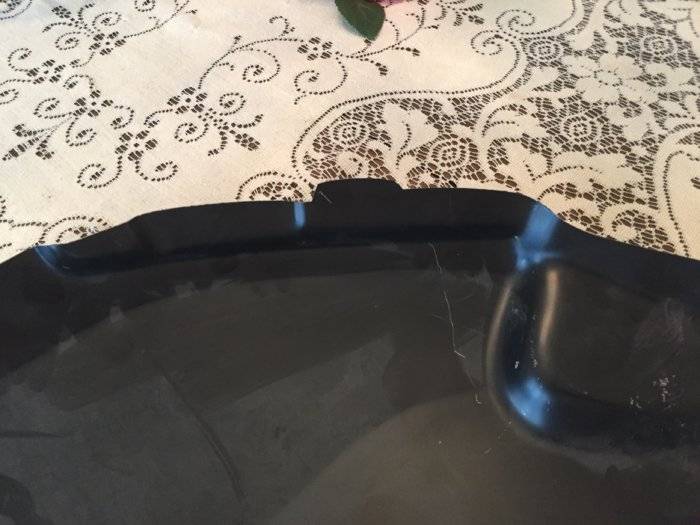

(1st pic is the Goodmark, 2nd AMD)
Dino2 (1).gif






340challconvert

Well-Known Member
Joined
Feb 13, 2011
Messages
5,353
Reaction score
2,861
Location
Parsippany, NJ

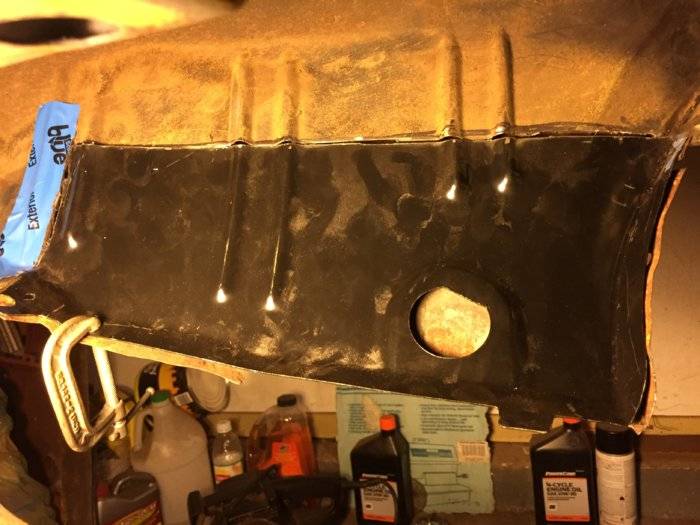

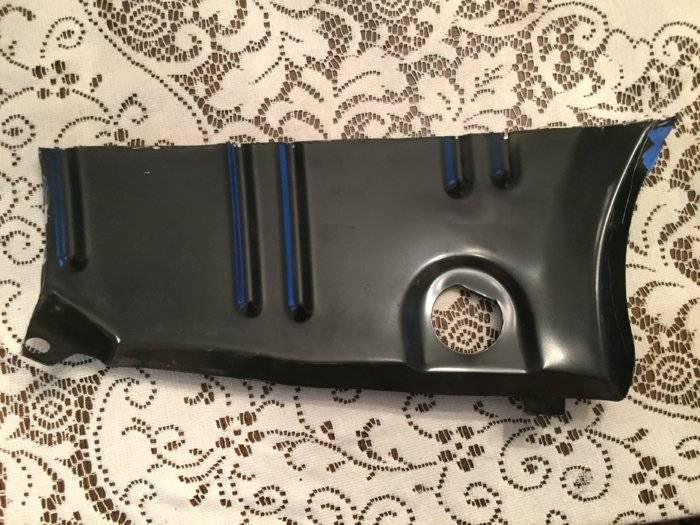

Cut the patch from a new AMD panel for the bottom of the trunk extension. Just used a cutting wheel and a homemade template.
Top of original panel is in good shape

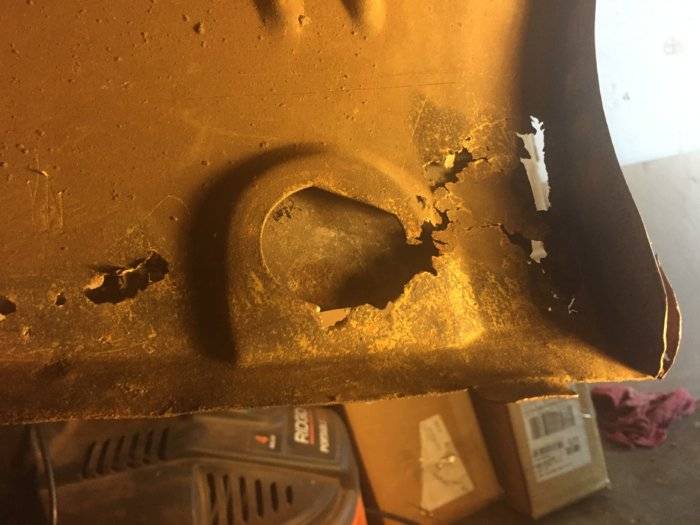

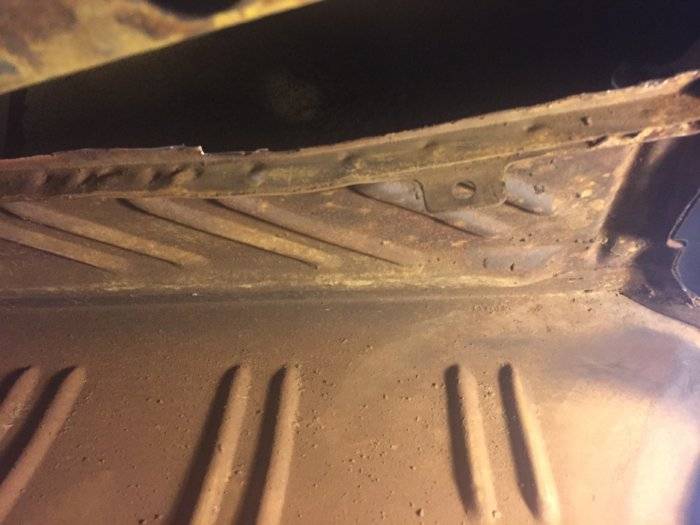

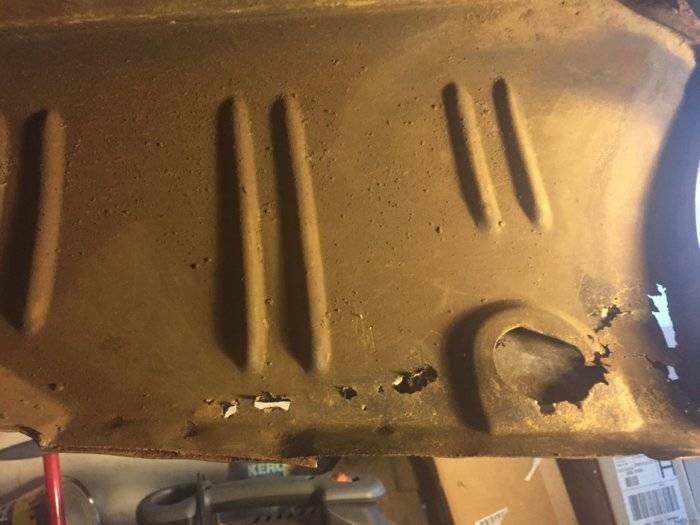

Rust is at the bottom on both the trunk extension and quarter panel.
Plan is to do patch of bottom of trunk extension first in order to maintain correct alignment for the outer quarter patch.
Dino2 (1).gif





Last edited:

340challconvert

Well-Known Member
Joined
Feb 13, 2011
Messages
5,353
Reaction score
2,861
Location
Parsippany, NJ
Roughing in the left side bottom of trunk extension. Not too bad for the first attempt!

Found that the bottom of the quarter was patched poorly prior to me buying the car in 1979 with a sheet of aluminum and bondo covering the rust!
Dino2 (1).gif





Last edited:

Adam

Well-Known Member
Joined
Dec 25, 2012
Messages
1,669
Reaction score
732
Location
Washington
Save the old gas tank sending wire grommet if it is usable, they are hard to find...


moparlee

Well-Known Member
Joined
Jul 25, 2011
Messages
3,089
Reaction score
1,340
Location
Mid Michigan
Good alignment on the patch panel:thumbsup:. It is interesting what you find hidden in these cars of ours.


340challconvert

Well-Known Member
Joined
Feb 13, 2011
Messages
5,353
Reaction score
2,861
Location
Parsippany, NJ
A lot of trepidation on doing this!

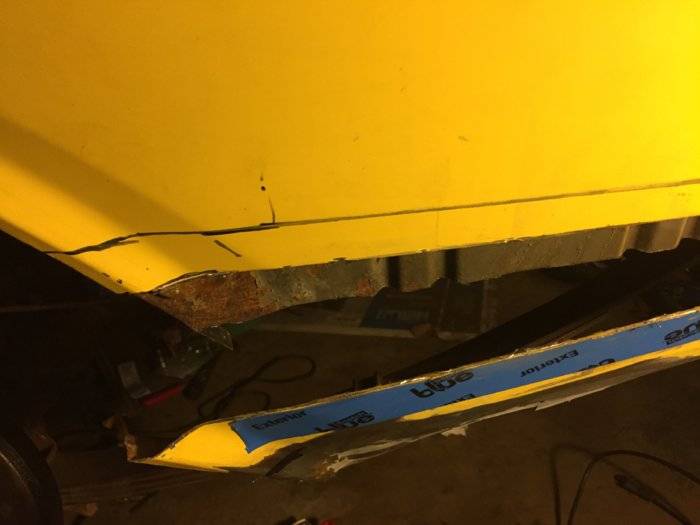

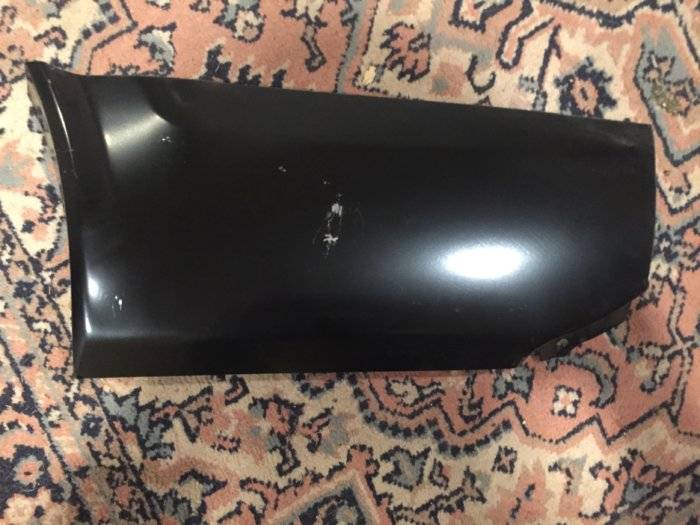

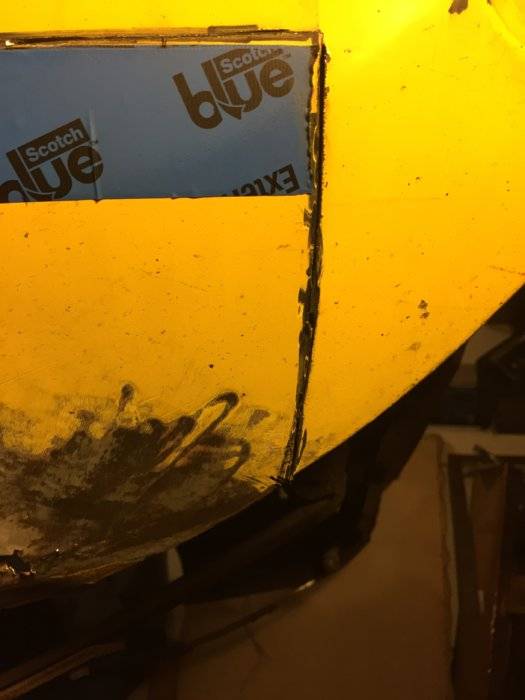

Measured and cut the bottom of the quarter panel area that was rotted out in getting ready to cut and fit the AMD panel. Only doing the bottom section of metal that was in poor condition.
New experience for me; I can do the mechanics but metal work and body work not my forte.
Taking my time and measuring more then twice. Will again create a template off of the cut panel. Worked well in creating the patch for the bottom of the left trunk extension.

Dino2 (1).gif








340challconvert

Well-Known Member
Joined
Feb 13, 2011
Messages
5,353
Reaction score
2,861
Location
Parsippany, NJ

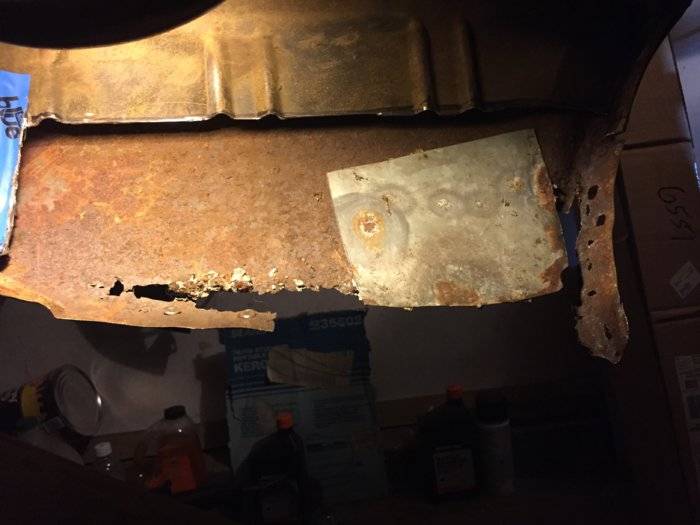

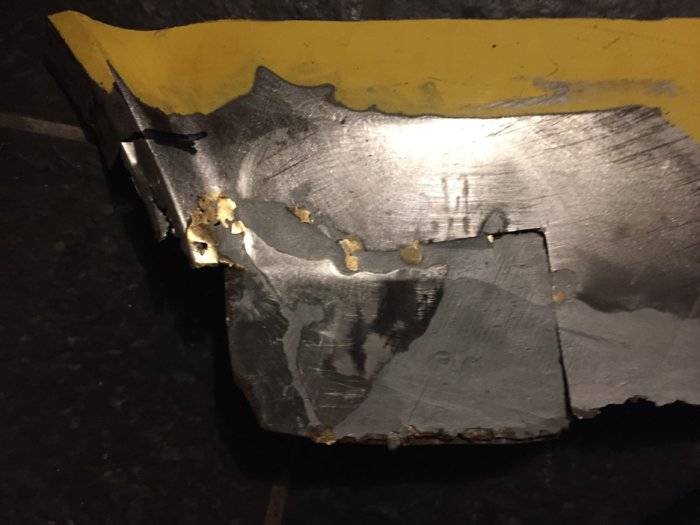

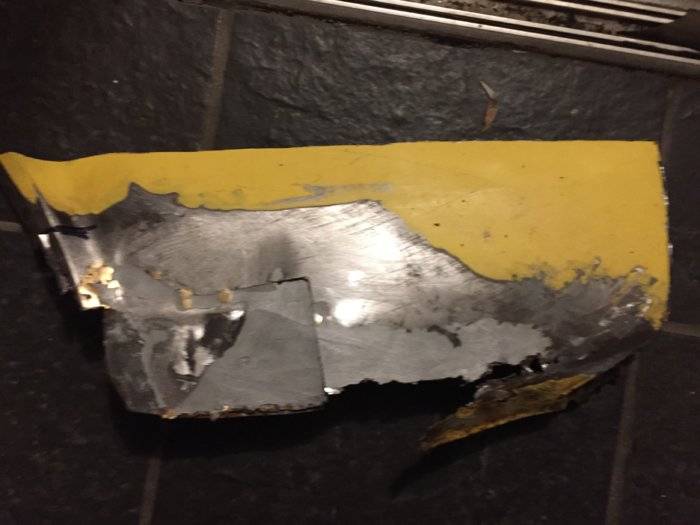

In cutting the bottom of the original quarter; someone prior to my ownership (1979) brazed a metal patch as a “backing plate” and covered the area with mud. Probably caused the rust damage at the bottom of the panel. Amazing that it needed a patch that early in it’s life.


moparlee

Well-Known Member
Joined
Jul 25, 2011
Messages
3,089
Reaction score
1,340
Location
Mid Michigan
Kinda funny isn't how metal repairs have gone from brazing to welding. Must have been that brazing took less know how vs welding. Heck, I even did a little bit of the yellow "welding":D


340challconvert

Well-Known Member
Joined
Feb 13, 2011
Messages
5,353
Reaction score
2,861
Location
Parsippany, NJ
Kinda funny isn't how metal repairs have gone from brazing to welding. Must have been that brazing took less know how vs welding. Heck, I even did a little bit of the yellow "welding":D
I use to braze muffler pipes. You can see what they "brazed"




Last edited:

340challconvert

Well-Known Member
Joined
Feb 13, 2011
Messages
5,353
Reaction score
2,861
Location
Parsippany, NJ
You’ll be an expert in no time:thumbsup:

Thanks. I don't know about "expert" just yet. I am getting more comfortable cutting up $175. AMD panels into patch panels!
Now I have to figure out how to best use Cleco Pins?
I understand there are fasteners that work well with butt welds?

Dino2 (1).gif

Last edited:

Joemoy29

Well-Known Member
Joined
May 22, 2017
Messages
120
Reaction score
42
Looking great. Where in NJ are you. My shop is in old bridge


Joemoy29

Well-Known Member
Joined
May 22, 2017
Messages
120
Reaction score
42
4k sqft with a couple lifts for my toys. It’s not a business just a money pit lol
